1315220000 - Compact IP20 4-Channel Remote I/O Module for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

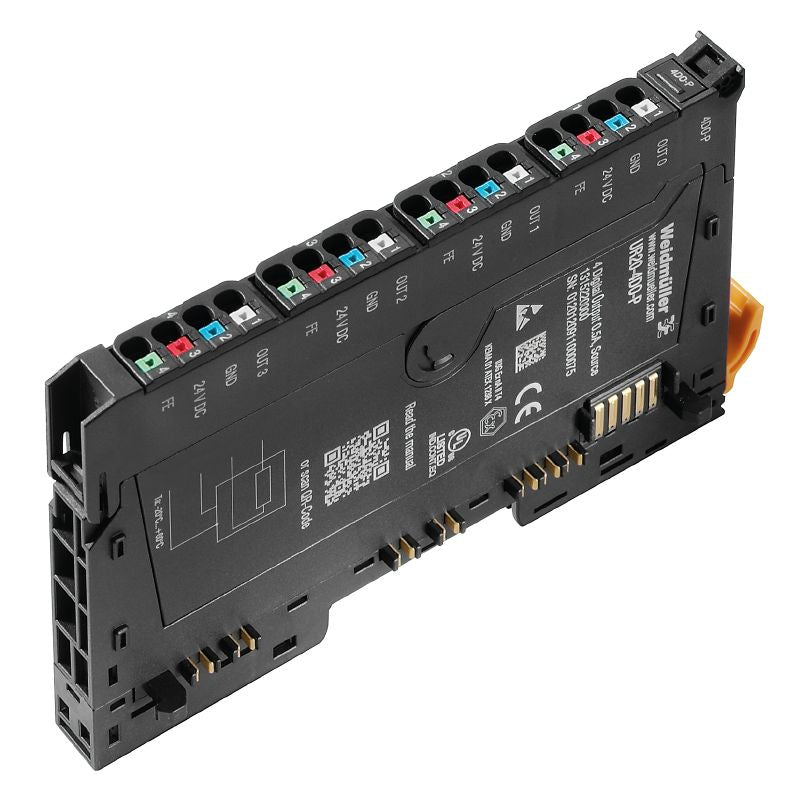

Introducing the UR20-4DO-P remote I/O module, expertly crafted for settings that demand reliable digital signal processing This compact unit is compliant with RoHS and certified by cULus, ensuring adherence to safety and environmental standards Designed specifically for IP20 applications, it supports 4 output channels, each capable of handling a maximum current of 2,000 mA Operating efficiently within a temperature range of -20 °C to +60 °C, the module utilizes PUSH IN wire connection technology for straightforward installation, accommodating a variety of wire cross-sectional dimensions.

Perfect for your automation needs, this module combines functionality and reliability in one compact package.

Features and Benefits:

•Compliant with RoHS and various environmental standards.

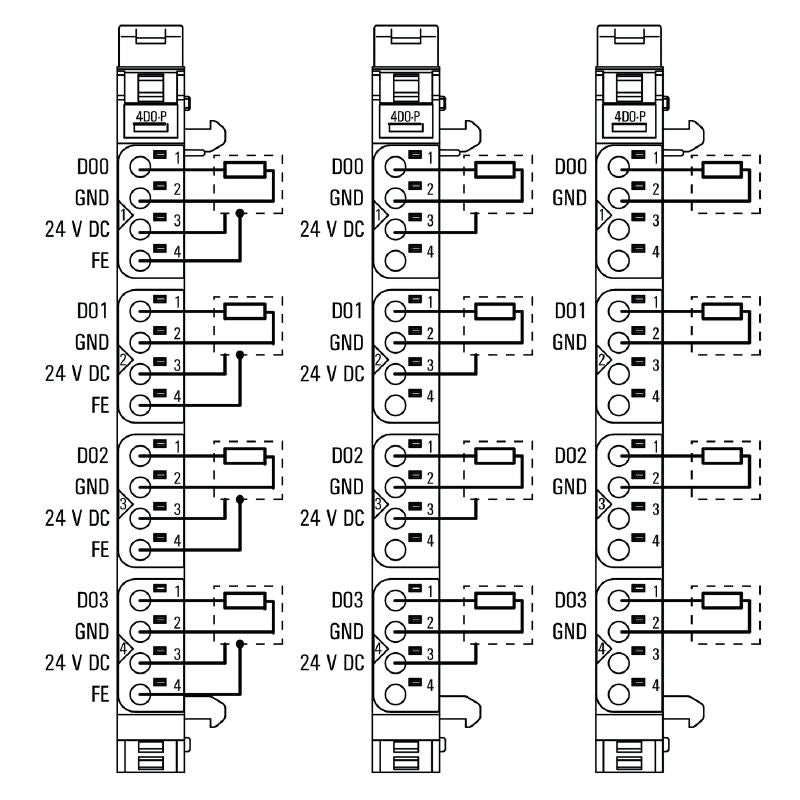

•PUSH IN wire connection for simplified installations.

•Diagnoses module functionality effectively.

•Short-circuit protection through thermal cut-out.

•Response time for high outputs is as fast as 100 µs.

Specifications:
