2566380000 - IP20 Remote I/O Coupler, 76mm Depth, Ethernet & PROFINET Support

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

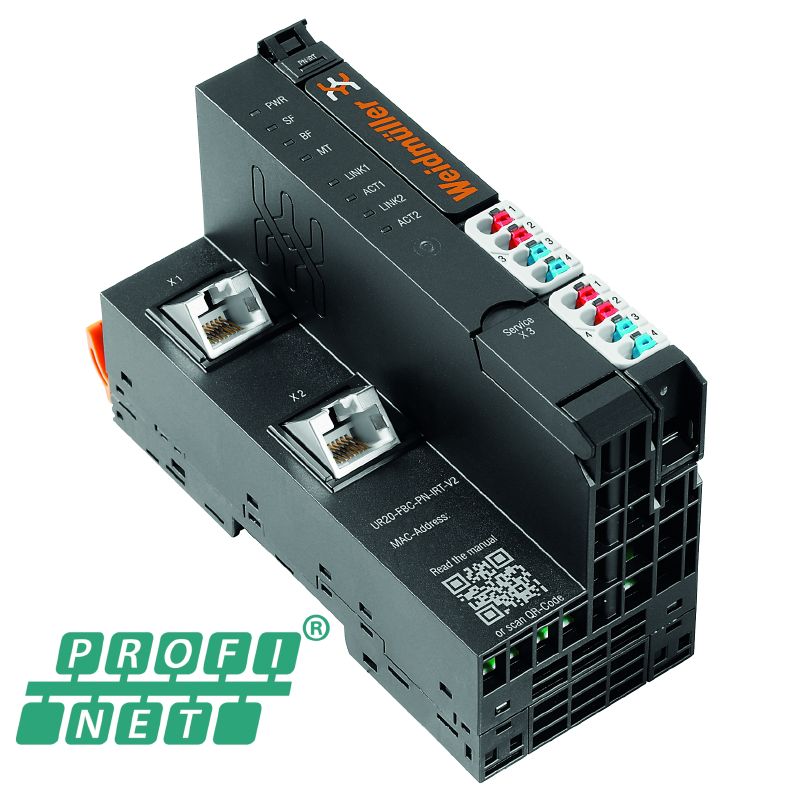

Introducing the UR20-FBC-PN-IRT-V2, a dependable Remote I/O fieldbus coupler that meets IP20 standards and is compatible with Ethernet and PROFINET IRT+RT This unit is RoHS compliant and carries UL certifications (E141197 and E223527), ensuring it meets industry safety and quality requirements With compact dimensions of 76 mm in depth, 120 mm in height, and 52 mm in width, it weighs only 247 g, making it an easy addition to your setup.

The coupler operates efficiently in temperatures ranging from -20 °C to 60 °C, and can be stored within a wider temperature span of -40 °C to 85 °C Designed for versatility, it features a PUSH IN type connection that accommodates a range of wire sizes, compatible with both solid and finely stranded wires This robust device performs well in humidity conditions of 10% to 95% and adheres to pressure specifications as per DIN regulations.

It also provides support for diagnostic data and various data transmission rates, enhancing its functionality for your networking needs.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Accommodates various wire cross sections.

•Supports both PROFINET IRT and RT protocols.

•Includes matching end brackets.

•Fast Startup capability.

•Supports redundancy protocols.

Specifications:
