Description:

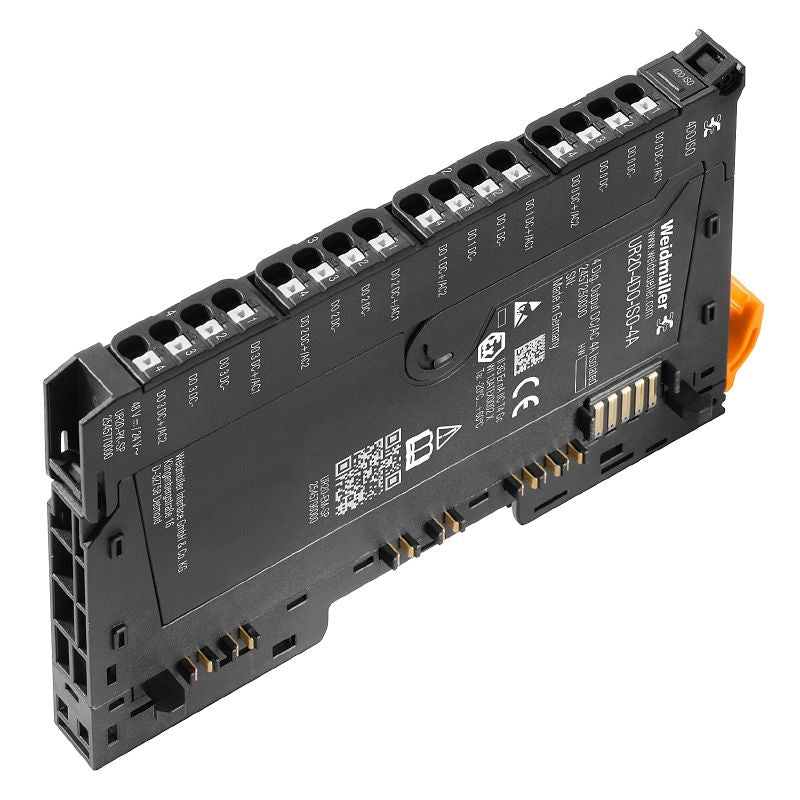

Introducing the UR20-4DO-ISO-4A remote I/O module, expertly crafted for seamless integration with digital signals This compact unit measures 115 mm in width, 120 mm in height, and 76 mm in depth, making it versatile for various installations, while its lightweight design of just 9141 grams ensures easy handling
Engineered for resilience, this module operates within a wide temperature range from -20 °C to +60 °C and can be stored safely from -40 °C to +85 °C.
It adheres to RoHS standards, emphasizing its eco-friendly design The module is specifically built to connect with 2-wire actuators and supports multiple field bus protocols, including PROFINET and Modbus/TCP, enhancing its adaptability in diverse applications.
Features and Benefits:
•Feedback-free operation.
•Individual channel diagnosis functionality.
•Module diagnosis capability.
•Short-circuit-proof circuitry.
•Immediate switch-off in case of short circuit.
•Thermic switch-off in case of overload.
•Galvanic isolation of 500 V DC between current paths.
•Protection restart only after a command from the control system.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 11.5 mm |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C...60 °C |
| Number of digital outputs | 4 |
| Output current per channel, max | 4 A |
| Output current per module, max | 10 A |
| Output voltage | max. 48 VDC / 24 VAC |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| Wire connection cross section, finely stranded, min | 0.14 mm² |
| Air humidity (operation) | 10% to 95%, non-condensing |
| Air humidity (storage) | 10% to 95%, non-condensing |
| Air pressure (operation) | ≥ 795 hPa |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL File Number | E141197 |
| Module type | Digital output module |
| Transmission speed of system bus, max | 48 Mbit |
