1315440000 - 16-Channel IP20 Remote I/O Module for Digital Outputs

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

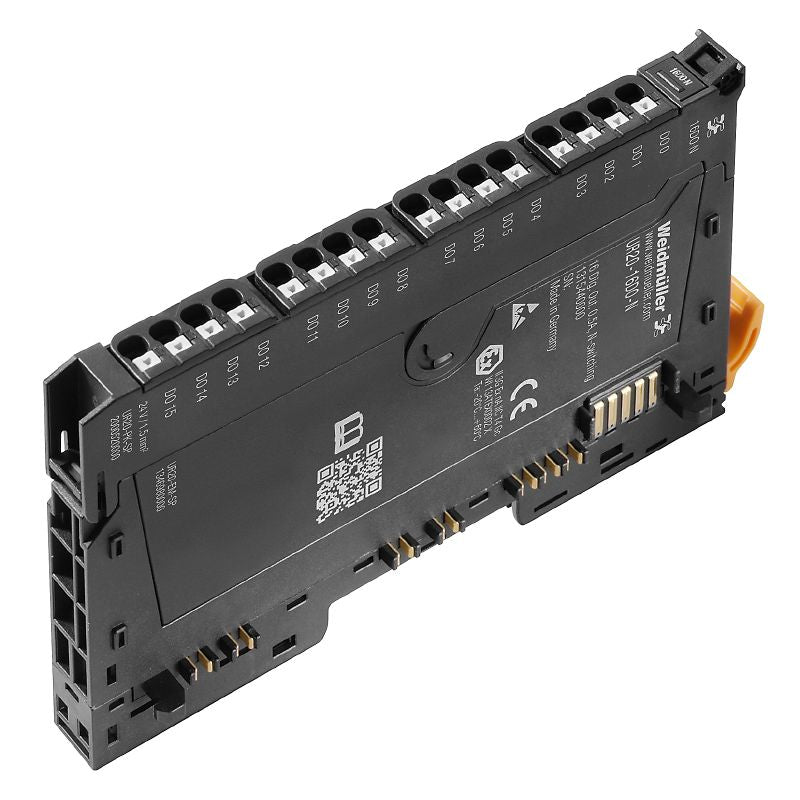

Introducing the UR20-16DO-N remote I/O module, expertly crafted for IP20 applications that manage digital signals This device offers a robust configuration with 16 output channels and boasts compliance with ROHS standards, along with certifications such as cULus Designed for operation in challenging environments, it functions effectively within a temperature range of -20 °C to 60 °C, and can withstand storage temperatures from -40 °C to 85 °C.

The module facilitates digital outputs using a single-conductor connection, ensuring seamless integration with actuators With an impressive response time—100 µs for high signals and up to 250 µs for low signals—it delivers reliable performance It supports current loads from 0 mA to a maximum of 8,000 mA based on specific application needs Additionally, the UR20-16DO-N is equipped with device diagnostics and includes built-in short-circuit protection, making it a dependable choice for your industrial applications.

Features and Benefits:

•Compliant with ROHS and REACH regulations.

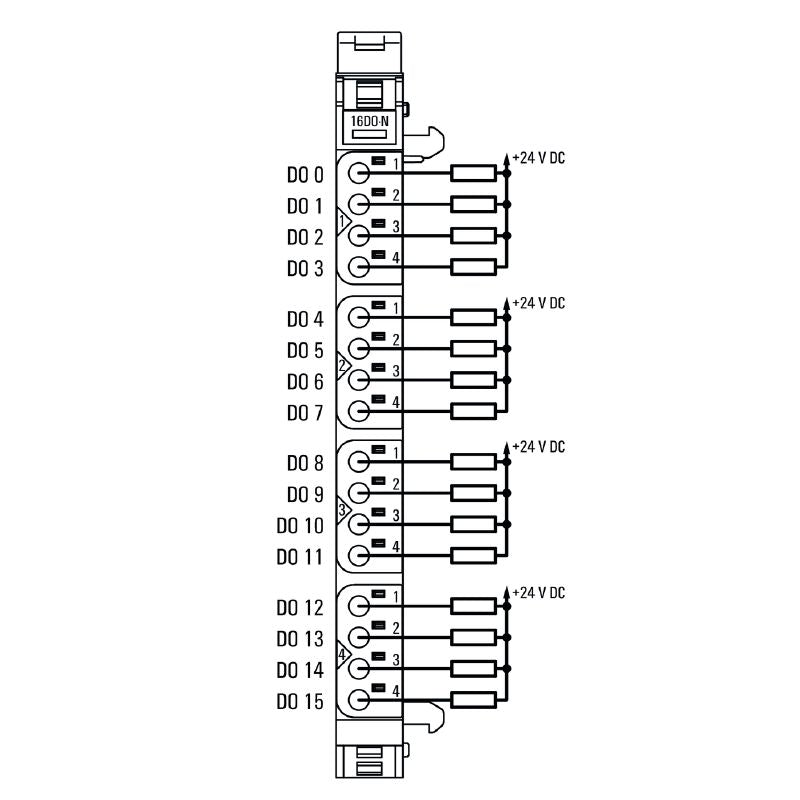

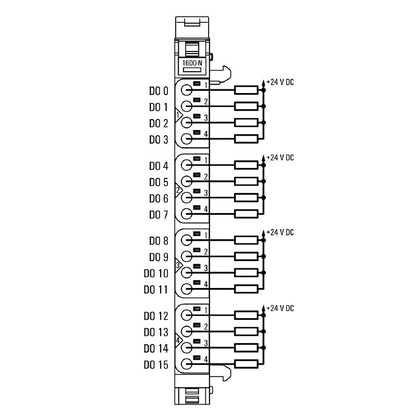

•Single-conductor actuator connection.

•Module diagnosis available.

•Short-circuit-proof with thermal cut-out.

Specifications:
