1315230000 - 4-Channel Remote I/O Module, 2A Output, Compact Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

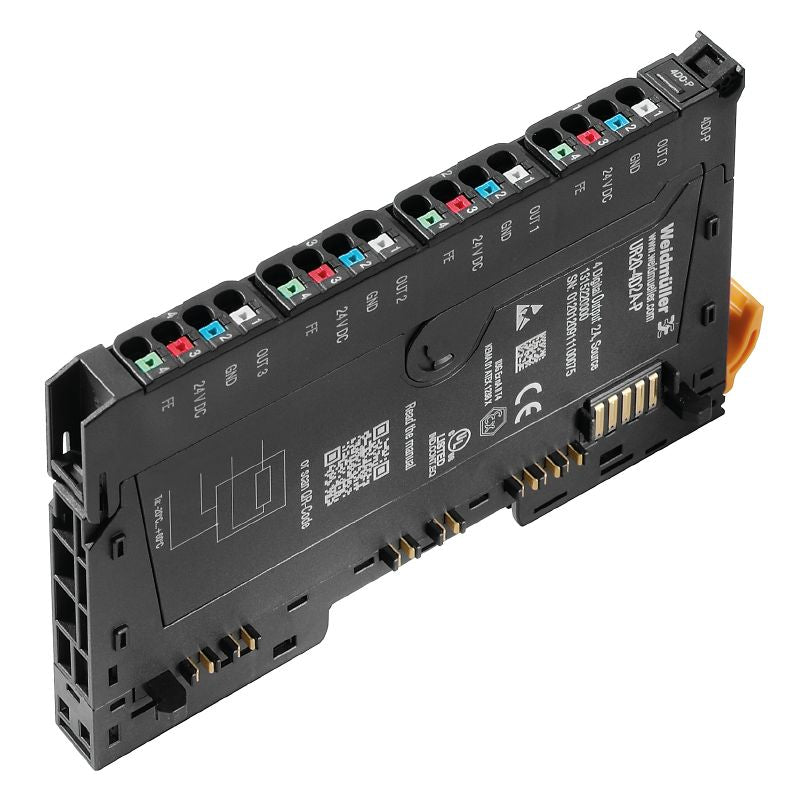

Introducing the UR20-4DO-P-2A remote I/O module, specifically engineered for managing digital signals This module is equipped with 4 output channels, each capable of delivering 2 A It proudly bears ROHS compliance and holds UL certifications (E141197 and E223527) Measuring 76 mm in depth, 120 mm in height, and 115 mm in width, this compact unit weighs only 85 g It adheres to RoHS standards and includes REACH SVHC listings for enhanced safety.

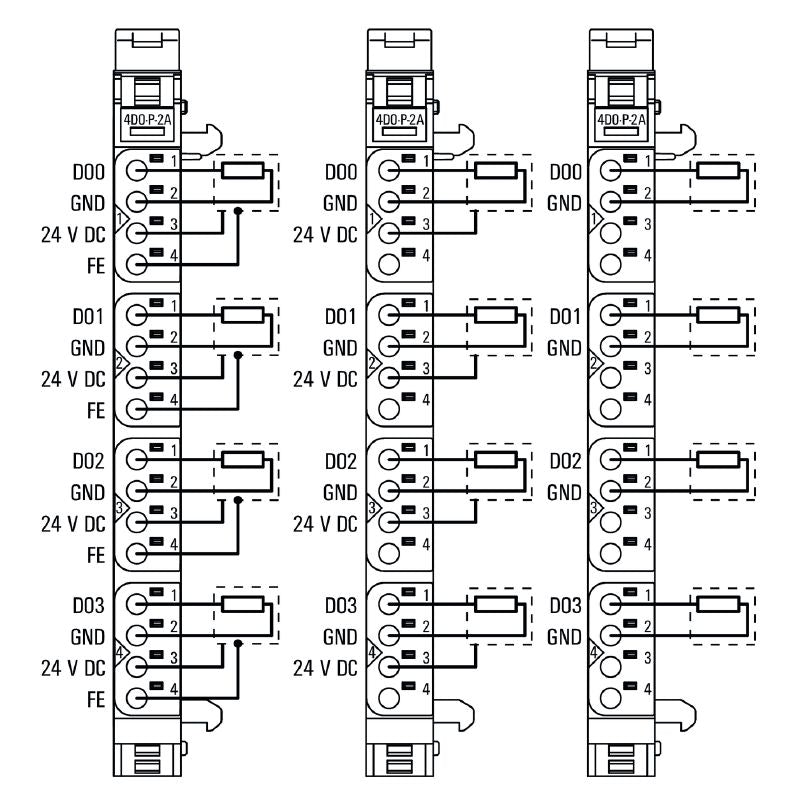

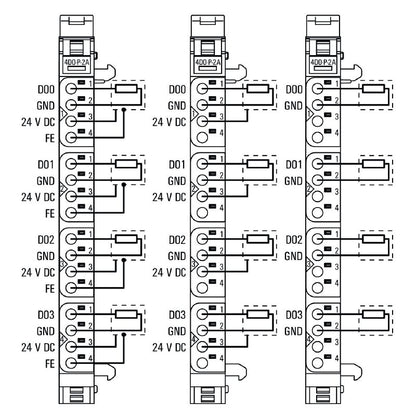

Designed to operate in diverse conditions, it functions within an impressive temperature range from -20 °C to 60 °C, with a storage allowance of -40 °C to +85 °C The module boasts a maximum output current of 8,000 mA and features individual channel diagnostics Although it does not support feedback-free operation, it accommodates various actuator connections with ease and utilizes a convenient push-in connection method.

Features and Benefits:

•Digital output module with 4 channels.

•Operating temperature range: -20 °C to 60 °C.

•Storage temperature range: -40 °C to +85 °C.

•Push-in type connection that simplifies installation.

Specifications:
