2453870000 - 4-Channel Analog Output Module, 76mm Deep for Remote I/O

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

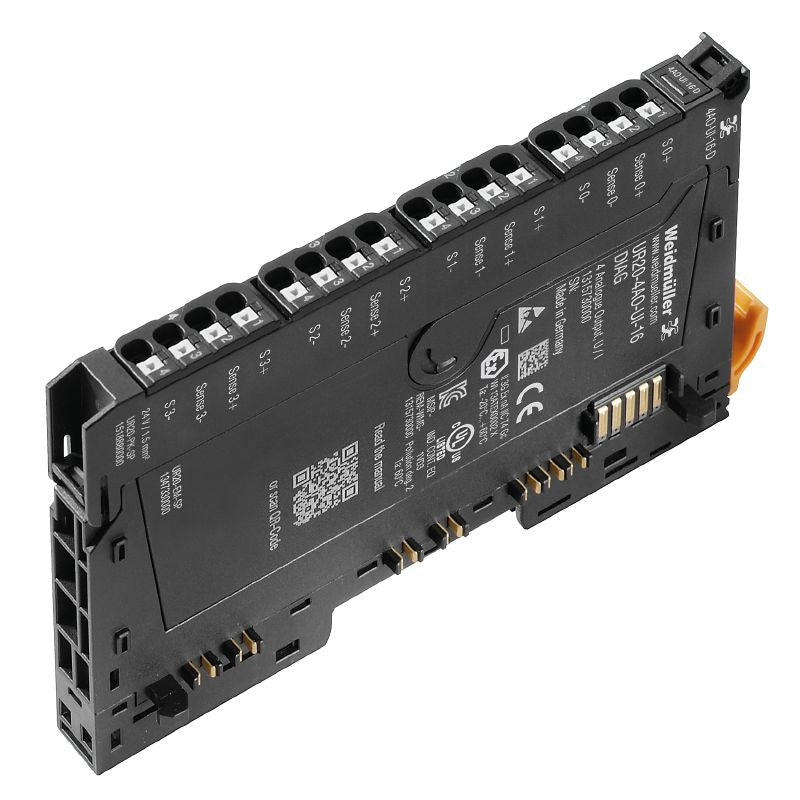

Introducing the UR20-4AO-UI-16-M-DIAG, an advanced analog output module perfect for remote I/O applications This module features 4 channels capable of transmitting both current and voltage signals, ensuring versatile performance It complies with RoHS directives and holds multiple UL certifications for quality assurance Compact in design, measuring 76 mm in depth, 120 mm in height, and 115 mm in width, it operates efficiently in temperatures ranging from -20 °C to 60 °C, and can withstand storage conditions as low as -40 °C.

Designed with functionality in mind, it offers short-circuit protection and individual channel diagnostics This module also supports standard connection types and various field bus protocols, making it an excellent choice for a wide range of industrial applications.

Features and Benefits:

•Compliant with RoHS and cULus standards.

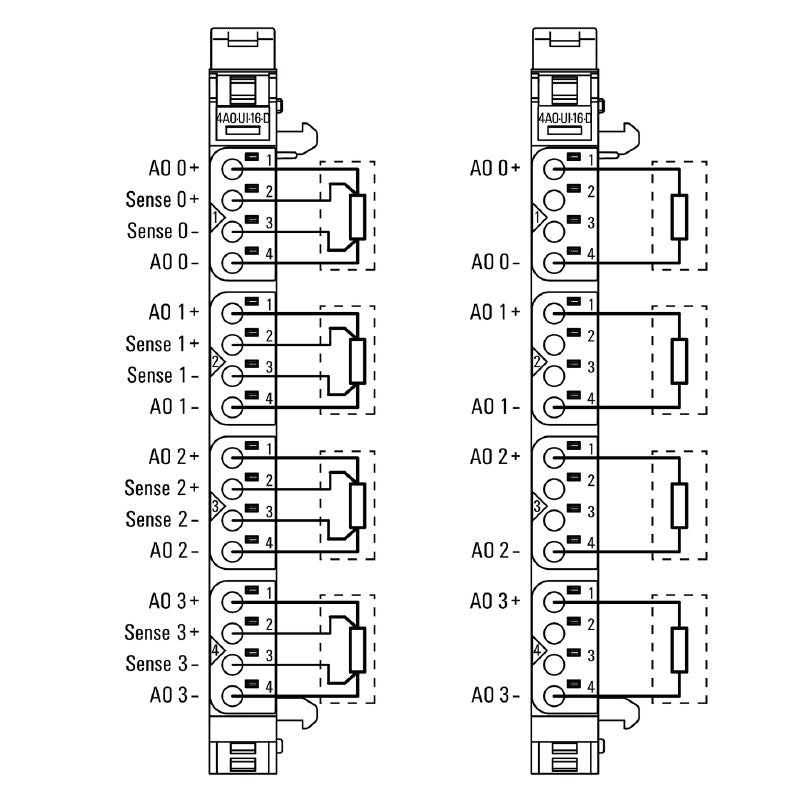

•Supports automatic detection with 2-wire actuator connections.

•Short-circuit proof and monotonic.

•Individual channel diagnosis capability.

•Low cross-talk between channels.

•Remote I/O applications in industrial settings.

•Monitoring and controlling voltage and current signals.

Specifications:
