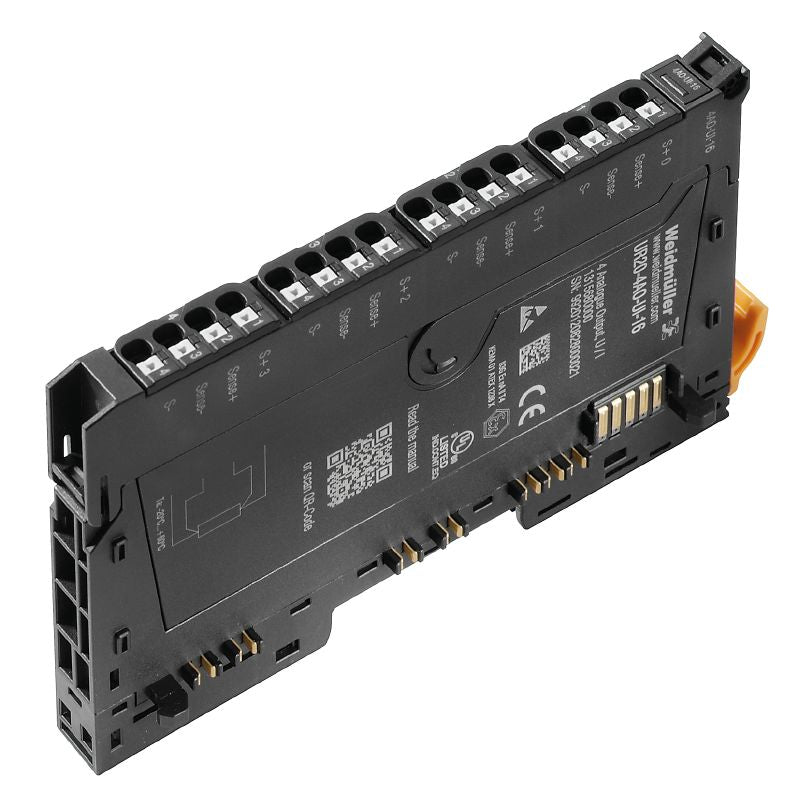

2453880000 - IP20 Rated 4-Channel Analog I/O Module for Current/Voltage

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UR20-4AO-UI-16-M Remote I/O module, built for exceptional performance in analog signal applications This IP20-rated module features 4 channels capable of handling both current and voltage outputs Its automatic detection capability simplifies setup, while it carries essential certifications, including cULus with certificate numbers E141197 and E223527 This module is engineered to withstand temperatures during storage from -40°C to +85°C, and operates reliably in environments ranging from -20°C to 60°C.

Optimize your system’s functionality with this dependable and versatile module.

Features and Benefits:

•RoHS compliant with exemption.

•Low load impedance for voltage output.

•High precision with maximum error of ±0.1% FSR.

•Monotonic output behavior.

•Short-circuit protection.

•Easy wiring with PUSH IN connection type.

•Compatible with various field bus protocols including PROFINET and Modbus/TCP.

Specifications:
