Description:

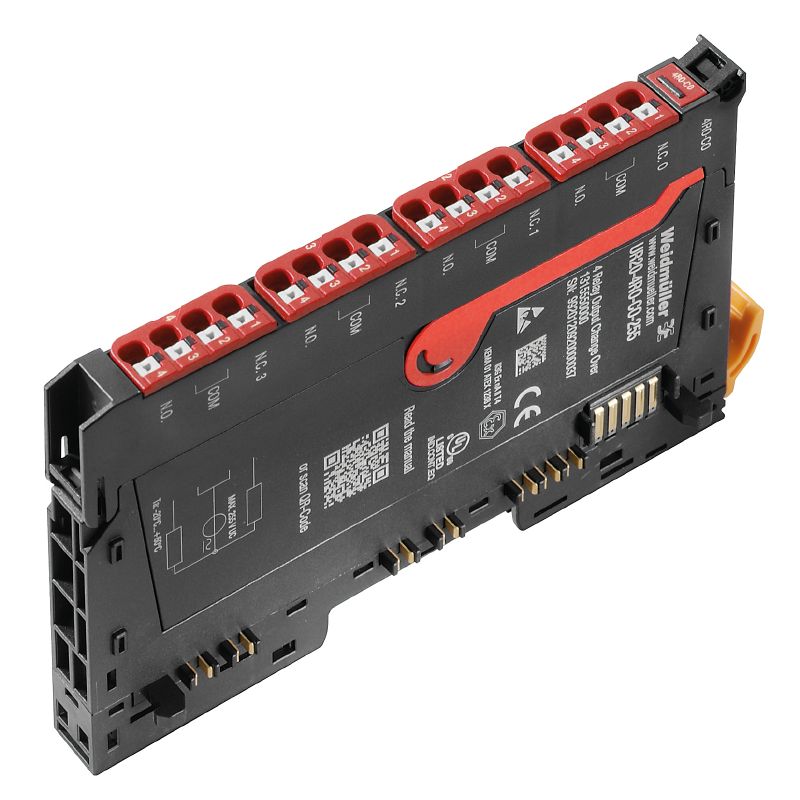

Introducing the UR20-4RO-CO-255 remote I/O module, expertly engineered for IP20 applications, focusing on digital signal management with relay outputs This reliable module is RoHS compliant and proudly carries two UL certifications, ensuring it meets stringent safety and environmental standards Measuring 76 mm deep, 120 mm tall, and 115 mm wide, it operates effectively within temperatures ranging from -20 °C to 60 °C.
This digital output module boasts a maximum switching frequency of 5 Hz, with the capability to manage output currents of up to 24 A per module and 6 A per channel It supports a variety of field bus protocols, offering flexible connectivity options via its user-friendly push-in connection style Enhance your automation solutions with this versatile and compliant device.
Features and Benefits:
•Compact design suitable for installation in limited spaces.
•Feedback-free operation for simpler diagnostics.
•Supports multiple field bus protocols for flexibility.
•Compliant with environmental product regulations.
Specifications:
| Depth (mm) | 76 |
| Height (mm) | 120 |
| Width (mm) | 11.5 |
| Storage Temperature | -40 °C ... +85 °C |
| Operating Temperature | -20 °C...60 °C |
| Max. Switching Voltage | 255 V AC, UL: 277 V AC, DC |
| Output Current Per Channel, Max | 6 A |
| Output Current Per Module, Max | 24 A |
| Air Humidity (Operation) | 10% to 95%, non-condensing |
| Supply Voltage | 24 V DC +20 %/ -15 % |
| Connection Type | PUSH IN |
| Field Bus Protocol | PROFINET IRT, PROFINET RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link |
| Galvanic Isolation | 500 V DC between the current paths |
