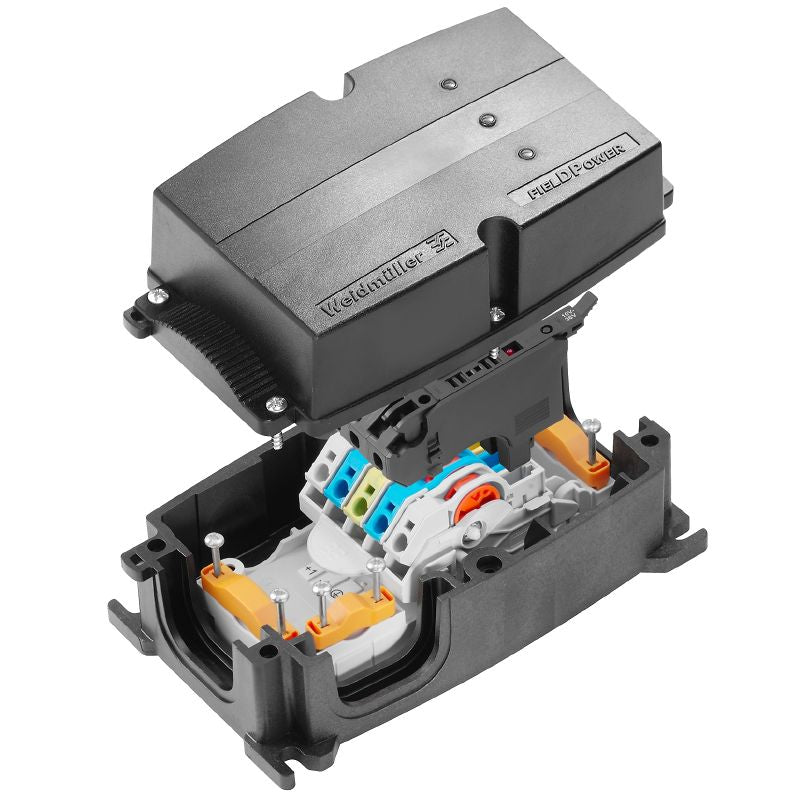

8000007924 - IP65 DC Power Distribution Box with Fuse
8000007924 - IP65 DC Power Distribution Box with Fuse
SKU: SKU: 8000007924 Download PDF
- 8000007924 - IP65 DC Power Distribution Box with Fuse
- 8000007924 - IP65 DC Power Distribution Box with Fuse
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the FieldPower power distribution box, expertly crafted for direct current (DC) applications With an impressive IP65 protection rating, this robust box guarantees resistance to dust and water Made from durable glass-fiber reinforced polycarbonate, it ensures strength and reliability The innovative insulation displacement connection method enhances its functionality, and it comes complete with a fuse for added safety.
This distribution box is an essential solution for all your DC power needs.
Features and Benefits:
•Constructed from glass-fiber reinforced polycarbonate.
•Insulation displacement connection.
•Fuse included.
•IP65 protection rating.
Specifications:

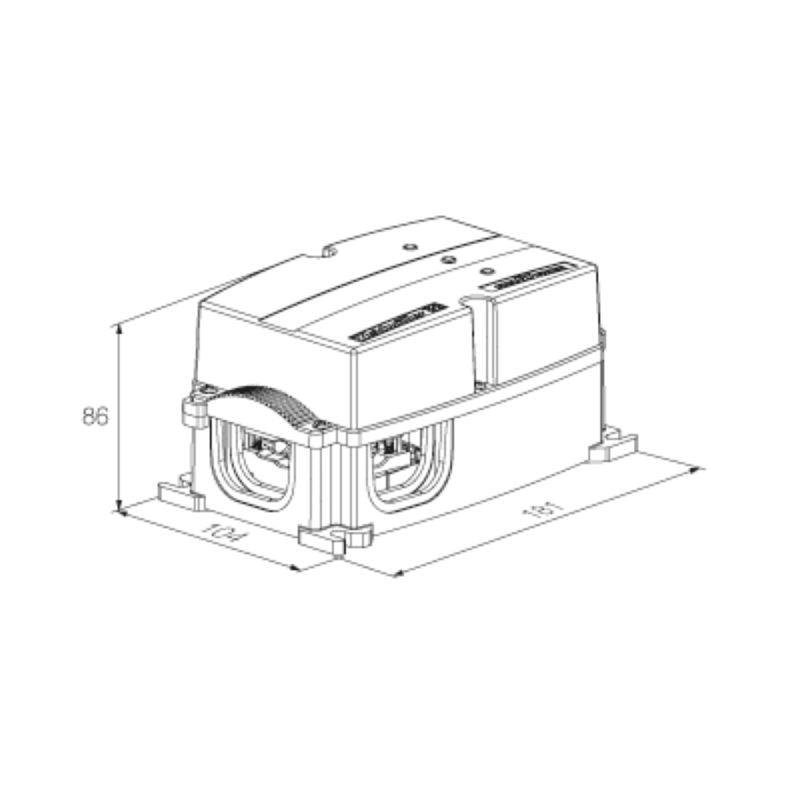

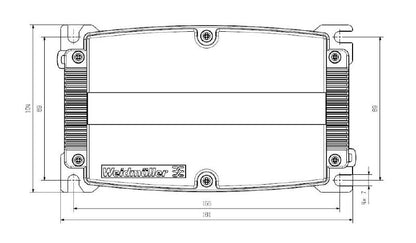

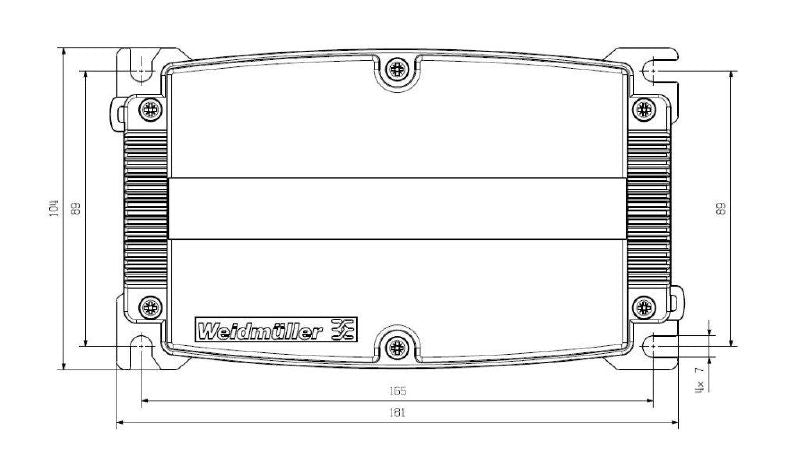

| Dimensions | Depth 86 mm (3.386 inch), Width 104 mm (4.094 inch) |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Protection degree | IP65 |
| Number of poles | 5 |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Rated voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Cartridge fuse | 6.3 x 32 mm (1/4 x 1 1/4) |
| Torque for lid screws | 2 Nm |
| UL 94 flammability rating | 5VA |
