Description:

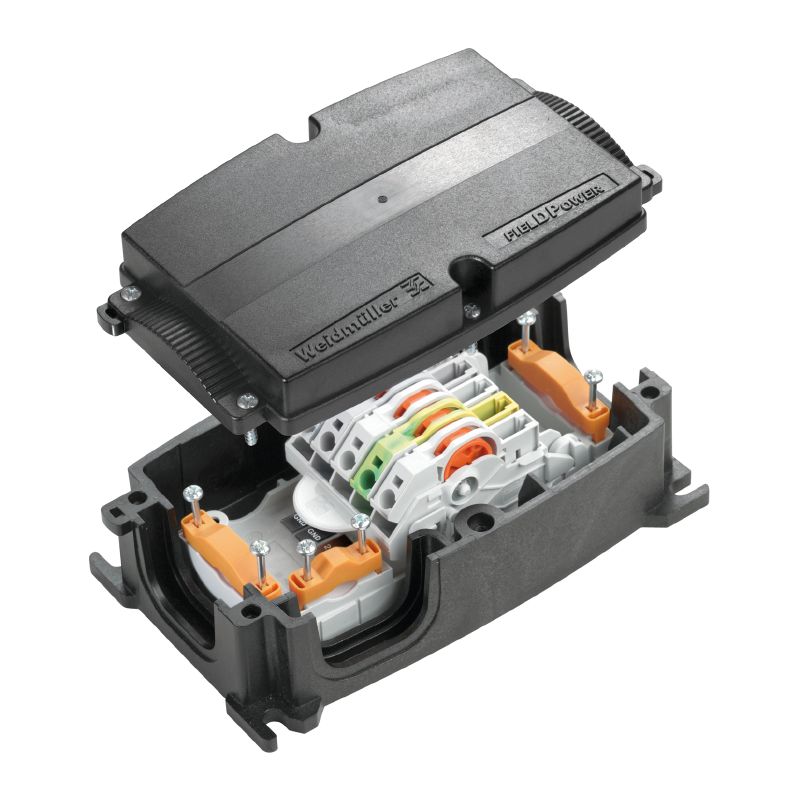

Enhance your outdoor power solutions with the FieldPower power distribution box, engineered for durability and performance With an IP65 rating, this box is made from glass-fibre reinforced polycarbonate, providing excellent resistance to the elements It features advanced PUSH IN and insulation displacement connection (IDC) technology, ensuring reliable and secure electrical connections for all your needs.
Features and Benefits:
•IP65 protection degree.
•Constructed from glass-fibre reinforced polycarbonate.

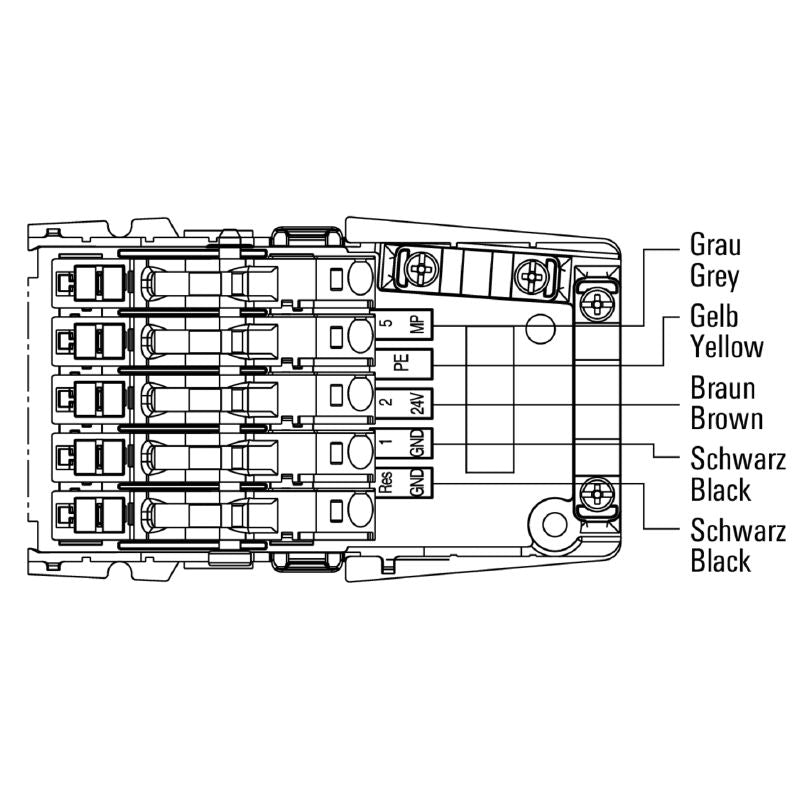

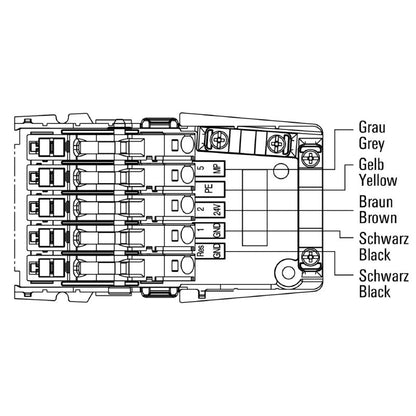

•PUSH IN wire connection method.
•Insulation displacement connection (IDC) technology.
•Capable of housing up to 5 poles.
•Compliant with RoHS without exemptions.

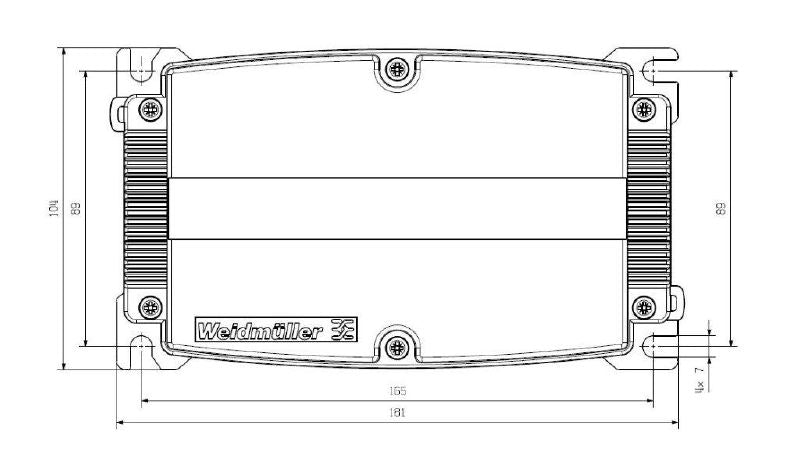

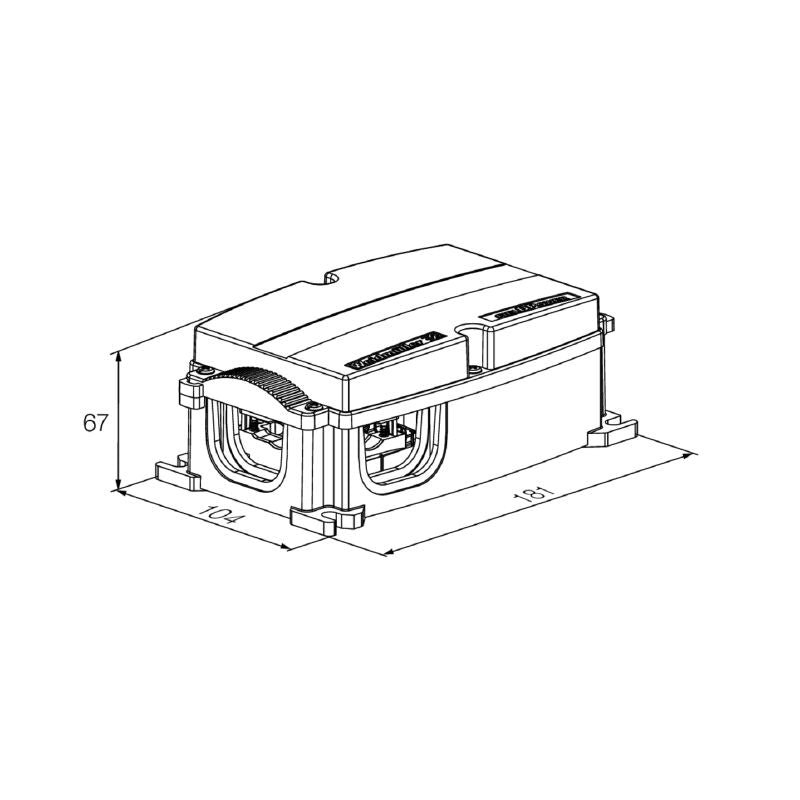

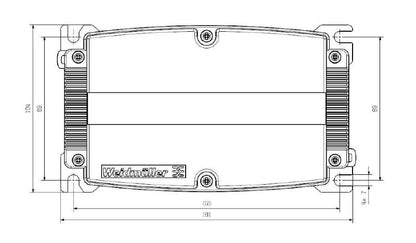

Specifications:
| Depth | 67 mm |
| Height | 181 mm |
| Width | 104 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 55 °C |
| Rated voltage (IEC) | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| UL 94 flammability rating | 5VA |
| Conductor connection cross-section, solid, max. | 6 mm² |
| Conductor connection cross-section, solid, min. | 1.5 mm² |
| Conductor connection cross-section, stranded, max. | 6 mm² |
| Conductor connection cross-section, stranded, min. | 0.5 mm² |
| Conductor connection cross-section, finely stranded, max. | 10 mm² |
| Conductor connection cross-section with wire end ferrule type | 12 mm with plastic collar |
| Rated current | 30 A |
