4324010000 - EPDM Sealing Insert, IP65, 18mm Depth for Field Power (Pack of 10)
4324010000 - EPDM Sealing Insert, IP65, 18mm Depth for Field Power (Pack of 10)
SKU: SKU: 4324010000 Download PDF
- 4324010000 - EPDM Sealing Insert, IP65, 18mm Depth for Field Power (Pack of 10)
- 4324010000 - EPDM Sealing Insert, IP65, 18mm Depth for Field Power (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

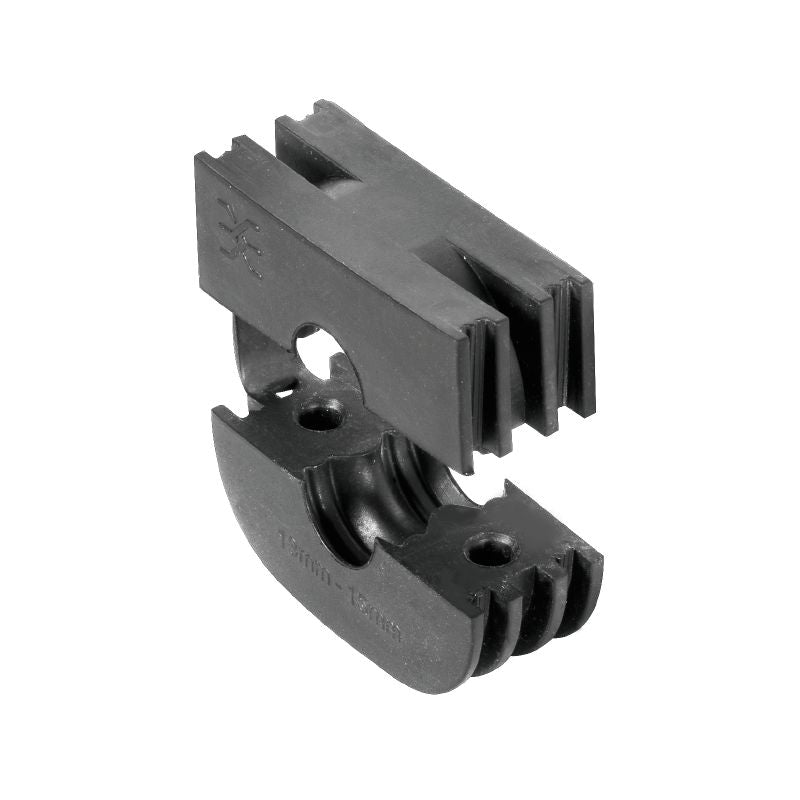

Introducing the RKDG D17 PT6 sealing insert, specifically engineered for Field Power applications This innovative product boasts a foldable seal and achieves an IP65 rating when paired with the correct housing or enclosure Crafted from EPDM material, it is RoHS compliant and free from SVHC substances exceeding 01 wt% With dimensions measuring 18 mm in depth, 338 mm in height, and 467 mm in width, it has a net weight of 22.
8 g The RKDG D17 PT6 performs optimally within a temperature range of -40 °C to 85 °C, making it a reliable choice for various environments.
Features and Benefits:
•Field Power sealing insert.
•Foldable seal.
•IP65 with corresponding housing.
•Compliant with RoHS.
•No SVHC above 0.1 wt%.
•Used in Field Power sealing slot.
Specifications:
| Depth | 18 mm |
| Height | 33.8 mm |
| Width | 46.7 mm |
| Net weight | 22.8 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Basic material | EPDM |
| Silicone | No |
| Protection degree | IP65 with corresponding housing |
| UL 94 flammability rating | HB |
| Outer cable diameter, min | 15 mm |
| Outer cable diameter, max | 17 mm |
| Line type | round |
