Description:

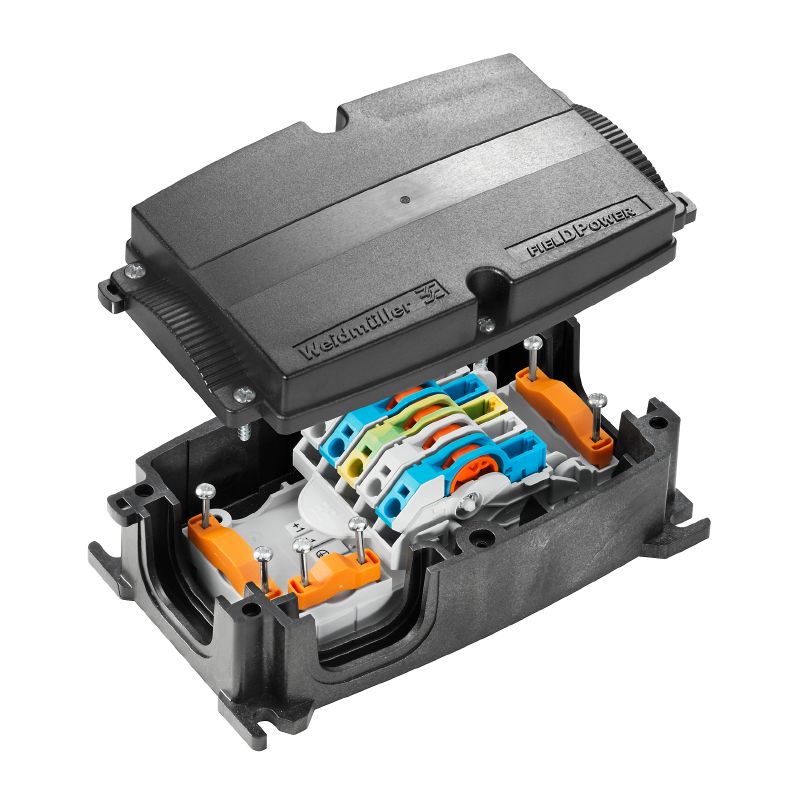

Introducing the FieldPower DC power distribution box, expertly designed to deliver reliable performance with an IP65 rating for water and dust protection Constructed from durable glass-fibre reinforced polycarbonate, this box ensures longevity and resilience It utilizes an insulation displacement connection (IDC) with an easy PUSH IN connection method for simple installation Fully compliant with RoHS regulations, this product meets high environmental standards and is ready for immediate use.
Features and Benefits:
•Constructed from glass-fibre reinforced polycarbonate.
•PUSH IN connection method.
•Compliant with RoHS regulations.
•Power distribution.
Specifications:

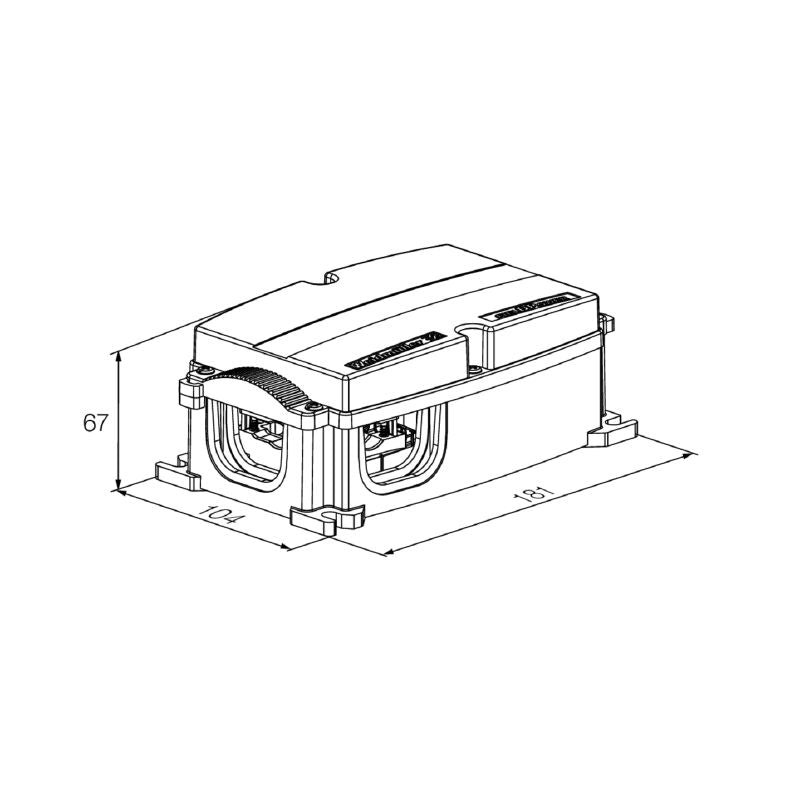

| Depth | 67 mm |
| Height | 181 mm |
| Width | 104 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 55 °C |
| Protection degree | IP65 |
| UL 94 flammability rating | 5VA |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Number of poles | 5 |
| Conductor connection cross-section, solid, max | 6 mm² |
| Conductor connection cross-section, stranded, max | 6 mm² |
| Conductor connection cross-section, finely stranded, max | 6 mm² |
| Conductor connection cross-section, finest stranded, max | 6 mm² |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 30 A |
