Description:

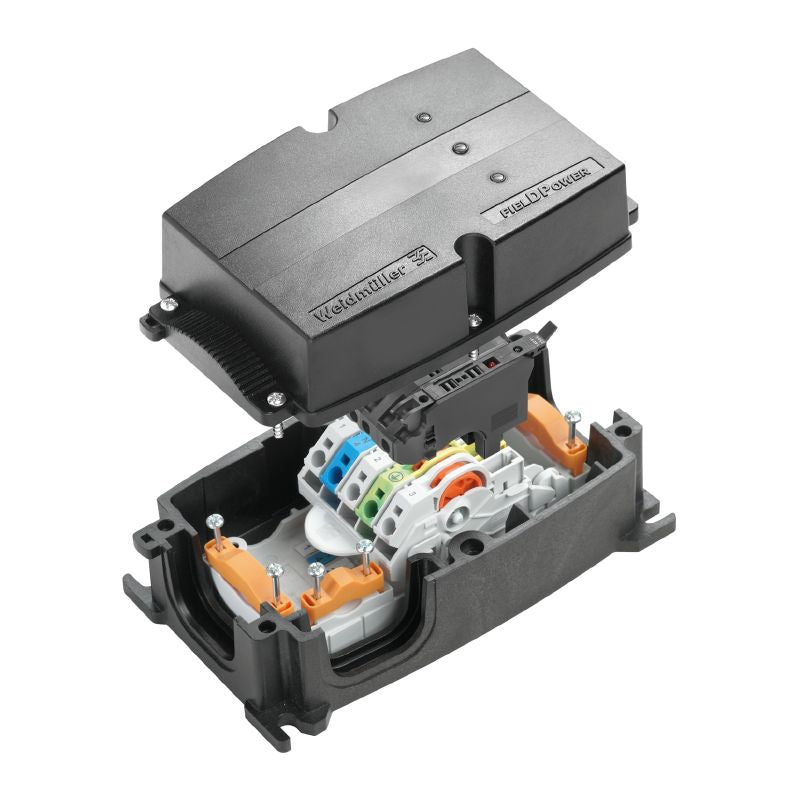

Introducing the FieldPower power distribution box, expertly designed for AC operation This robust unit is made from glass-fiber reinforced polycarbonate, ensuring durability and resilience with an IP65 rating for dust and water resistance It is equipped with a PUSH IN insulation displacement connection (IDC) for easy setup, and includes an integrated fuse for added safety Whether for industrial use or construction, this distribution box combines functionality with strength for reliable performance.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Includes lid screws for secure installation.

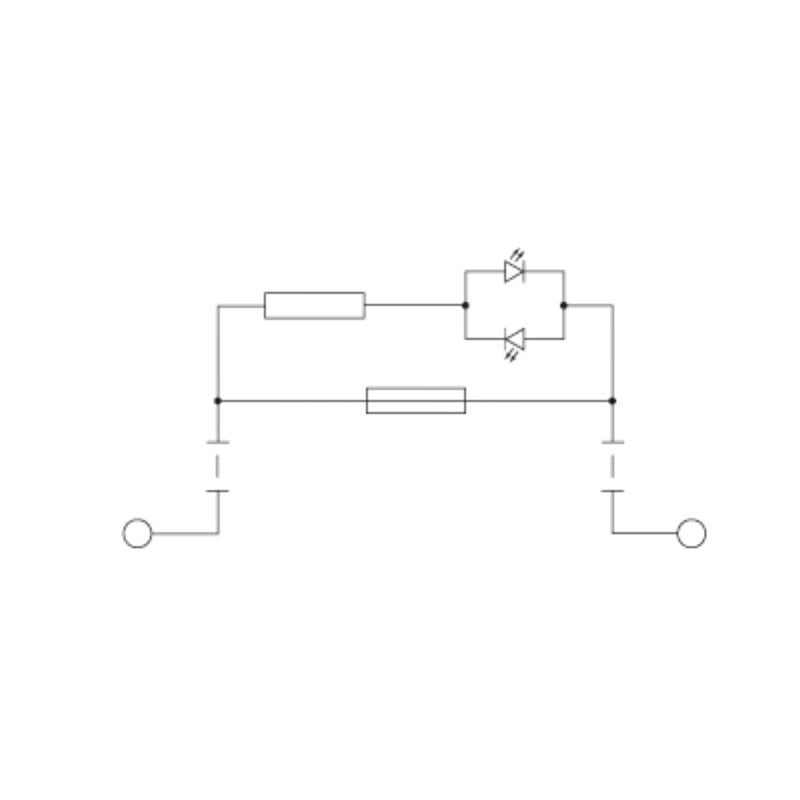

•Fitted with a failure indicator shown by a red LED.
•Modifiable for coding.
•Equipped with pivoting fuse holders.
Specifications:

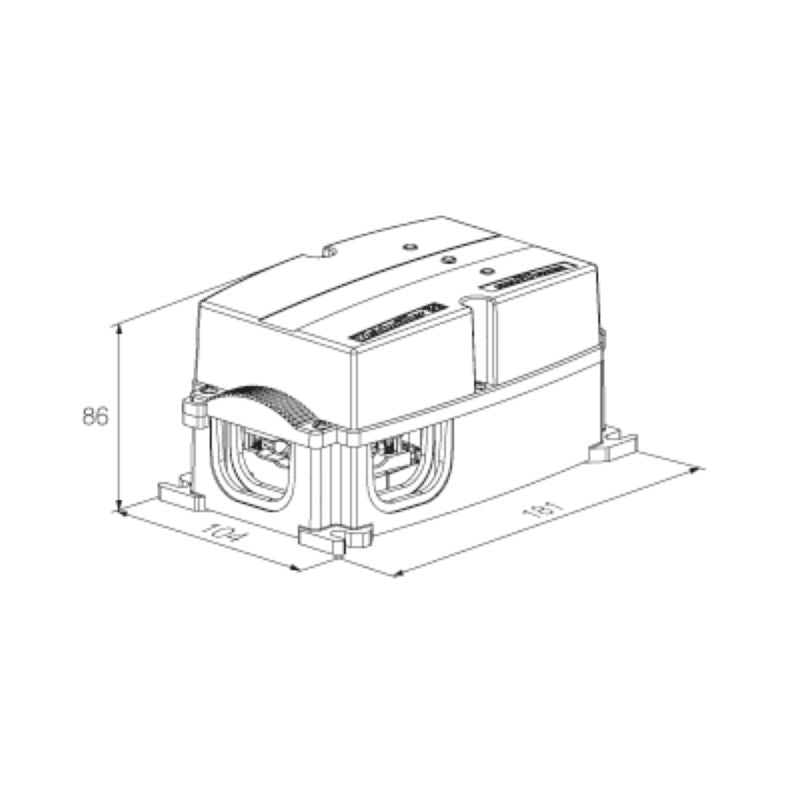

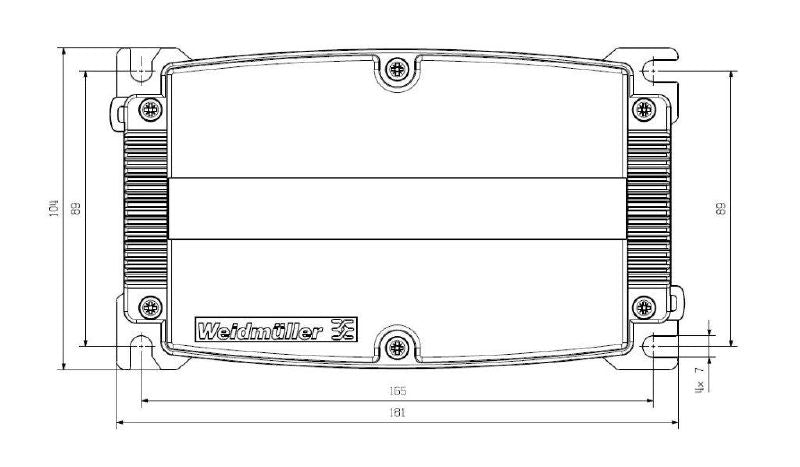

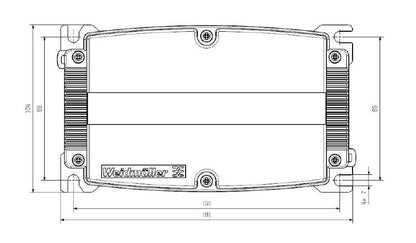

| Depth | 86 mm |
| Height | 181 mm |
| Width | 104 mm |
| Rated voltage (Contact element) | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Rated voltage (Fuse plug) | 600 V |
| Rated current (Fuse plug) | 20 A |
| Protection degree | IP65 |
| Number of poles | 5 |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
