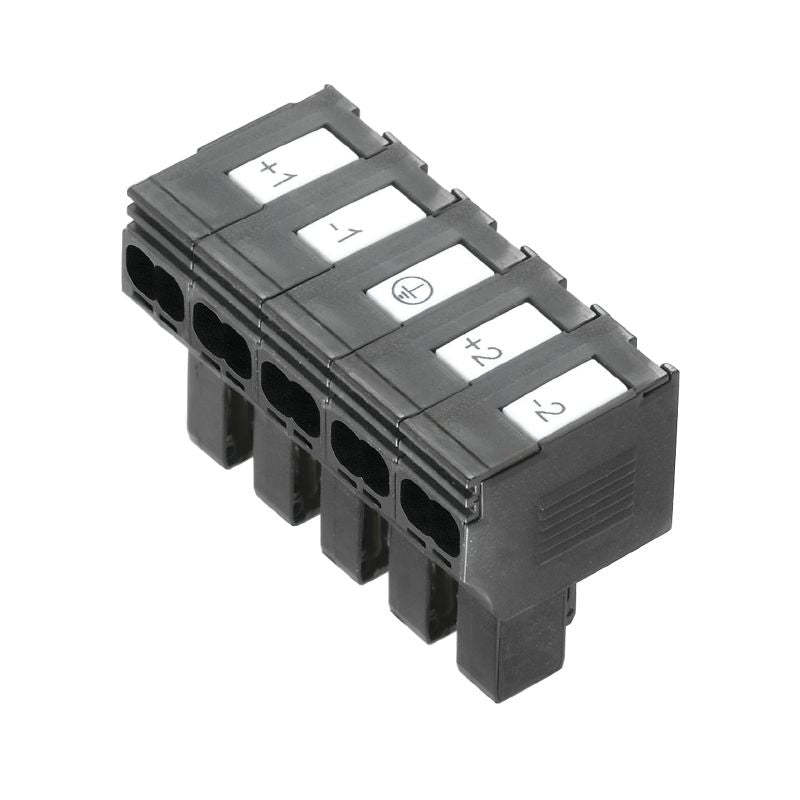

1009990000 - 10-Pole IP20 DC Connector for 0.5-4mm² Wires (Pack of 10)
1009990000 - 10-Pole IP20 DC Connector for 0.5-4mm² Wires (Pack of 10)
SKU: SKU: 1009990000 Download PDF
- 1009990000 - 10-Pole IP20 DC Connector for 0.5-4mm² Wires (Pack of 10)
- 1009990000 - 10-Pole IP20 DC Connector for 0.5-4mm² Wires (Pack of 10)
Couldn't load pickup availability
Description:

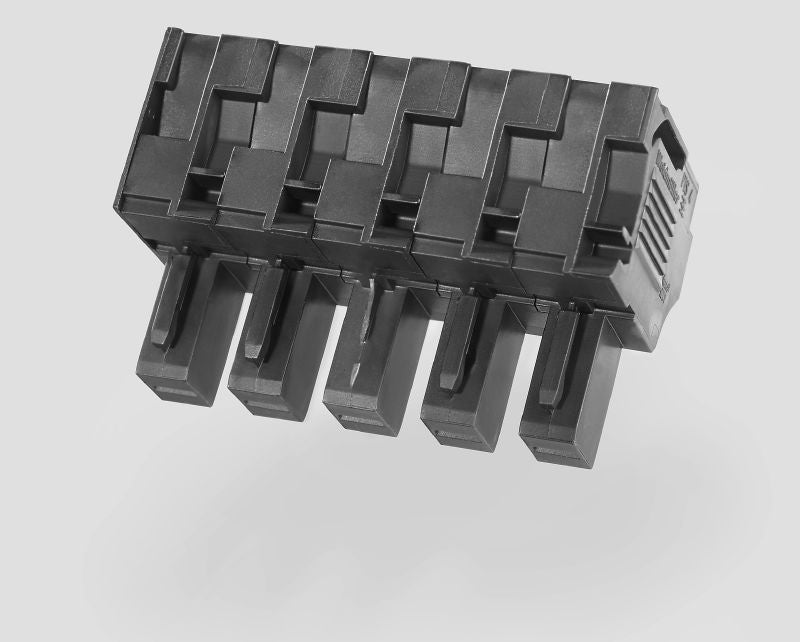

Introducing the PTDS 4 DC plugin connector, expertly crafted for direct current applications Constructed from durable polyamide, it offers reliable IP20 protection This connector features a total of 10 pole connections, divided into two sets of five It meets RoHS compliance standards, certified under number E60693 It accommodates wire connection areas from 05 mm² to 4 mm², suitable for both stranded and solid wires.
With an impressive operating temperature range of -40 °C to 80 °C, and a storage temperature capacity of -40 °C to 85 °C, this connector is built to perform in challenging environments.
Features and Benefits:
•Compliant with RoHS without exemption.
•Two-pole connector with a capacity for five connections each.
•Rated for a maximum current of 32 A when using 3 loaded poles.
•Suitable for use with UL-listed TC-ER cables.
•Can be coded for secure connections.
•Plugged mounting type.
Specifications:

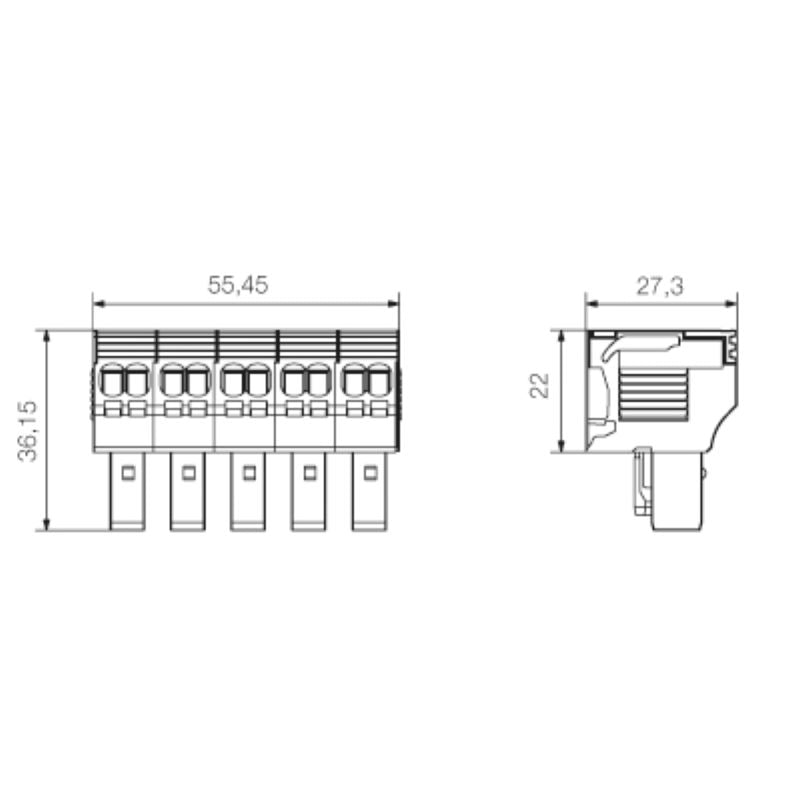

| Depth | 36.15 mm |
| Height | 27.3 mm |
| Width | 55.45 mm |
| Insulating material | Polyamide |
| Protection degree | IP20 |
| Rated voltage (IEC) | 690 V |
| Rated current (3 loaded poles) | 32 A |
| Rated current (4 loaded poles) | 25 A |
