Description:

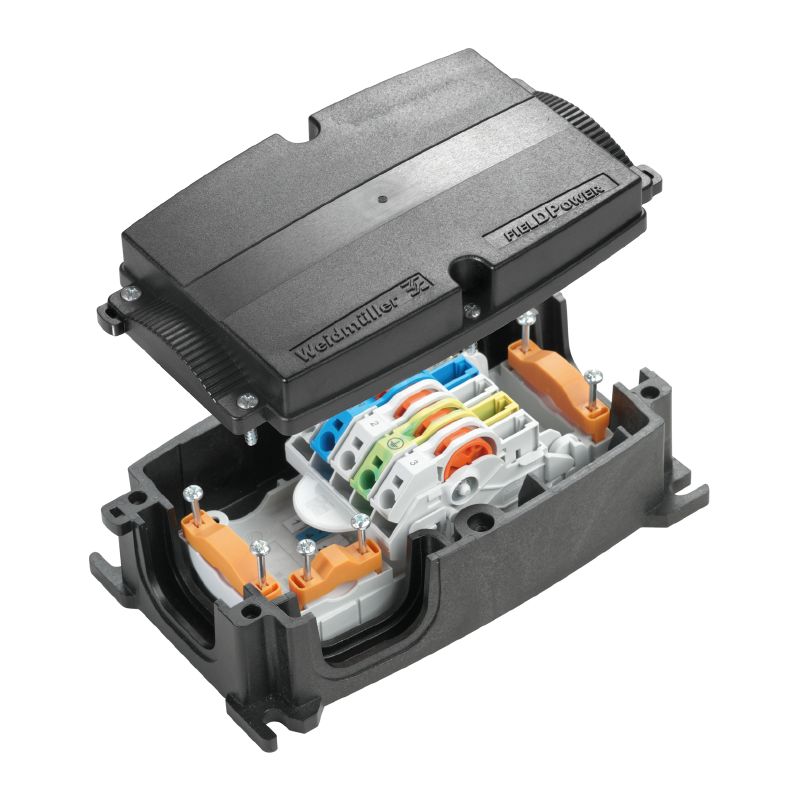

Introducing the FP BOX, a versatile power distribution enclosure ideal for AC applications and boasting an impressive IP65 rating for optimal protection Crafted from durable glass-fibre reinforced polycarbonate, this enclosure features insulation displacement connections (IDC) and PUSH IN terminals, making electrical wiring both efficient and straightforward Compliant with RoHS standards, it guarantees freedom from hazardous substances.

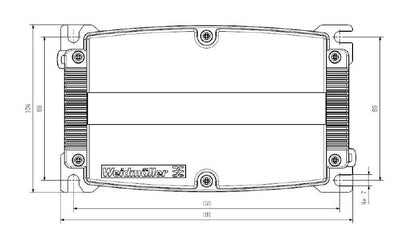

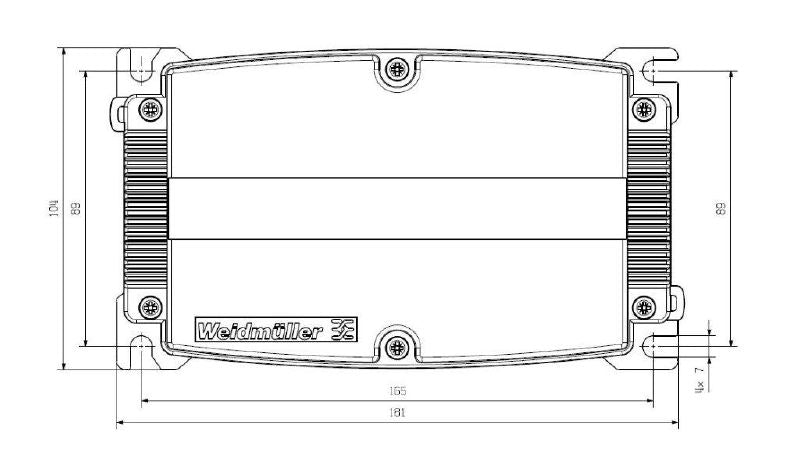

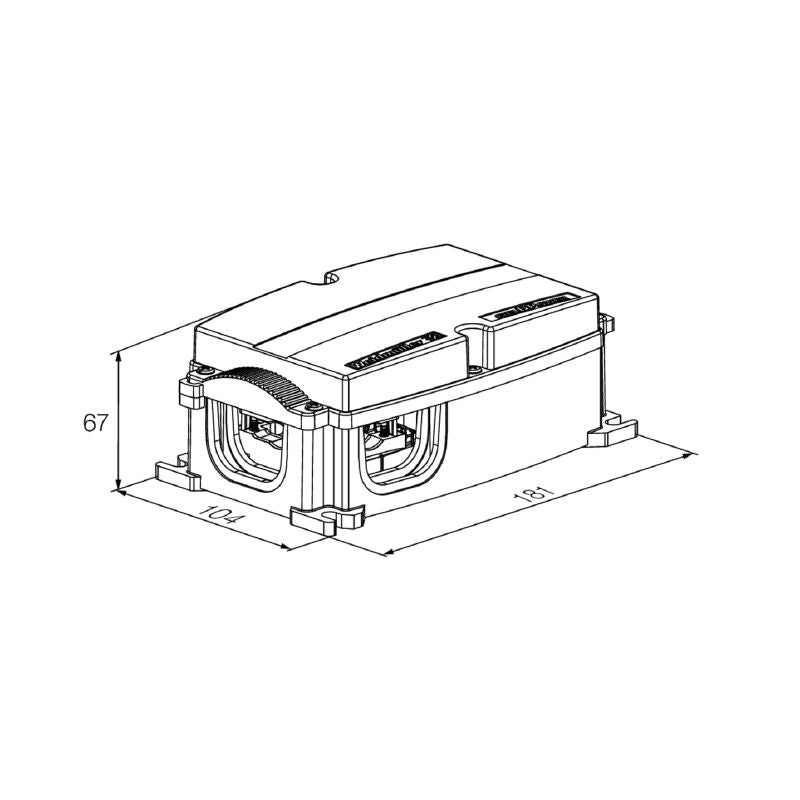

With dimensions of 181 mm in height, 104 mm in width, and 67 mm in depth, it is an excellent choice for installations requiring robust defense against environmental elements.
Features and Benefits:
•Constructed from glass-fibre reinforced polycarbonate.
•IP65 protection degree.
•RoHS compliant.
•Can be coded for security.
•Includes lid screws for secure installation.
•Power distribution in industrial or outdoor environments.
Specifications:
| Depth | 67 mm |
| Height | 181 mm |
| Width | 104 mm |
| Net weight | 542.93 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| Conductor connection cross-section, solid, max. | 6 mm² |
| Power bus connection method | Insulation displacement connection (IDC) |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Protection degree | IP65 |
| Number of poles | 5 |
