Description:

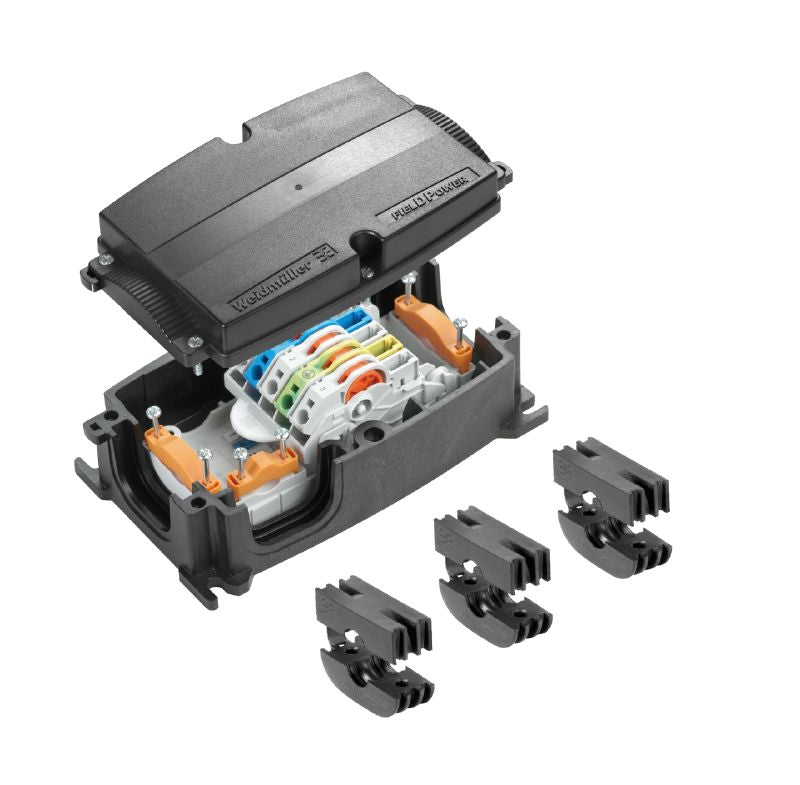

Introducing the FieldPower power distribution box, expertly crafted for AC applications This robust unit is made from glass-fibre reinforced polycarbonate and boasts an IP65 rating, ensuring durability and protection against dust and water Its innovative PUSH IN insulation displacement connection (IDC) guarantees a secure and efficient power distribution solution.
Features and Benefits:
•Made from glass-fibre reinforced polycarbonate.
•Rated for AC applications with protection degree IP65.
•Includes lid screws for easy installation.

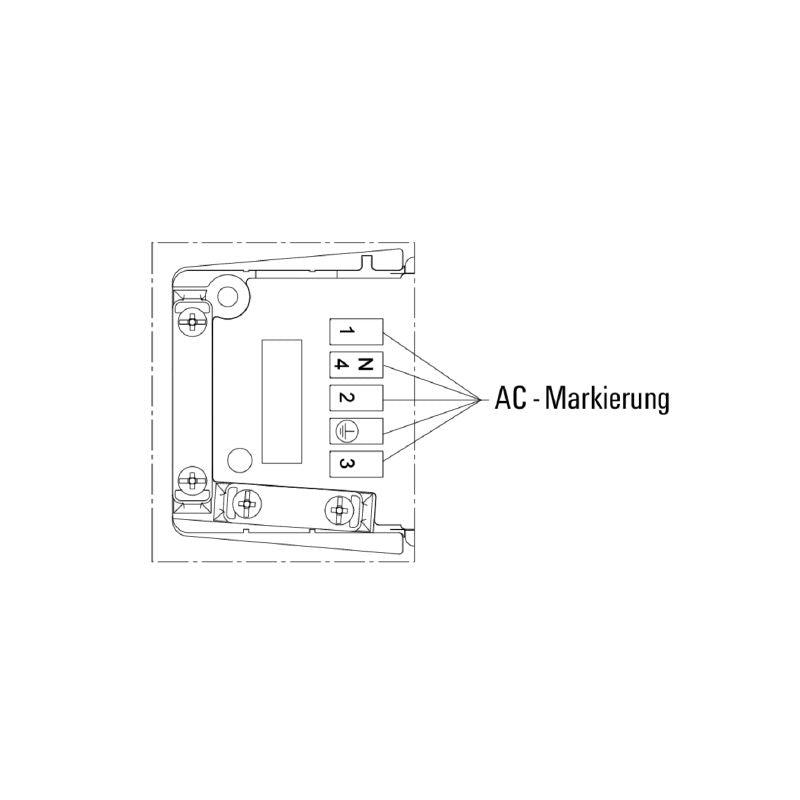

•Can be coded for specific uses.
•Supports various wiring types including solid and stranded.
•Power distribution for industrial applications.
Specifications:

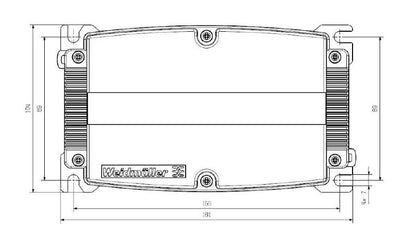

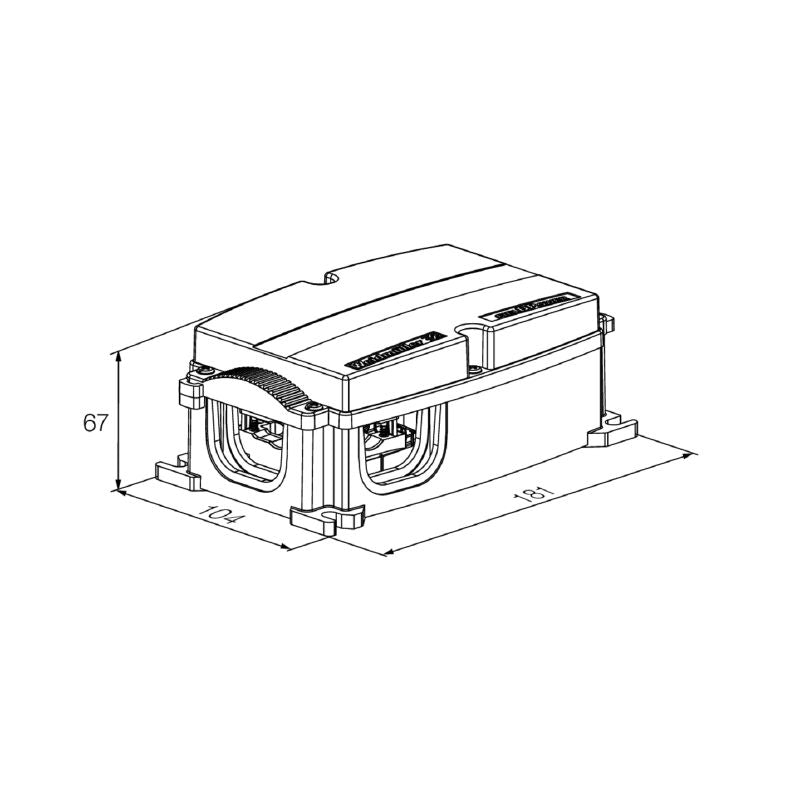

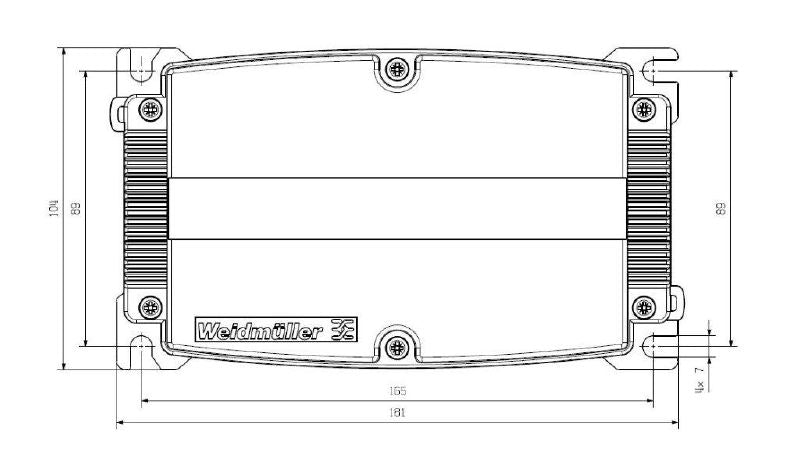

| Depth | 67 mm |
| Height | 181 mm |
| Width | 104 mm |
| Net weight | 693 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| Protection degree | IP65 |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Number of poles | 5 |
| Connection method | PUSH IN / Insulation displacement connection (IDC) |
| Conductor connection cross-section, solid, max | 6 mm² |
| Conductor connection cross-section, solid, min | 1.5 mm² |
