1534930000 - PT6 DC 5-Pole IDC Connector for 6 mm² Solid Conductors
1534930000 - PT6 DC 5-Pole IDC Connector for 6 mm² Solid Conductors
SKU: SKU: 1534930000 Download PDF
- 1534930000 - PT6 DC 5-Pole IDC Connector for 6 mm² Solid Conductors
- 1534930000 - PT6 DC 5-Pole IDC Connector for 6 mm² Solid Conductors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

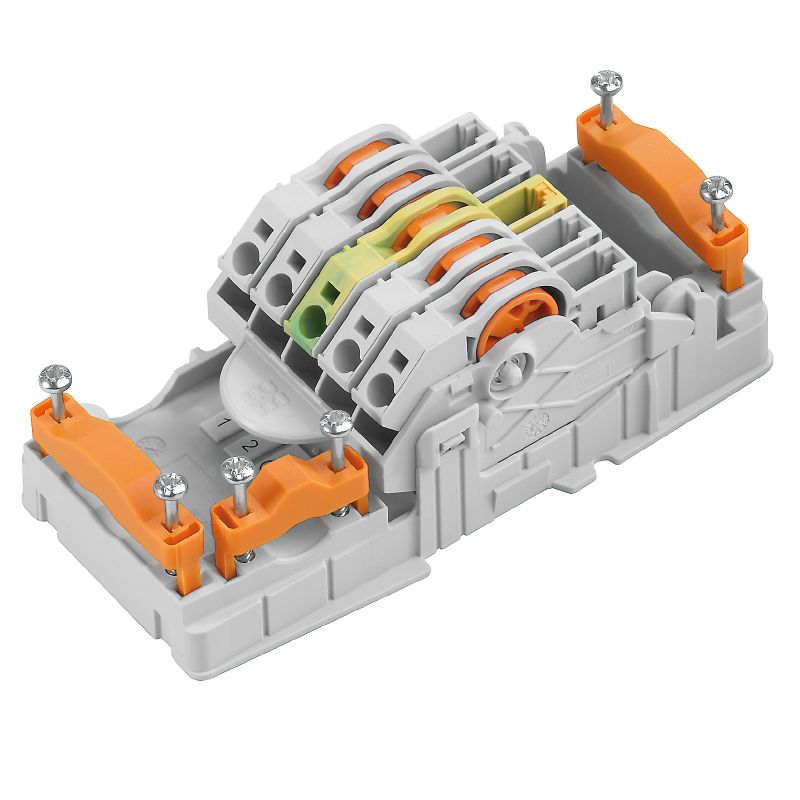

Discover the PT6 DC contact element, expertly crafted for applications involving direct current With an IP20 rating, it ensures effective protection in various environments Utilizing insulation displacement connection (IDC) technology, this component allows for a simple PUSH IN connection Featuring 5 poles, it's compatible with a range of conductor sizes and can handle solid conductors with a maximum cross-section of 6 mm².
Additionally, the PT6 contact element meets RoHS standards and comes with a UL certification, identified by number E60693.
Features and Benefits:
•Rated voltage of 800 V.
•Rated current of 41 A for 3 loaded poles and 25 A for 4 loaded poles.
•Flammability rating of V-0 per UL 94.
•Temperature range from -40 °C to 85 °C for storage and -40 °C to 55 °C for operation.
•Can be coded on PE.
Specifications:

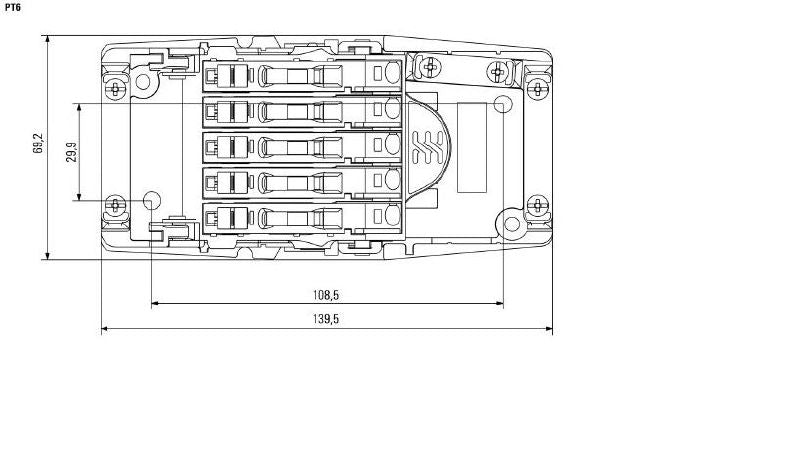

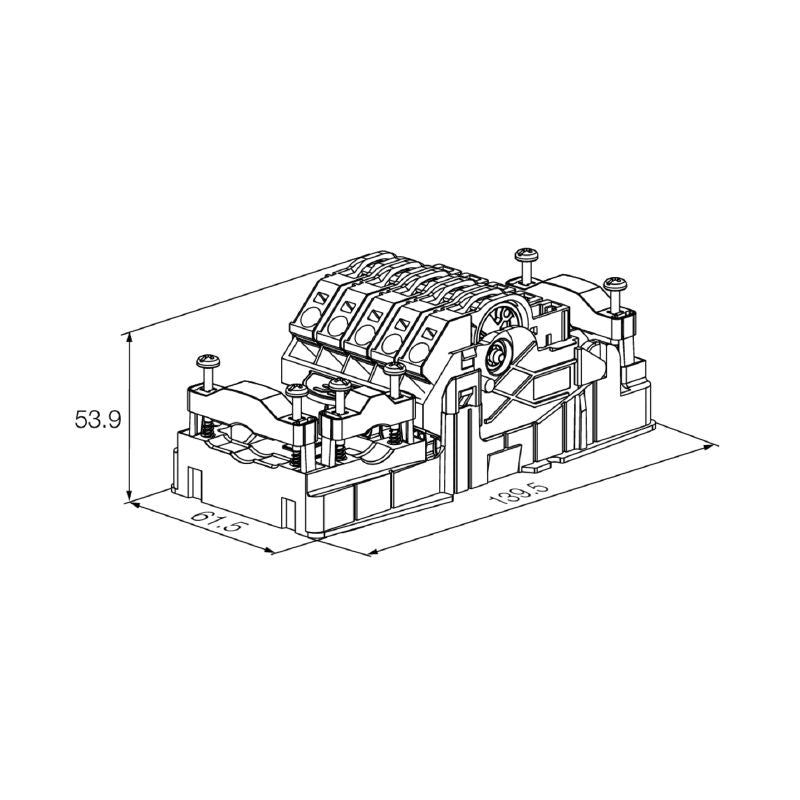

| Depth | 54 mm |
| Height | 139.5 mm |
| Width | 61.5 mm |
| Insulating material | Polyamide |
| Protection degree | IP20 |
| Connection data - contact element power bus | {'Wire connection method': 'Insulation displacement connection (IDC)', 'Blade size of operating tool': '0.6 x 3.5 mm', 'Conductor connection cross-section': {'solid': {'max': '6 mm²', 'min': '1.5 mm²'}, 'stranded': {'max': '6 mm²', 'min': '2.5 mm²'}, 'finely stranded': {'max': '6 mm²', 'min': '2.5 mm²'}}} |
| Rated current acc. to UL | 30 A |
| Rated voltage acc. to UL | 600 V |
| Rated data acc. to IEC | {'Number of phases': '3', 'Rated current': {'3 loaded poles': '41 A', '4 loaded poles': '25 A'}} |
