Description:

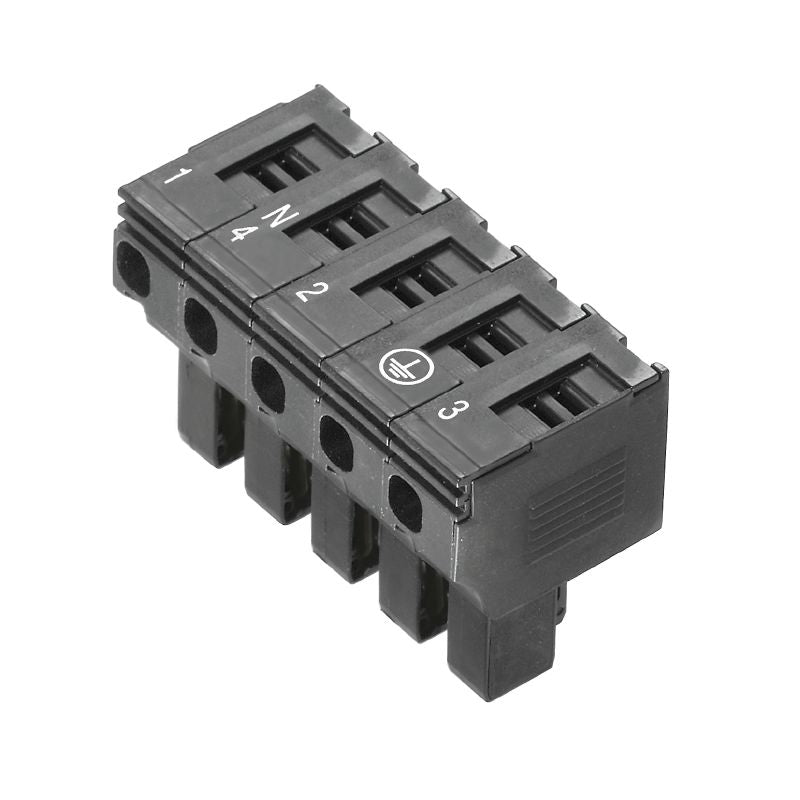

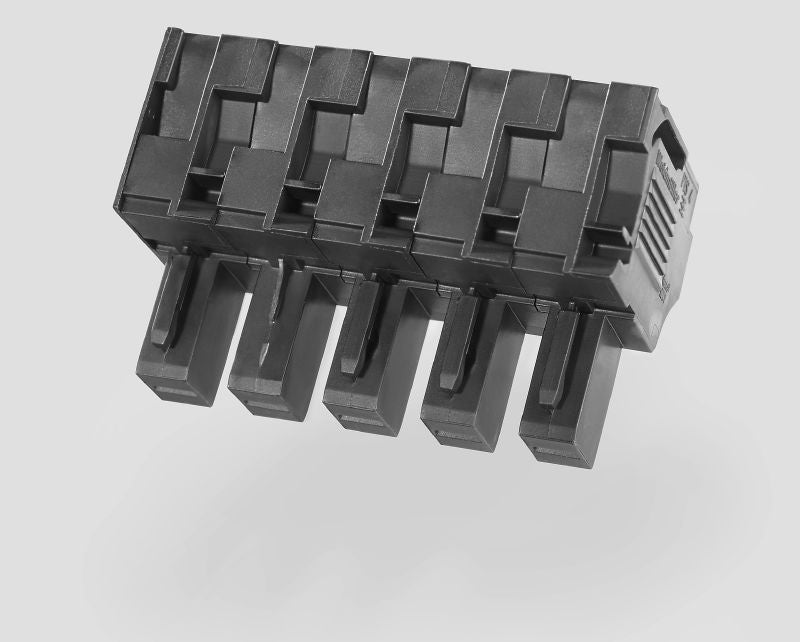

Introducing the PTS 4, a versatile plug-in connector expertly crafted for three-phase AC applications This connector is built with durable polyamide material and provides IP20 protection, ensuring lasting performance Featuring five poles and a practical PUSH IN connection method, it facilitates easy and reliable setups With certifications such as RoHS and UL (file number E60693), the PTS 4 meets stringent environmental standards, making it suitable for various electrical installations where dependable connections are essential.
Features and Benefits:
•Constructed from durable polyamide.
•Rated for 3-phase AC voltage.
•IP20 protection degree.
•Coded for unique connections.
•90° conductor outlet direction.
•Lightweight design at just 34.3 g.
Specifications:

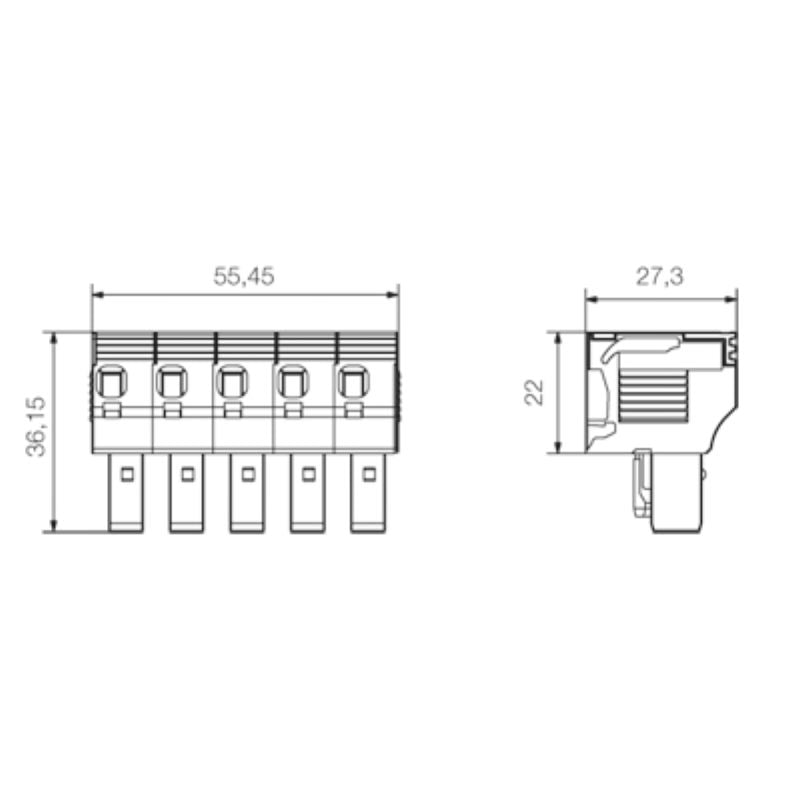

| Depth | 36.15 mm |
| Height | 27.3 mm |
| Width | 55.45 mm |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...80 °C |
| Clamping capacity | 0.5 - 4 mm² |
| Rated voltage | 690 V |
| Rated current (3 loaded poles) | 32 A |
| Rated current (4 loaded poles) | 25 A |
| Insulating material | Polyamide |
| Flammability rating | V-0 |
| Number of poles | 5 |
| Number of connections / pole | 1 |
| Wire connection method | PUSH IN |
