Description:

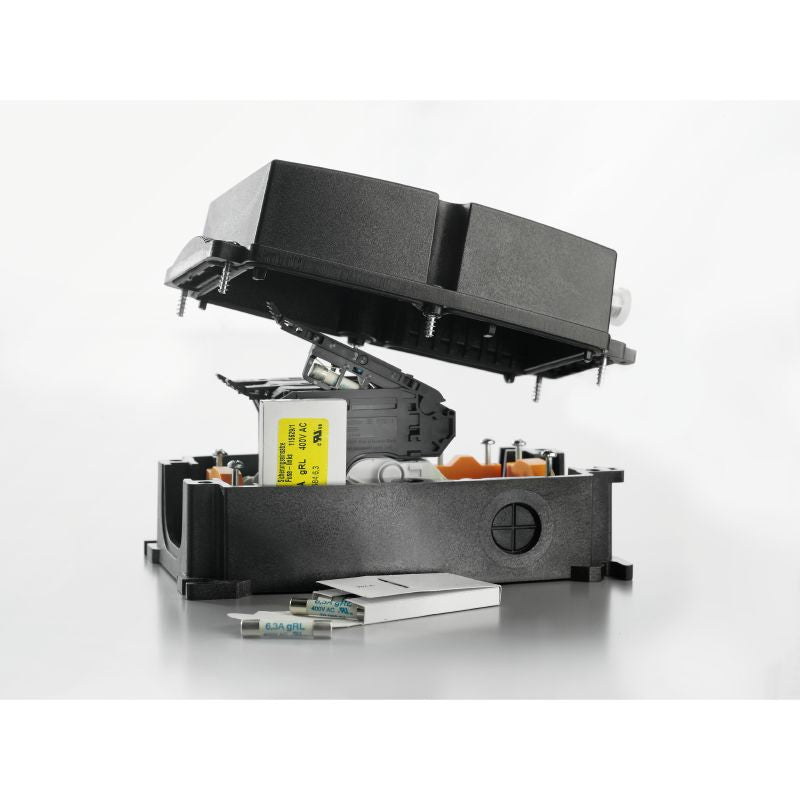

Introducing the PTSI 4/LD Connector, specifically engineered for field power applications with a voltage rating of 400V AC This durable connector is made from high-quality polyamide and boasts a flame rating of V-0, ensuring safety under challenging conditions It has an IP20 protection rating, making it suitable for a variety of environments
Equipped with a reliable fuse mechanism, this connector supports up to five poles.
It accommodates cable clamping capacities between 05 mm² and 4 mm², allowing for secure connections with both solid and stranded wires Additionally, it meets RoHS compliance standards, ensuring eco-friendliness The storage temperature ranges from -40 °C to 85 °C, while it operates efficiently in temperatures from -40 °C to 55 °C, making it a versatile choice for various applications.
Features and Benefits:
•Complies with RoHS without exemptions.
•PUSH IN connection method for ease of use.
•Five-pole design for versatile connections.

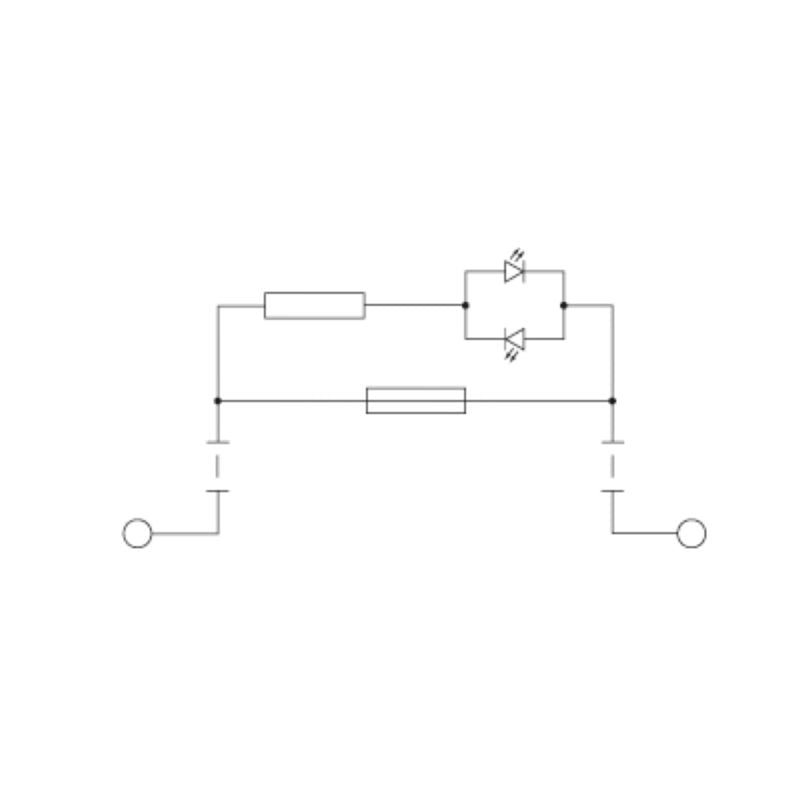

•Features a red LED failure indicator.

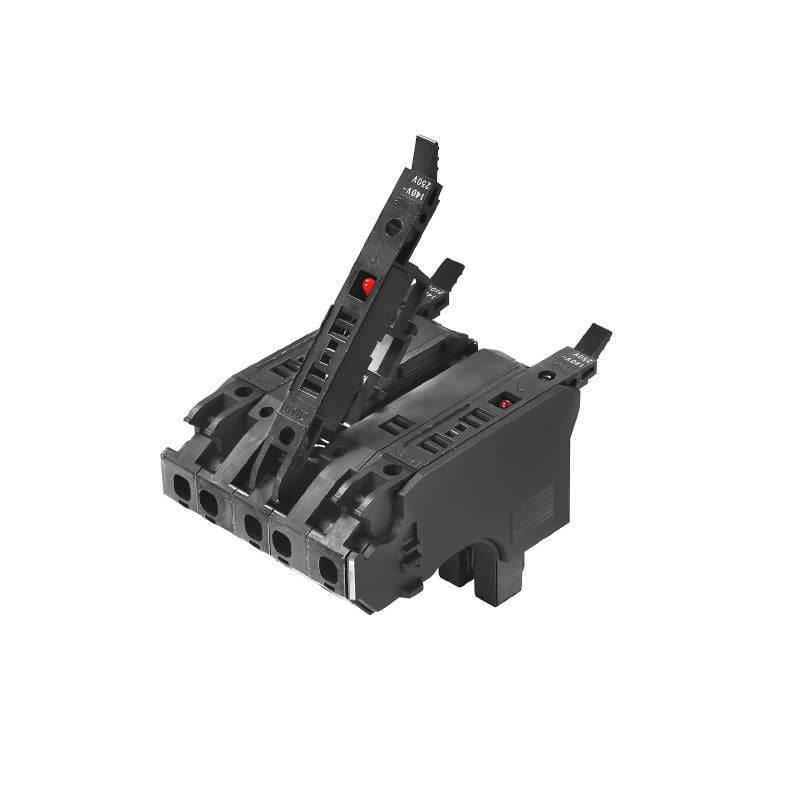

•Fuse holder design allows for pivoting.
•Can be coded for specific applications.
Specifications:
| Dimensions (Depth x Height x Width) | 55 mm x 85 mm x 57 mm |
| Net Weight | 100 g |
| Storage Temperature | -40 °C to 85 °C |
| Operating Temperature | -40 °C to 55 °C |
| Insulating Material | Polyamide |
| Protection Degree | IP20 |
| Rated Voltage (IEC) | 500 V |
| Rated Current (IEC) | 12 A |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL) | 20 A |
| Cartridge Fuse Size | 6.3 x 32 mm (1/4 x 1 1/4") |
| Number of Phases | 3 |
| Rated Impulse Withstand Voltage | 6 kV |
| Cross-section for connected wire, solid (max) | 4 mm² |
| Cross-section for connected wire, solid (min) | 0.5 mm² |
| Cross-section for connected wire, stranded (max) | 4 mm² |
| Cross-section for connected wire, stranded (min) | 0.5 mm² |
| Conductor Outlet Direction | 90° |
| Number of Poles | 5 |
