1963570000 - IP30 Rated Polycarbonate Distribution Terminal, 159.7mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

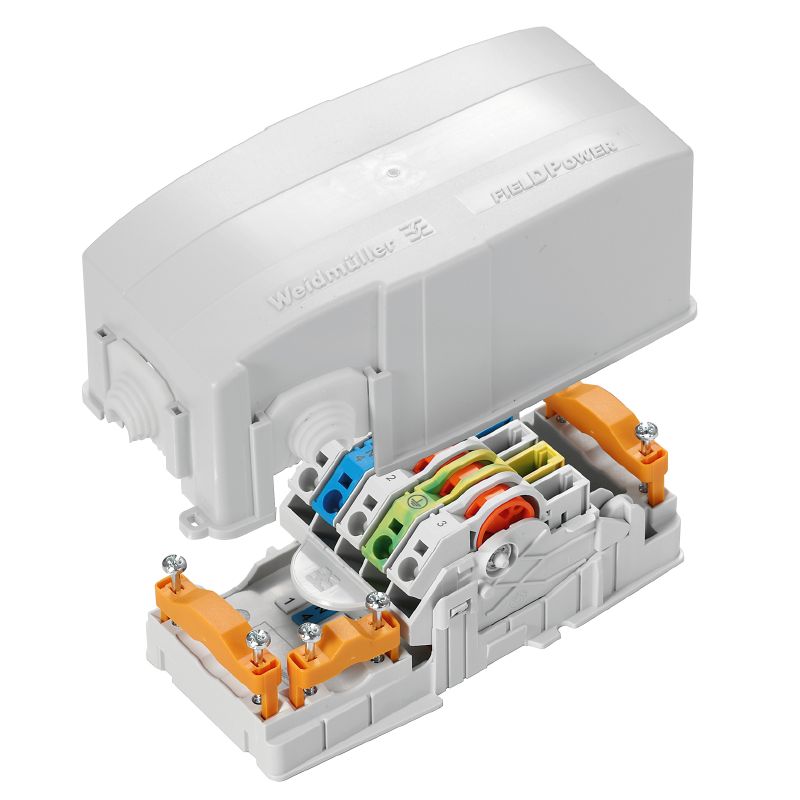

Discover the POWERTERMINAL LG, perfect for your distribution needs Constructed with a robust polycarbonate body, this terminal is rated IP30 for reliable performance It features insulation displacement connection (IDC) technology and offers convenient push-in connection options Capable of accommodating various clamping capacities, it meets RoHS compliance standards This versatile product is suitable for multiple wire types, including solid, stranded, and finely stranded conductors.

With dimensions of 1597 mm in height, 75 mm in width, and 59 mm in depth, it weighs just 25287 g The POWERTERMINAL LG operates efficiently in temperatures ranging from -40 °C to 55 °C, and it can be stored at even broader ranges from -40 °C to 85 °C Ideal for a wide range of applications, it's crafted to meet your connection requirements with ease.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Supports a variety of wire types and connections.

•Allows for easy installation with push-in connections.

•Constructed from durable polycarbonate.

•Designed for effective distribution in electric systems.

•Utilized in electrical distribution systems.

Specifications:
