1131730000 - 5-Pole IP20 Polyamide Connector for DC Applications (Pack of 10)
1131730000 - 5-Pole IP20 Polyamide Connector for DC Applications (Pack of 10)
SKU: SKU: 1131730000 Download PDF
- 1131730000 - 5-Pole IP20 Polyamide Connector for DC Applications (Pack of 10)
- 1131730000 - 5-Pole IP20 Polyamide Connector for DC Applications (Pack of 10)
Couldn't load pickup availability
Description:

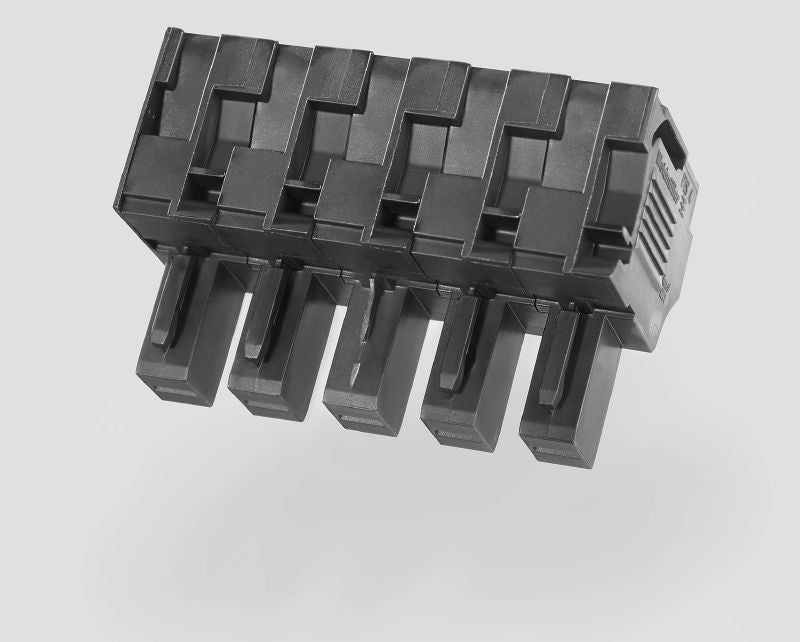

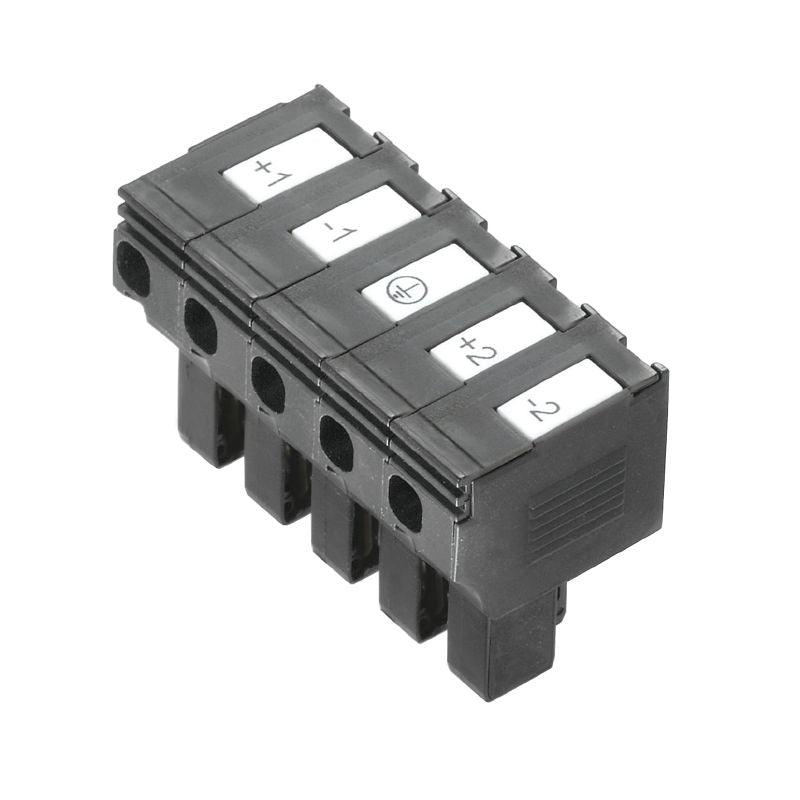

Introducing the PTS 4 DC, a robust polyamide plug-in connector specifically engineered for direct current use, featuring a reliable IP20 protection rating This model is equipped with 5 poles and employs a convenient push-in connection technique It adheres to RoHS compliance and boasts several certification approvals, including E60693 The connector is rated for a maximum operating temperature of 80 °C and can withstand storage temperatures ranging from -40 °C to 85 °C.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Can be coded.
•Protection degree of IP20.
•Complies with various IEC and UL standards.
•Plug-in mounting type.
Specifications:

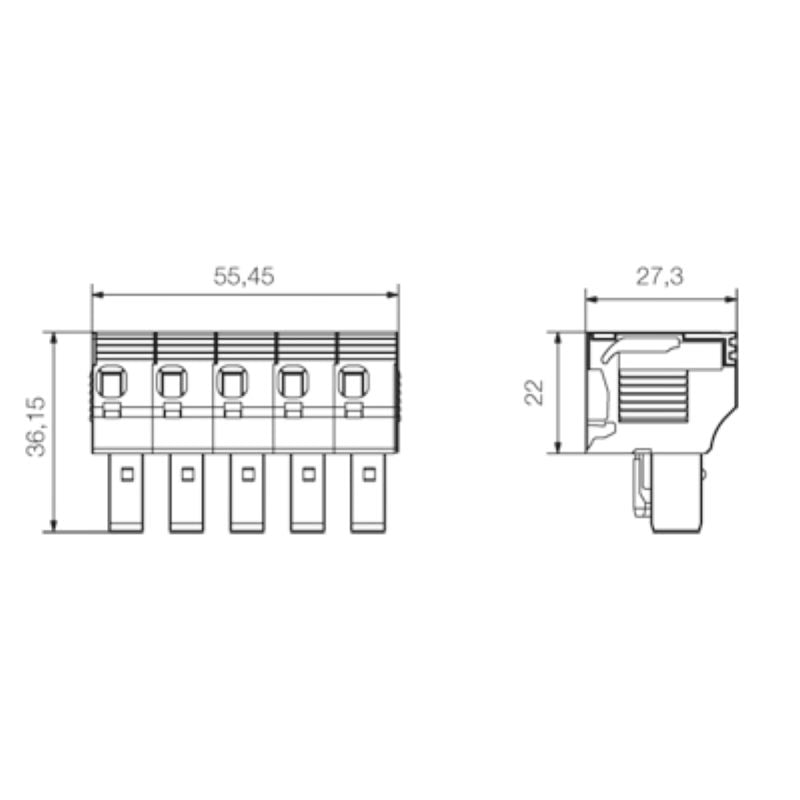

| Depth | 36.15 mm |
| Height | 27.3 mm |
| Width | 55.45 mm |
| Net weight | 34.71 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...80 °C |
| Rated voltage | 690 V |
| Rated current (3 loaded poles) | 32 A |
| Rated current (4 loaded poles) | 25 A |
| Rated voltage (UL) | 600 V |
| Conductor connection cross-section, max. | 4 mm² |
| Conductor outlet direction | 90° |
| Insulating material | Polyamide |
| UL flammability rating | V-0 |
