Description:

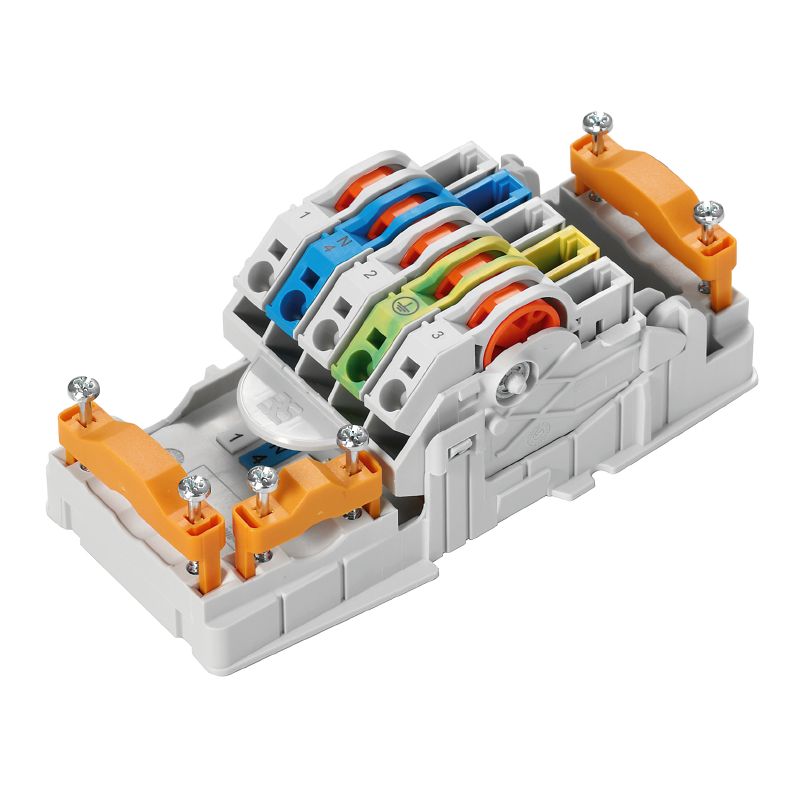

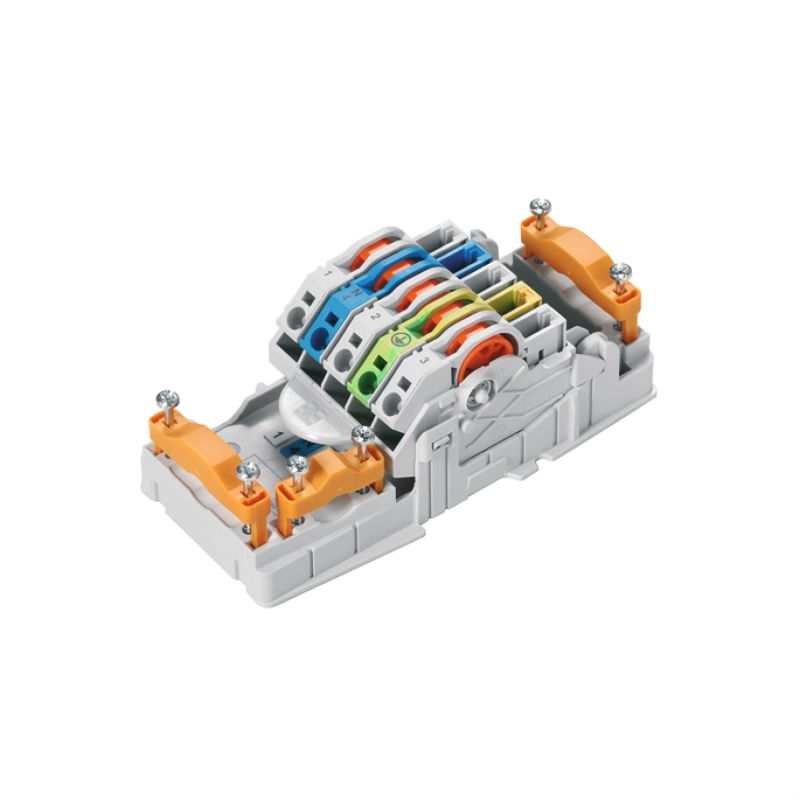

Introducing the FieldPower contact element, expertly crafted for alternating current applications, featuring an IP20 protection rating This component utilizes advanced Insulation Displacement Connection (IDC) technology and is equipped with 5 poles, making it an excellent choice for various electrical contact needs Made from robust polyamide material, it meets RoHS standards, ensuring safety and compliance.
With versatility in wire connections, it accommodates both solid and stranded conductors and offers a rated voltage of 800 V, ideal for high-performance electrical systems.
Features and Benefits:
•Rated current (3 loaded poles): 41 A.
•Rated voltage: 600 V.
•Protection degree: IP20.
•Can be coded.
•UL 94 flammability rating: V-0.
•Compliant without exemption to RoHS.
Specifications:

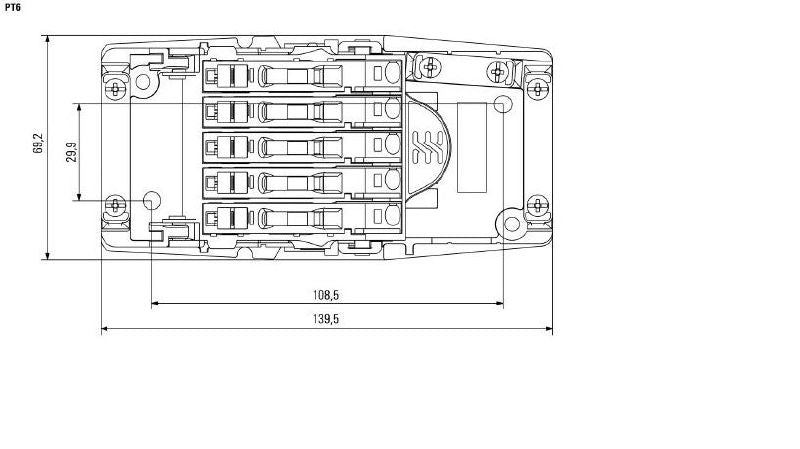

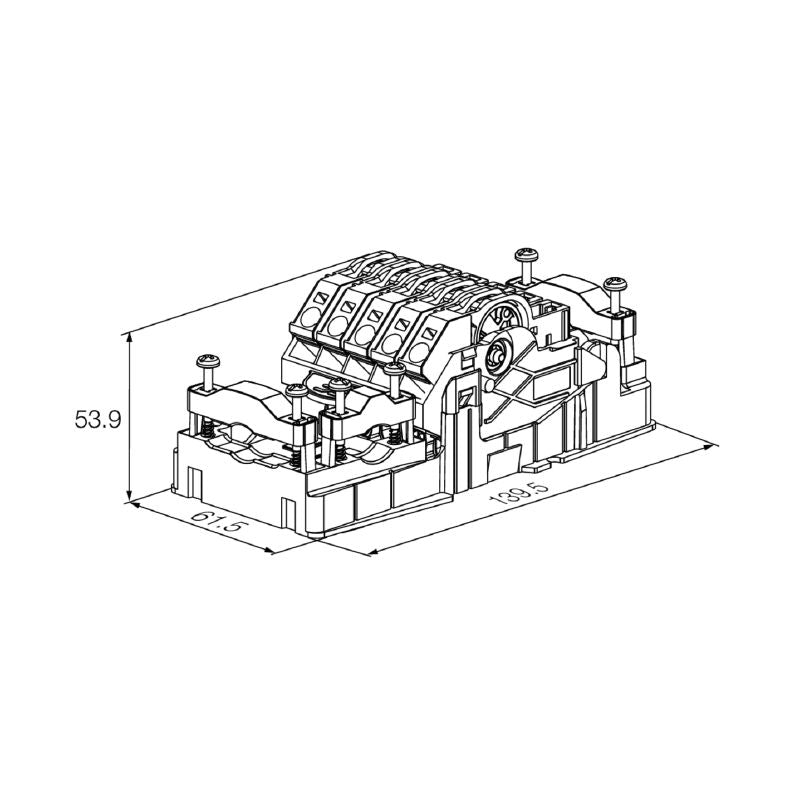

| Depth | 54 mm |
| Height | 139.5 mm |
| Width | 61.5 mm |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Conductor connection cross-section, solid, max. | 6 mm² |
| Conductor connection cross-section, solid, min. | 1.5 mm² |
| Conductor connection cross-section, stranded, max. | 6 mm² |
| Conductor connection cross-section, stranded, min. | 0.5 mm² |
| Conductor connection cross-section, finely stranded, max. | 6 mm² |
| Conductor connection cross-section, finely stranded, min. | 2.5 mm² |
| Voltage type | AC |
| Number of poles | 5 |
| Rated impulse withstand voltage | 8 kV |
| Rated current (4 loaded poles) | 25 A |
| Insulating material | Polyamide |
| Colour | grey |
