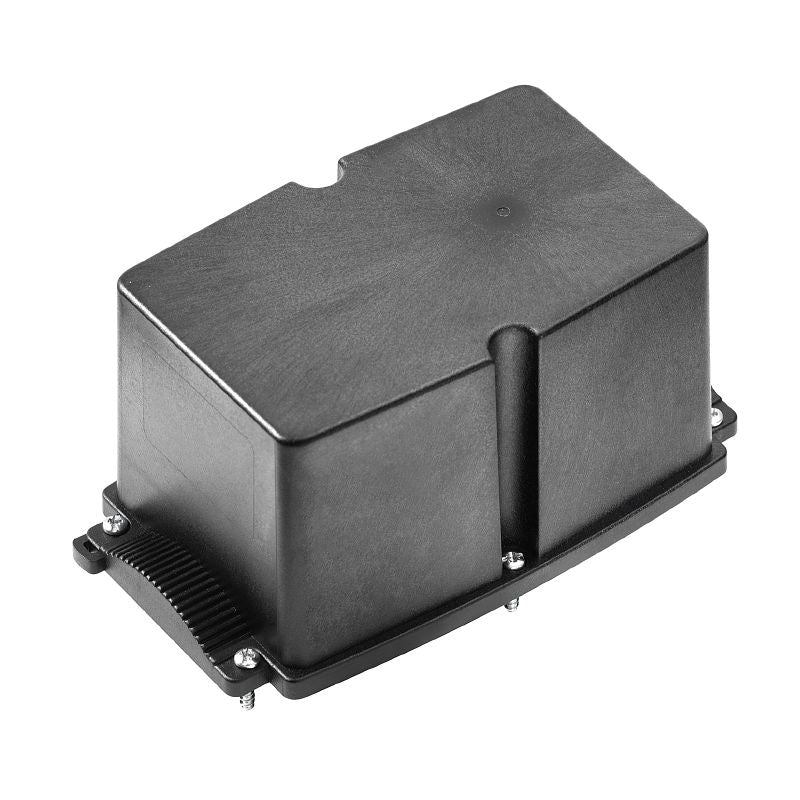

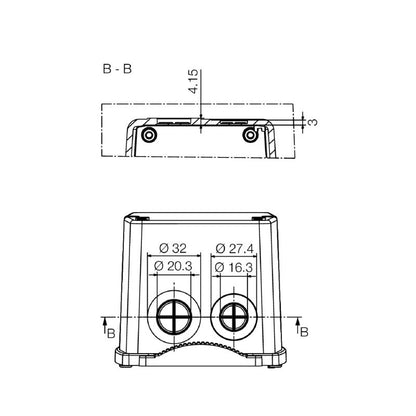

1276220000 - IP65 Rated Black Polycarbonate Enclosure, 181mm Height (Pack of 10)

1276220000 - IP65 Rated Black Polycarbonate Enclosure, 181mm Height (Pack of 10)

SKU: SKU: 1276220000   Download PDF

Select a Variant:
  • 1276220000 - IP65 Rated Black Polycarbonate Enclosure, 181mm Height (Pack of 10)
Qty:
Regular price Now $304.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $304.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the FieldPower Enclosure, expertly crafted to comply with IP65 standards, ensuring reliable protection in various environments Constructed from robust glass-fibre reinforced polycarbonate, this enclosure measures 181 mm in height, 104 mm in width, and 87 mm in depth, making it versatile for multiple applications This model adheres to RoHS regulations without needing any exemptions, guaranteeing a commitment to safety and environmental standards.

It can withstand extreme temperatures ranging from -40 °C to 85 °C, and features a durable black polycarbonate construction For added convenience, the product comes with detailed specifications for lid screws and torque.

Features and Benefits:

    •Glass-fibre reinforced polycarbonate construction.

    •IP65 protection degree.

    •Lid screws included for installation.

    •Compliant with RoHS regulations.

    •Operating temperature range of -40 °C to 85 °C.

    •Storage temperature range of -40 °C to 85 °C.

Specifications:

 Approval Status ROHS Compliant without exemption
 Order Number 1276220000
 GTIN (EAN) 4050118065923
 Depth 87 mm (3.425 inches)
 Height 181 mm (7.126 inches)
 Width 104 mm (4.094 inches)
 Net Weight 292 g
 Basic Material Polycarbonate, glass fibre reinforced
 Insulating Material GF 10
 Enclosure Material glass-fibre reinforced polycarbonate
 Silicone No
 Protection Degree IP65
 UL 94 Flammability Rating 5VA
 Torque for Lid Screws 2 Nm
 Lid Attachment TX20 screws
 ETIM 6.0 EC000261
 ETIM 7.0 EC000261
 ETIM 8.0 EC000261
 ETIM 9.0 EC000261
 ETIM 10.0 EC000261
 ECLASS 9.0 27-18-01-01
 ECLASS 9.1 27-18-92-90
 ECLASS 10.0 27-18-01-01
 ECLASS 11.0 27-18-01-01
 ECLASS 12.0 27-18-01-01
 ECLASS 13.0 27-18-01-01
 ECLASS 14.0 27-18-01-01
 ECLASS 15.0 27-18-01-01
