Description:

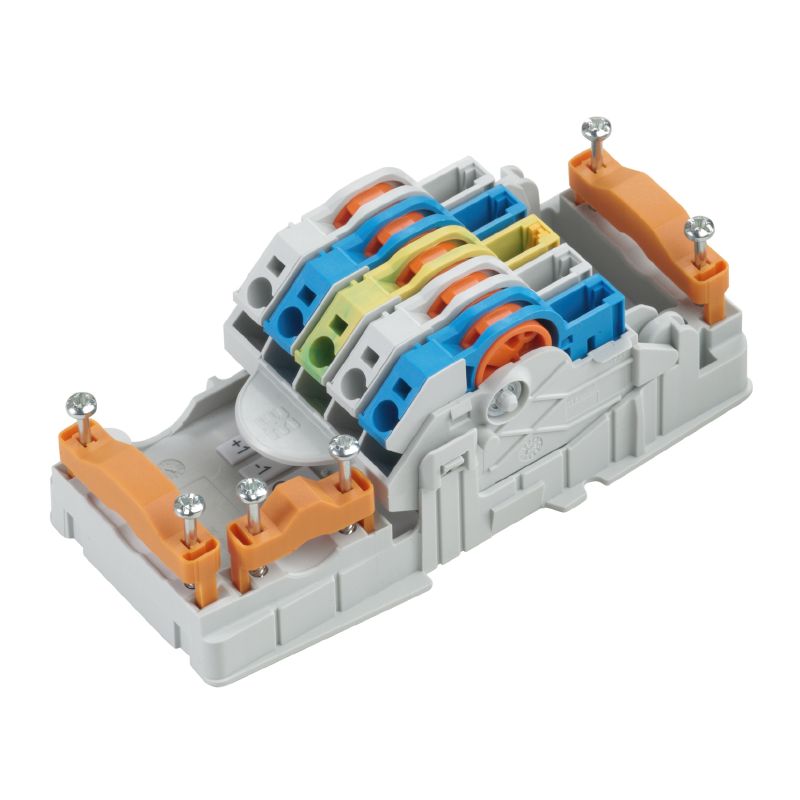

Introducing the PT6 DC, a specialized contact element tailored for direct current use in various electronic devices This robust component features insulation displacement connection (IDC) technology and is rated IP20, ensuring reliability across multiple applications Its compact design accommodates five connection points, allowing for efficient setups The PT6 DC is also compliant with ROHS standards and holds a UL certification (E60693), making it a trustworthy choice for your electronic projects.
Features and Benefits:
•Insulation displacement connection (IDC).
•PUSH IN connection method.
•Rated for direct current applications.
•Protection degree IP20.
•Can be coded for secure connections.
•Constructed from durable polyamide material.
Specifications:

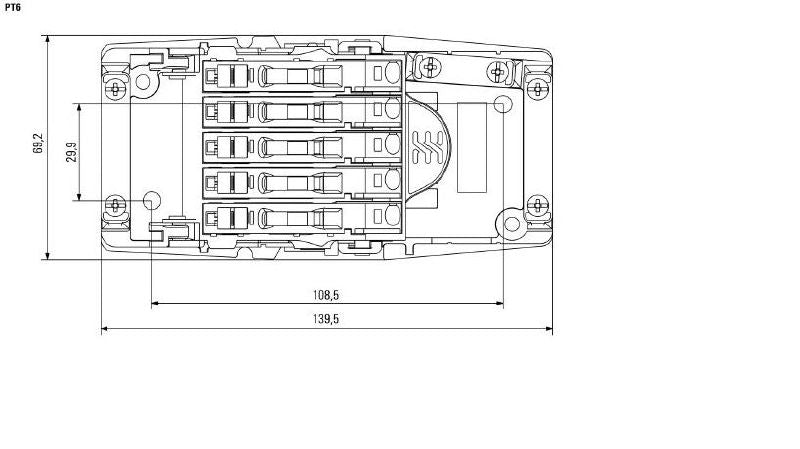

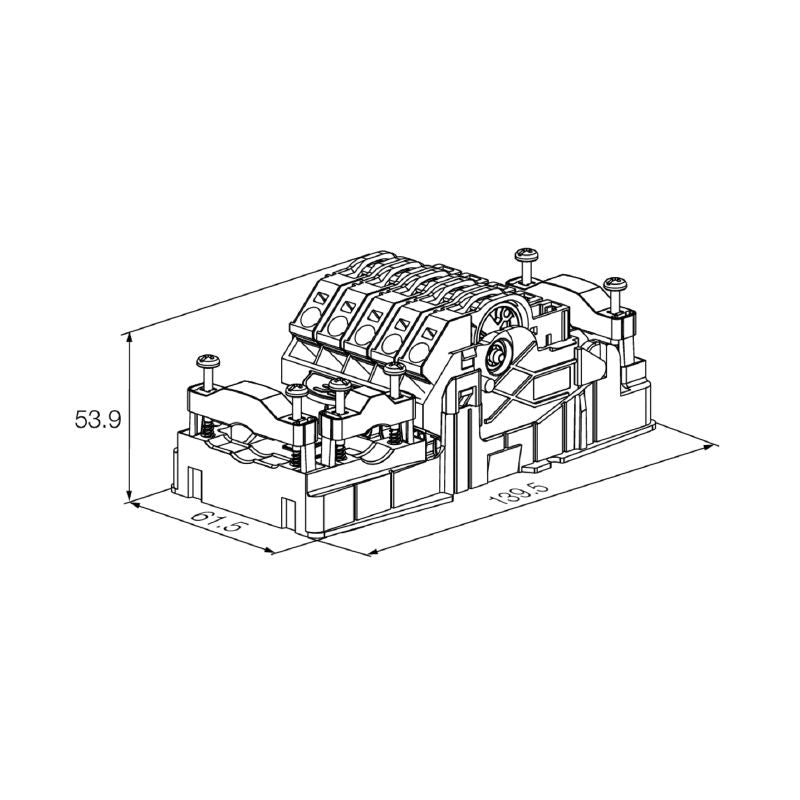

| Depth | 54 mm |
| Height | 139.5 mm |
| Width | 61.5 mm |
| Operating temperature | -40 °C to 55 °C |
| Storage temperature | -40 °C to 85 °C |
| Conductor connection cross-section (solid, max) | 6 mm² |
| Conductor connection cross-section (solid, min) | 1.5 mm² |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| UL voltage rating | 600 V |
| Rated current | 30 A |
| Voltage type | DC |
| UL 94 flammability rating | V-0 |
