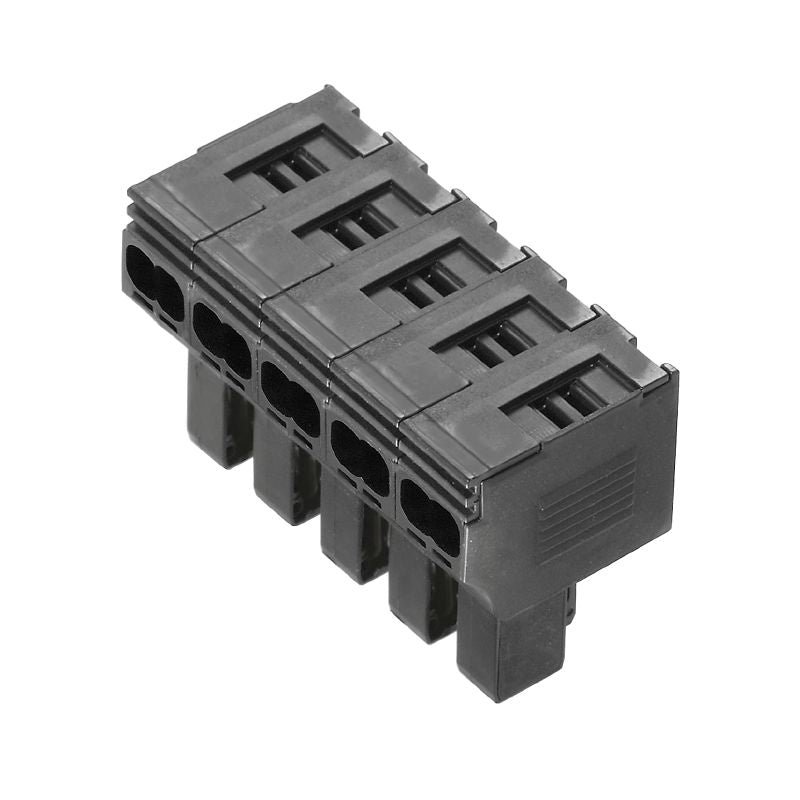

2000240000 - IP20 Rated 5-Connection Field Power Connector, Polyamide Design (Pack of 10)
2000240000 - IP20 Rated 5-Connection Field Power Connector, Polyamide Design (Pack of 10)
SKU: SKU: 2000240000 Download PDF
- 2000240000 - IP20 Rated 5-Connection Field Power Connector, Polyamide Design (Pack of 10)
- 2000240000 - IP20 Rated 5-Connection Field Power Connector, Polyamide Design (Pack of 10)
Couldn't load pickup availability
Description:

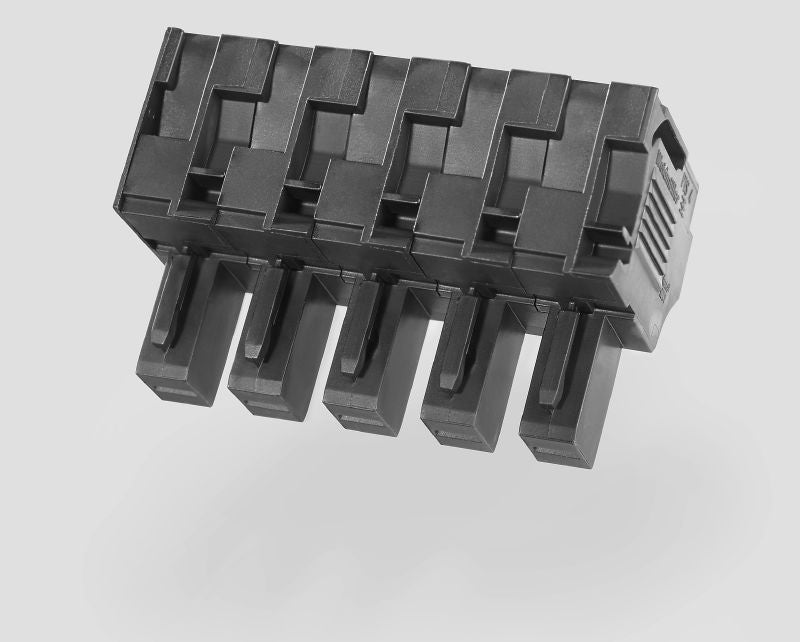

Introducing the PTDS 4 NE, a versatile Field Power plug-in connector suitable for a wide range of applications Constructed from durable polyamide, this connector offers IP20 protection and features a two-pole configuration with a total of 5 connections It is RoHS compliant and holds UL certification, with the file number E60693 for assurance of quality
Measuring 5545 mm in width, 273 mm in height, and 36.
15 mm in depth, this connector has a lightweight design, weighing only 4092 g It operates effectively in temperatures ranging from -40 °C to 80 °C, and is capable of withstanding storage environments from -40 °C to 85 °C Additionally, its clamping capacity is designed to accommodate various wire cross-section sizes, making it compatible with several wire-end ferrule standards.
Features and Benefits:
•Made from durable polyamide.
•Can be plugged in for easy installation.
•IP20 rated for protection.
•Compliant with RoHS standards.
•UL certified for additional safety.
Specifications:

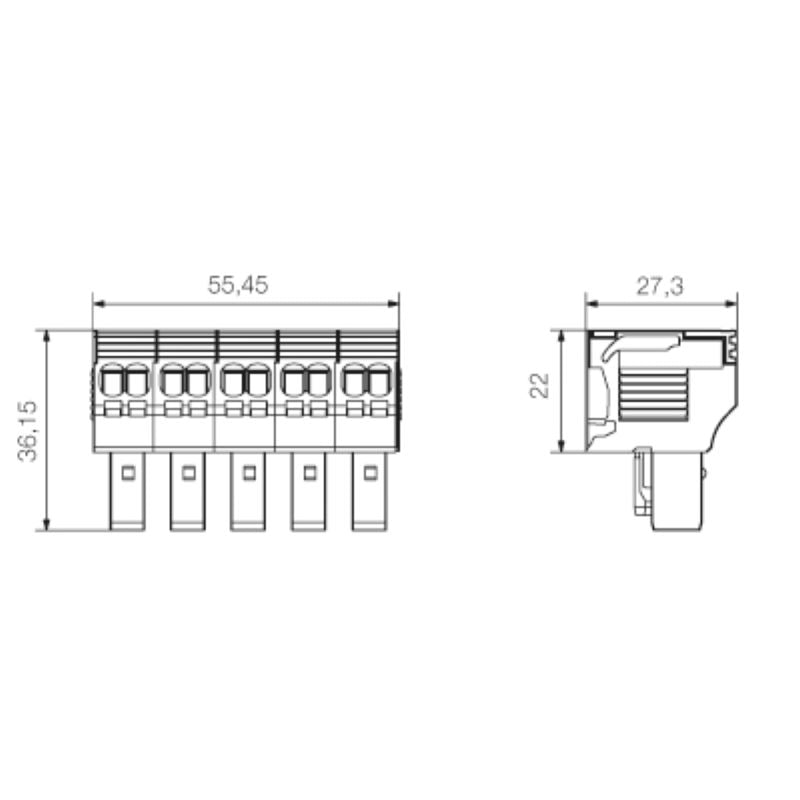

| Depth | 36.15 mm |
| Height | 27.3 mm |
| Width | 55.45 mm |
| Net weight | 4.092 g |
| Operating temperature | -40 °C to 80 °C |
| Storage temperature | -40 °C to 85 °C |
| Rated voltage (IEC) | 690 V |
| Rated current (3 loaded poles) | 32 A |
| Rated current (4 loaded poles) | 25 A |
| Clamping range, min PUSH IN connection | 0.5 mm² |
| Clamping range, max PUSH IN connection | 4 mm² |
| Cross-section for connected wire Min | 0.5 mm² |
| Cross-section for connected wire Max | 4 mm² |
| Number of poles | 2 x 5 |
