Description:

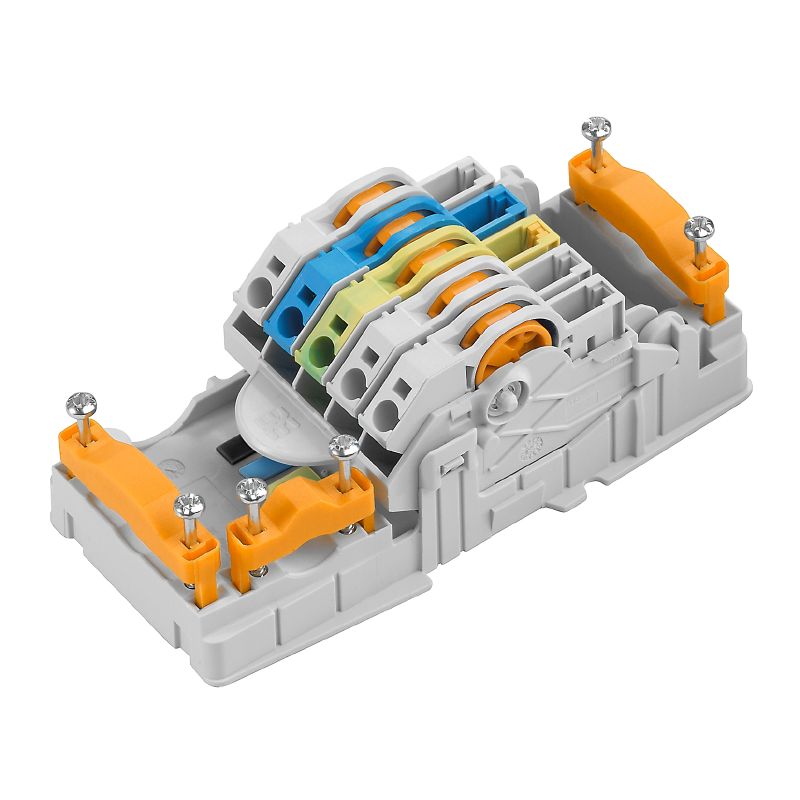

Introducing the PT6 230/BUS FieldPower contact element, specifically engineered for AC applications with reliable IP20 protection This innovative device showcases insulation displacement connection (IDC) technology and a user-friendly PUSH IN connection type, supporting a total of 5 poles Additionally, it adheres to RoHS standards and bears a UL certification number E60693, ensuring safety and compliance for your electrical projects.
Features and Benefits:
•IP20 protection degree.
•Insulation displacement connection (IDC).
•PUSH IN connection type.
•Can be coded.
•Rated for AC voltage.
•Net weight of 196g.
Specifications:

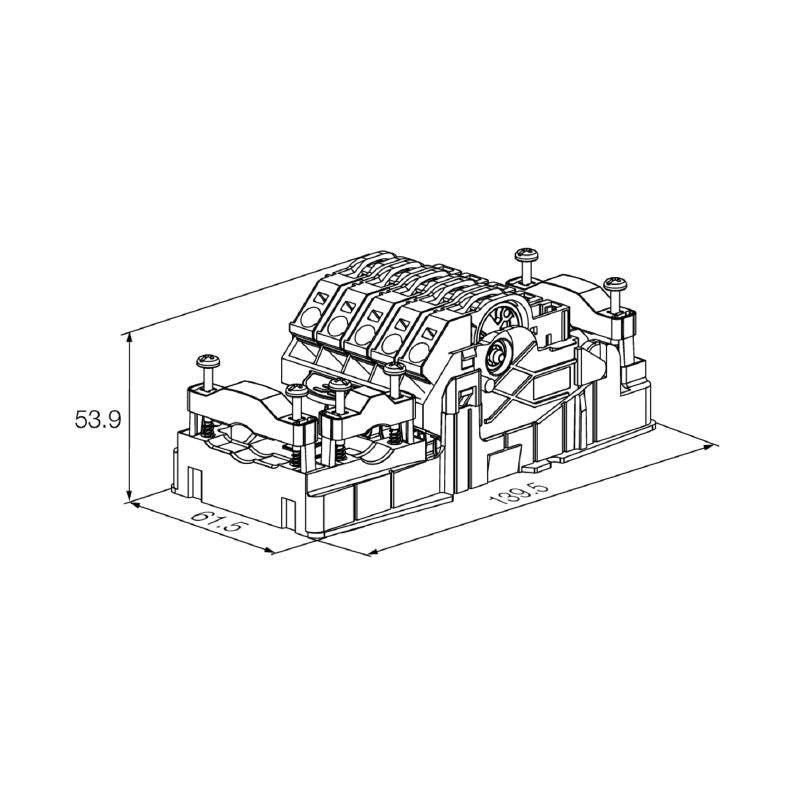

| Depth | 54 mm |
| Height | 139.5 mm |
| Width | 61.5 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 55 °C |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Conductor connection cross-section, solid, max | 6 mm² |
| Conductor connection cross-section, stranded, min | 0.5 mm² |
| Blade size of operating tool | 0.6 x 3.5 mm |
