Description:

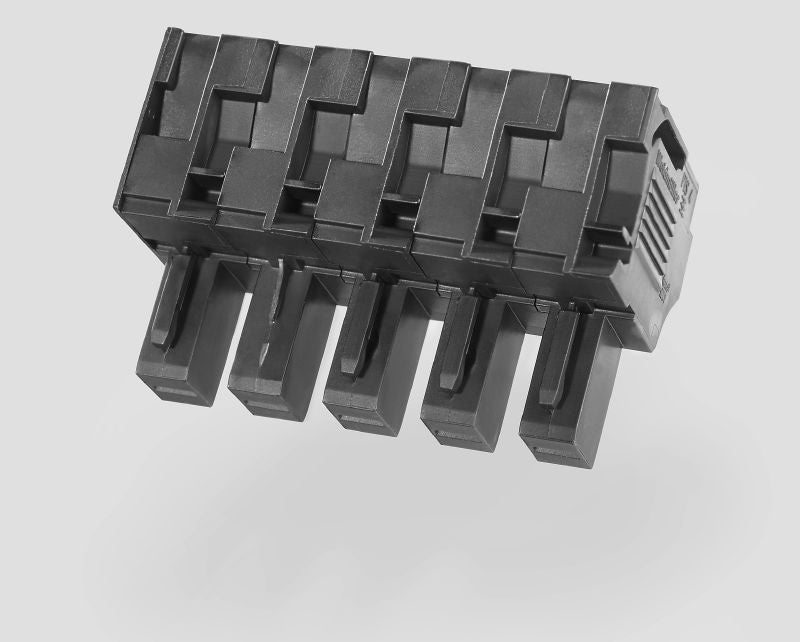

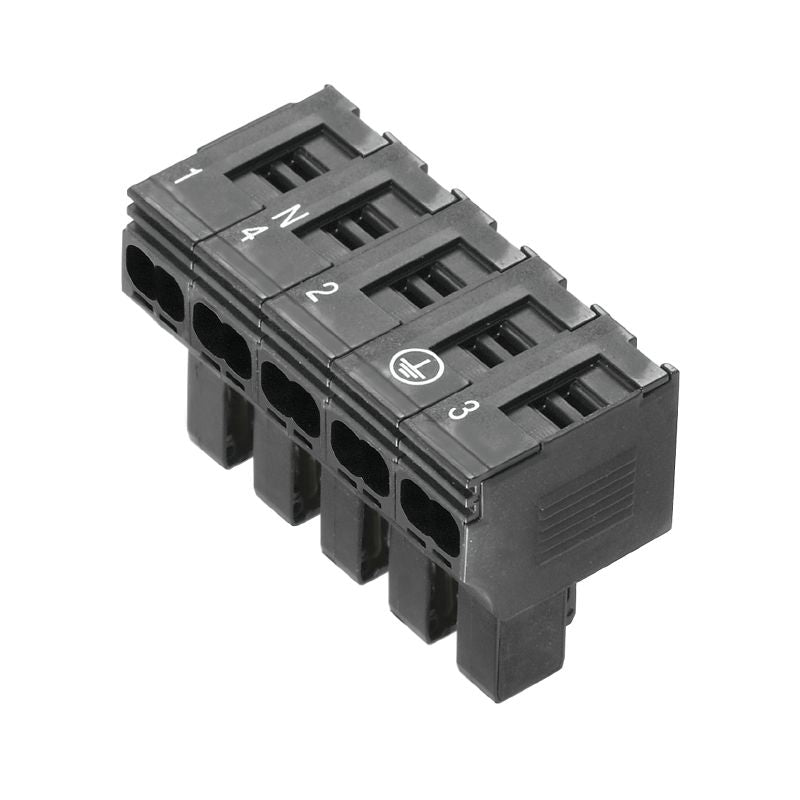

Introducing the PTDS 4, an essential plug-in connector ideal for 3-phase AC systems Constructed from robust polyamide, this connector boasts an IP20 rating, ensuring reliable performance in various environments With a unique 2 x 5 pole configuration, it offers five connection points, making wiring a breeze with its push-in method for effortless installation Compliant with various safety standards, this versatile connector accommodates a range of wire connection types, ensuring dependable functionality for your projects.
Features and Benefits:
•UL File Number: E60693.
•Storage temperature range: -40 °C to 85 °C.
•Operating temperature range: -40 °C to 80 °C.
•Protection degree: IP20.
•Can be coded for safety.
•Insulating material: Polyamide.
•Flammability rating: UL 94 V-0.
•PUSH IN connection for ease of use.
Specifications:

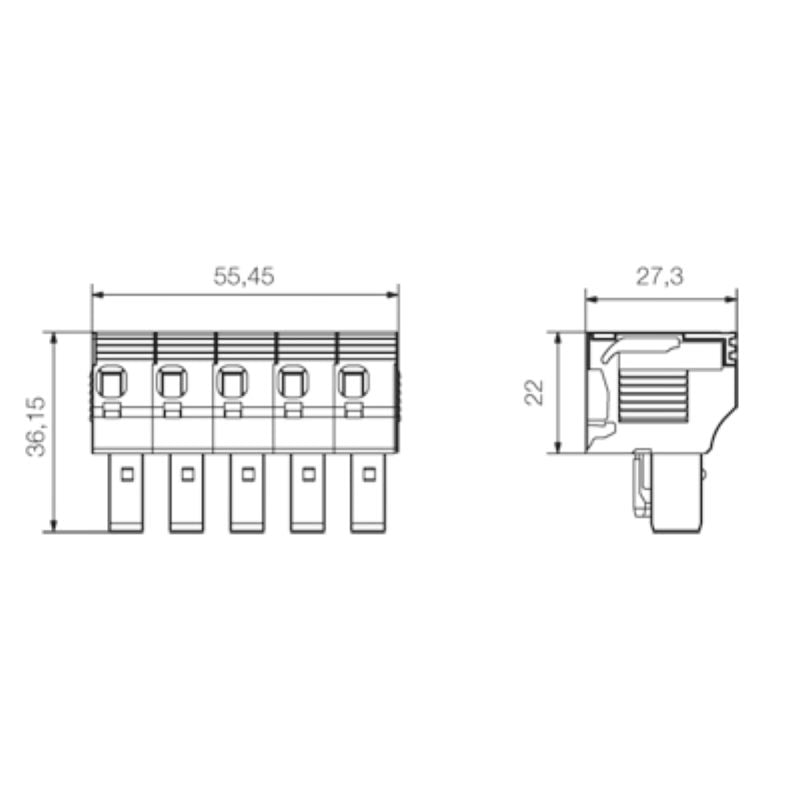

| Depth (mm) | 36.15 |
| Height (mm) | 27.3 |
| Width (mm) | 55.45 |
| Clamping range, max. PUSH IN connection | 4 mm² |
| Clamping range, min. PUSH IN connection | 0.5 mm² |
| Rated voltage (IEC) | 690 V |
| Rated current (IEC, 3 loaded poles) | 32 A |
| Rated current (IEC, 4 loaded poles) | 25 A |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 20 A |
| Conductor connection cross-section, max. | 4 mm² |
| Conductor connection cross-section, min. | 0.5 mm² |
| Number of poles | 2 x 5 |
| Number of connections / pole | 2 |
