1002900000 - IP65 Rated FieldPower AC Distribution Box with IDC Technology
1002900000 - IP65 Rated FieldPower AC Distribution Box with IDC Technology
SKU: SKU: 1002900000 Download PDF
- 1002900000 - IP65 Rated FieldPower AC Distribution Box with IDC Technology
- 1002900000 - IP65 Rated FieldPower AC Distribution Box with IDC Technology
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

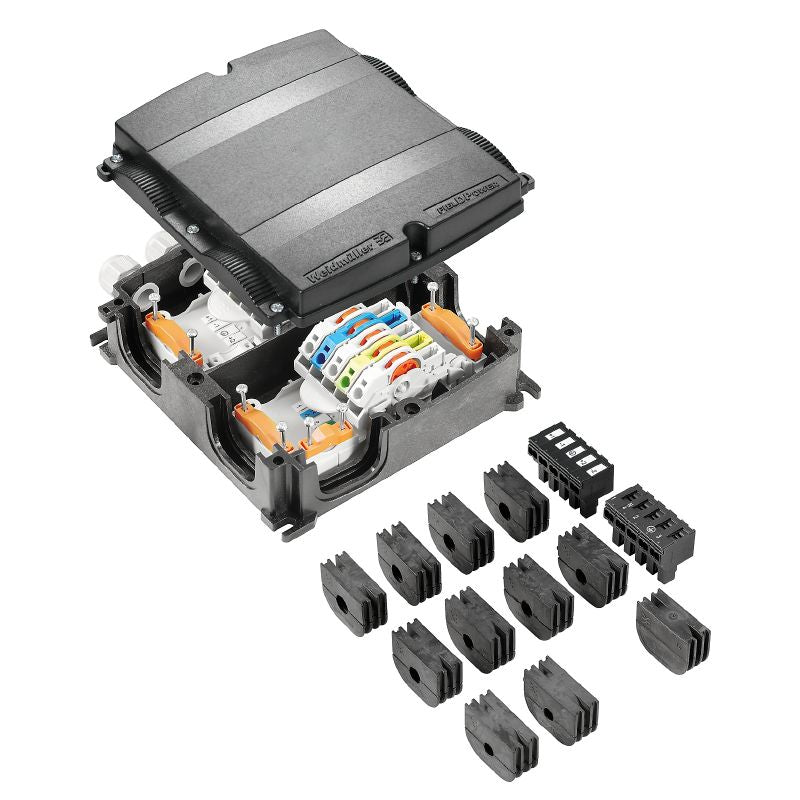

Introducing the FieldPower power distribution box, designed for AC operation and featuring an IP65 protection rating Crafted from durable glass-fibre reinforced polycarbonate, this unit utilizes PUSH IN and insulation displacement connection (IDC) technologies for optimal performance Its robust design makes it suitable for a wide range of applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Includes PUSH IN wire connection method.
•With cable gland functionality.
•Lid screws are included.
•Compatible with UL-listed TC-ER cables.
Specifications:
| Depth (mm) | 67 |
| Height (mm) | 181 |
| Width (mm) | 223 |
| Net weight (g) | 1500 |
| Operating temperature | -40 °C to 55 °C |
| Storage temperature | -40 °C to 85 °C |
| Protection degree | IP65 |
| Rated voltage (IEC) | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Number of poles | 2 x 5 |
