4323220000 - Durable EPDM Foldable Seal, IP65 Rated, -40°C to 85°C (Pack of 10)
4323220000 - Durable EPDM Foldable Seal, IP65 Rated, -40°C to 85°C (Pack of 10)
SKU: SKU: 4323220000 Download PDF
- 4323220000 - Durable EPDM Foldable Seal, IP65 Rated, -40°C to 85°C (Pack of 10)
- 4323220000 - Durable EPDM Foldable Seal, IP65 Rated, -40°C to 85°C (Pack of 10)
Couldn't load pickup availability
Description:

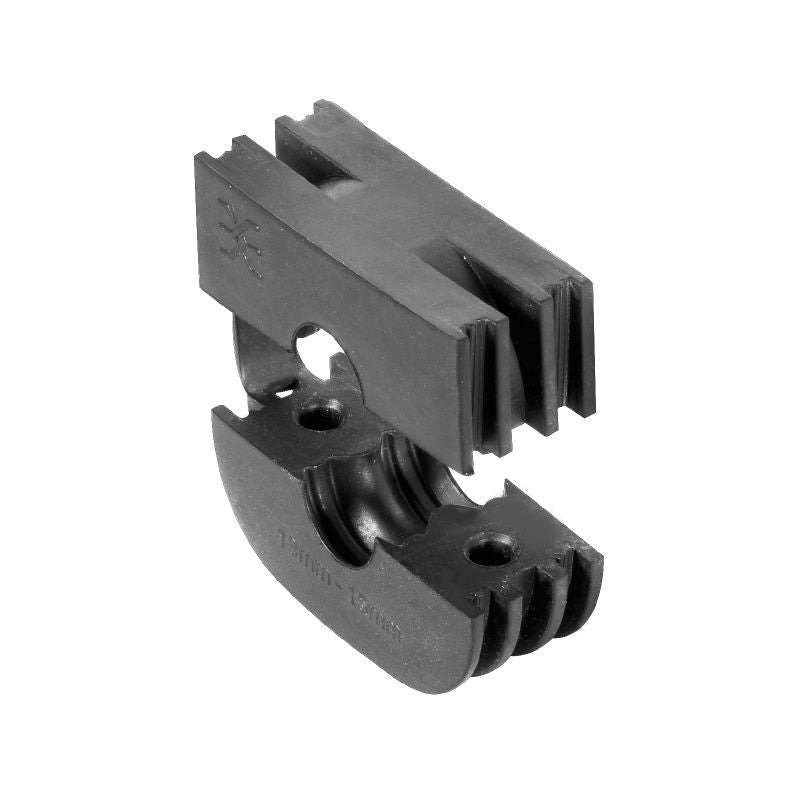

Ensure optimal protection with the RKDG D15 PT6, featuring a foldable seal and IP65 compliance when used with compatible housings This innovative design includes a sealing insert that delivers excellent environmental defense Crafted from durable EPDM material, this lightweight product weighs just 23 grams Moreover, it operates efficiently across a broad temperature range of -40 °C to 85 °C, making it a reliable choice for diverse conditions.
Features and Benefits:
•Foldable seal design.
•Compliant with IP65 when paired with suitable housing.
•Constructed from EPDM material.
•Environmental compliance with RoHS and REACH standards.
Specifications:
| Depth: | 18 mm (0.709 inch) |
| Height: | 33.8 mm (1.331 inch) |
| Width: | 46.7 mm (1.839 inch) |
| Storage temperature: | -40 °C...85 °C |
| Operating temperature: | -40 °C...85 °C |
| Protection degree: | IP65 with corresponding housing |
| Outer cable diameter, min.: | 13 mm |
| Outer cable diameter, max.: | 15 mm |
| UL 94 flammability rating: | HB |
