Description:

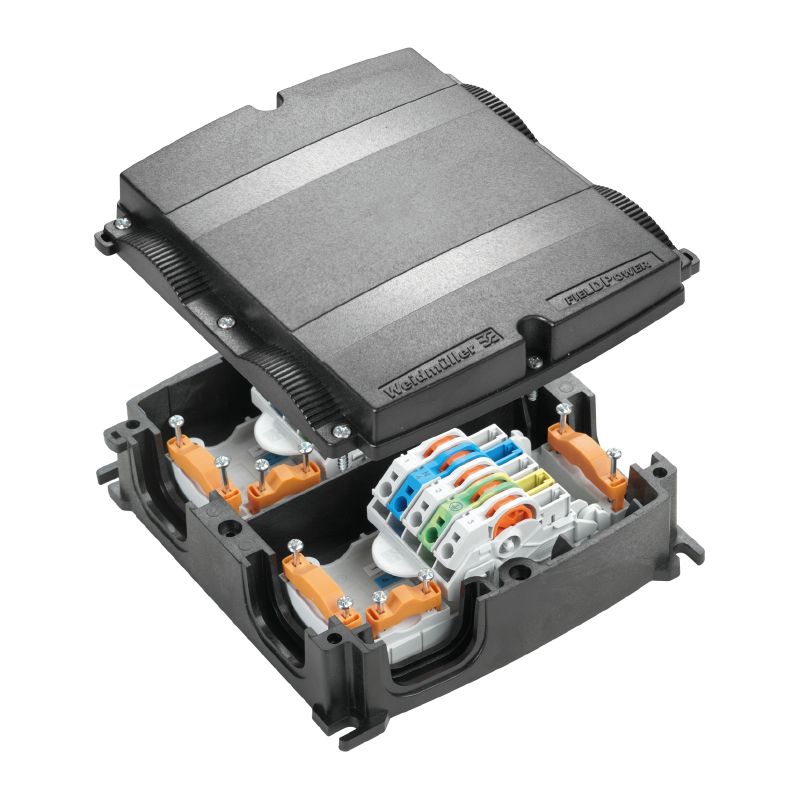

Introducing the FieldPower power distribution box, engineered specifically for AC applications With an impressive IP65 rating, this box is crafted from robust glass-fibre reinforced polycarbonate It employs both PUSH IN and insulation displacement connection (IDC) techniques, providing a versatile and reliable solution for your power distribution needs.
Features and Benefits:
•IP65 protection degree.
•Compliant with RoHS without exemptions.
•Distribution function with 2 x 5 poles.
•Suitable for multiple wire connection methods including PUSH IN and IDC.
•Lid screws included for installation.
Specifications:

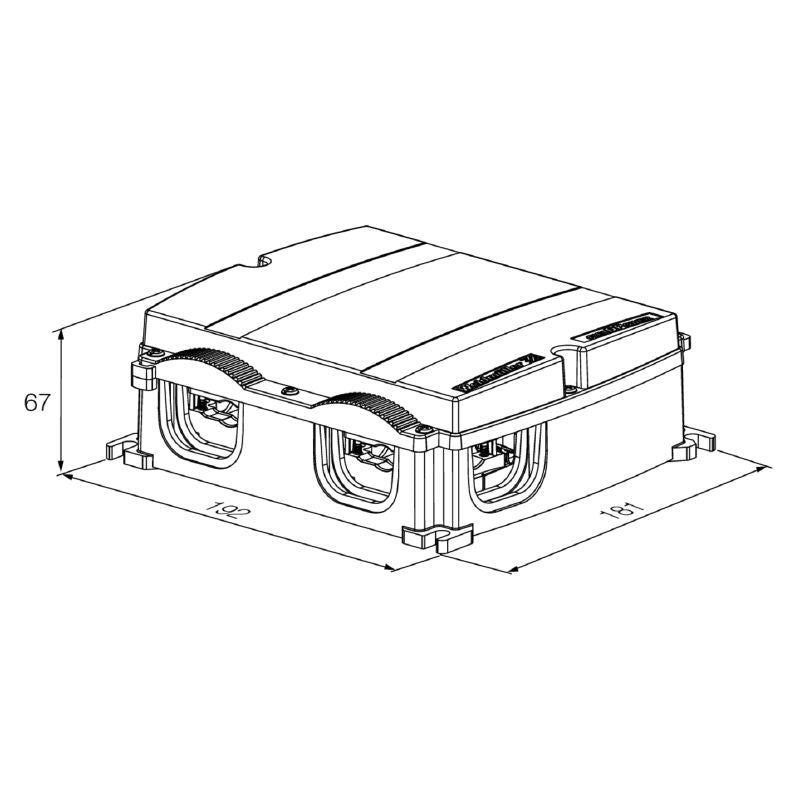

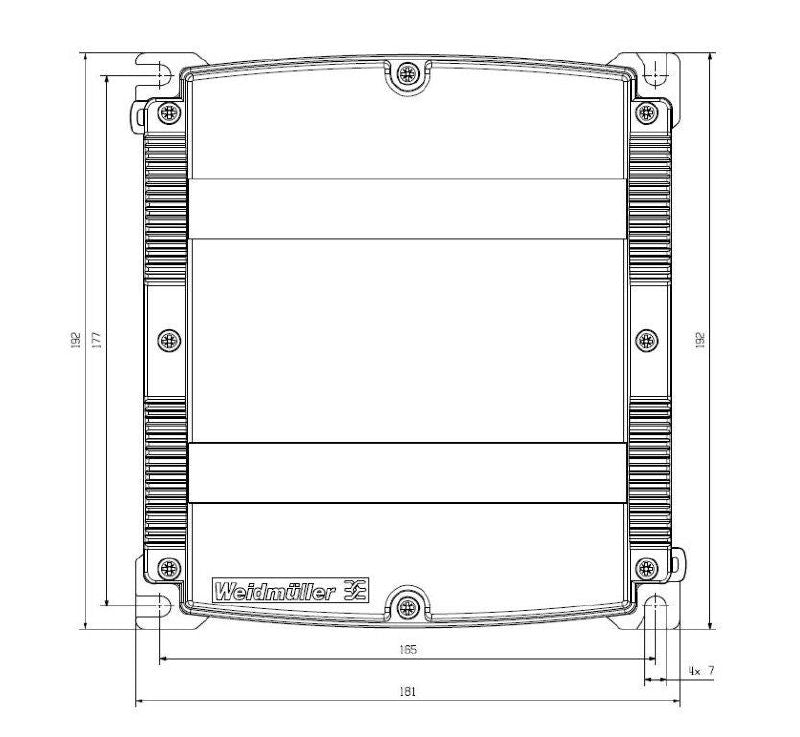

| Depth (mm) | 67 |
| Height (mm) | 181 |
| Width (mm) | 192 |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| Number of poles | 5 |
| Protection degree | IP65 |
| Rated voltage (IEC) | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Conductor connection cross-section, max. | 6 mm² |
| Conductor connection cross-section, min. | 0.5 mm² |
| UL Standard | UL 1059 |
| Flammability rating | 5VA |
