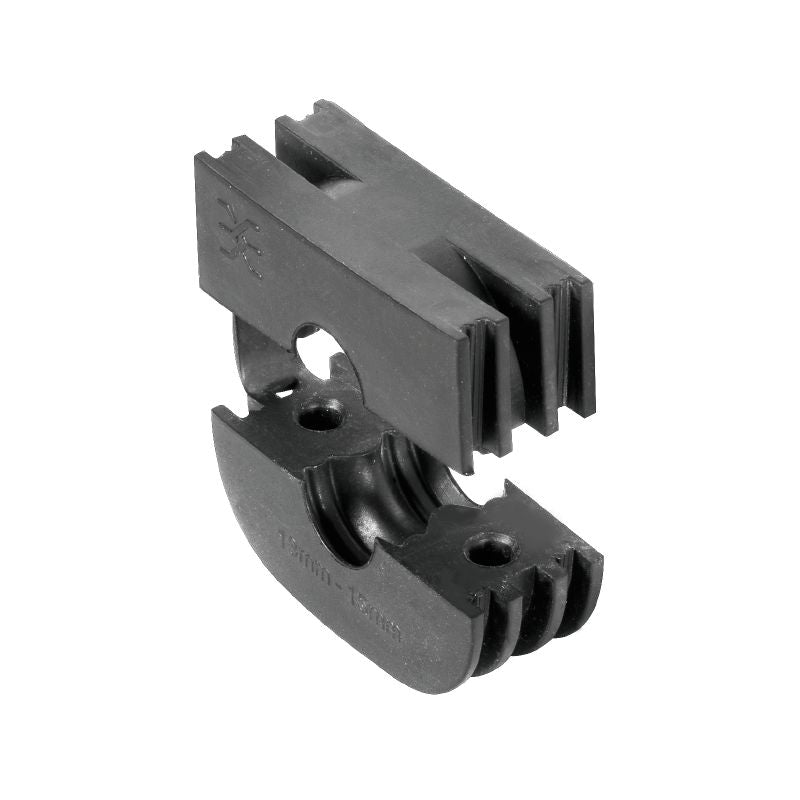

4323210000 - IP65 Rated Sealing Insert, 46.7mm Wide for Field Power (Pack of 10)
4323210000 - IP65 Rated Sealing Insert, 46.7mm Wide for Field Power (Pack of 10)
SKU: SKU: 4323210000 Download PDF
- 4323210000 - IP65 Rated Sealing Insert, 46.7mm Wide for Field Power (Pack of 10)
- 4323210000 - IP65 Rated Sealing Insert, 46.7mm Wide for Field Power (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the RKDG D11 PT6 sealing insert, expertly engineered for Field Power applications This robust component includes a foldable seal and boasts an IP65 protection rating, ensuring reliable performance in various environments Fully compliant with RoHS standards, it contains no SVHC substances exceeding 01 wt% With dimensions of 18 mm in depth, 338 mm in height, and 467 mm in width, this insert is designed for functionality and durability.
It can endure temperature ranges from -40 °C to 85 °C, making it versatile for both operation and storage.
Features and Benefits:
•Field Power sealing insert design.
•Foldable seal for enhanced functionality.
•IP65 rated for protection against dust and water.
•Compliant with RoHS standards.
•Sealing in Field Power applications.
Specifications:
| Depth | 18 mm |
| Height | 33.8 mm |
| Width | 46.7 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Basic material | EPDM |
| Design | Foldable seal |
| Protection degree | IP65 with corresponding housing |
| Outer cable diameter, min. | 9 mm |
| Outer cable diameter, max. | 11 mm |
| UL 94 flammability rating | HB |
| Line type | round |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
