Description:

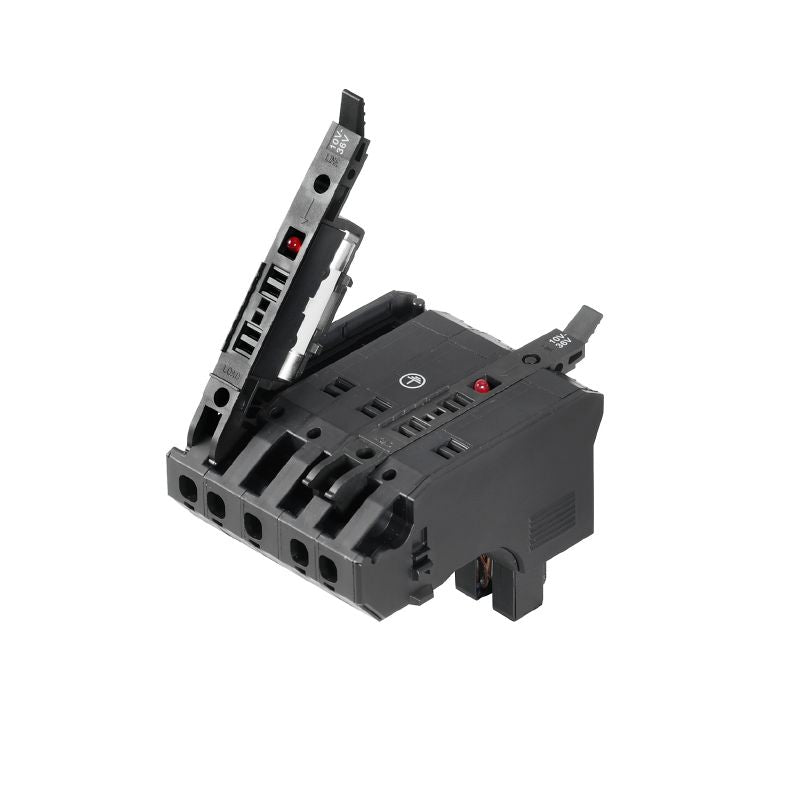

Discover the PTSI 4/LD 36V AC/DC power connector, a robust solution for your field applications This connector features a built-in fuse and boasts an IP20 rating for reliable protection Made from durable polyamide, it comes with a convenient 5-pole configuration and utilizes a PUSH IN connection method for effortless installation Perfect for those seeking reliability and ease of use in their electrical setups.
Features and Benefits:
•IP20 protection rating.
•Fuse functionality.
•Constructed from durable polyamide material.
•Can be coded for specific use cases.

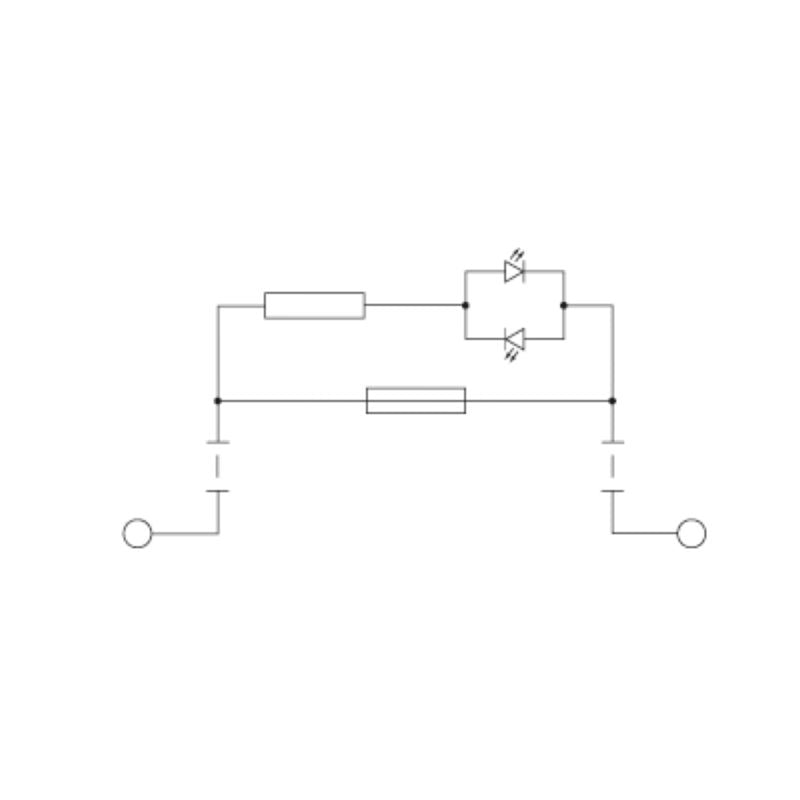

•Failure indicator equipped with a red LED.
Specifications:
| Depth | 55 mm |
| Height | 85 mm |
| Width | 57 mm |
| Net weight | 92 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 55 °C |
| Clamping capacity, PUSH IN connection | 0.5 mm² to 4 mm² |
| Stripping length | 12 mm |
| Rated voltage (IEC) | 36 V |
| Rated current (IEC) | 12 A |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 20 A |
| Conductor connection cross-section (AWG) | 16 to 12 |
| Insulating material | Polyamide |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Number of poles | 5 |
