Description:

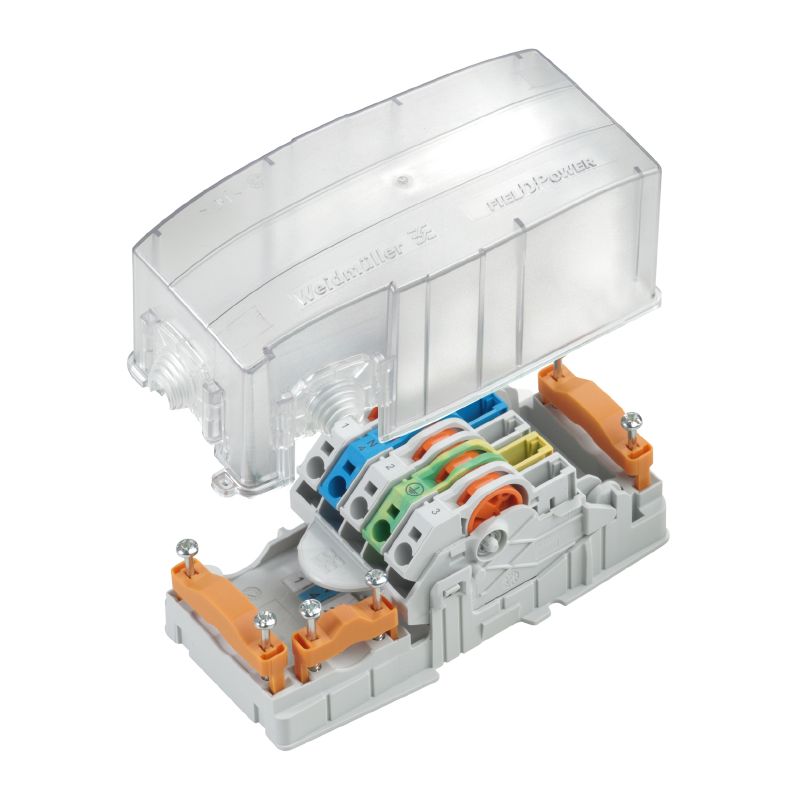

Introducing the POWERTERMINAL GK, a versatile FieldPower Box crafted for durability Made from robust polycarbonate, it features an insulation displacement connection for reliable performance This box operates efficiently in temperatures ranging from -40 °C to 55 °C and meets RoHS compliance standards With multiple connection options, it’s ideal for use in any application where a dependable power bus connection is essential.
Features and Benefits:
•Constructed from durable polycarbonate.
•IP30 protection degree.
•Accepts various conductor cross-sections up to 10 mm².
•Supports both IDC and PUSH IN wire connection methods.
•Designed for 3-phase AC voltage applications.
Specifications:

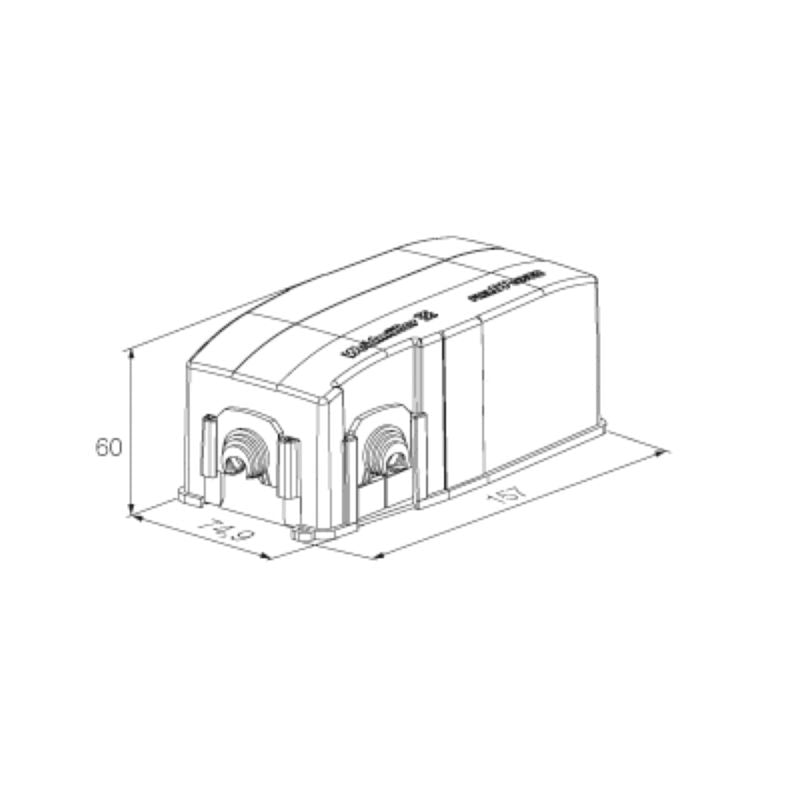

| Depth | 59 mm |
| Height | 157 mm |
| Width | 75 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 55 °C |
| Conductor connection cross-section (solid, max) | 6 mm² |
| Rated voltage (IEC) | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Rated voltage (UL) | 600 V |
| Conductor connection cross-section (AWG, max) | AWG 10 |
| Number of poles | 5 |
| Flammability rating | V-0 |
| Protection degree | IP30 |
