1206530000 - FieldPower Box, AC, IP20, Polycarbonate, IDC Connection
1206530000 - FieldPower Box, AC, IP20, Polycarbonate, IDC Connection
SKU: SKU: 1206530000 Download PDF
- 1206530000 - FieldPower Box, AC, IP20, Polycarbonate, IDC Connection
- 1206530000 - FieldPower Box, AC, IP20, Polycarbonate, IDC Connection
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

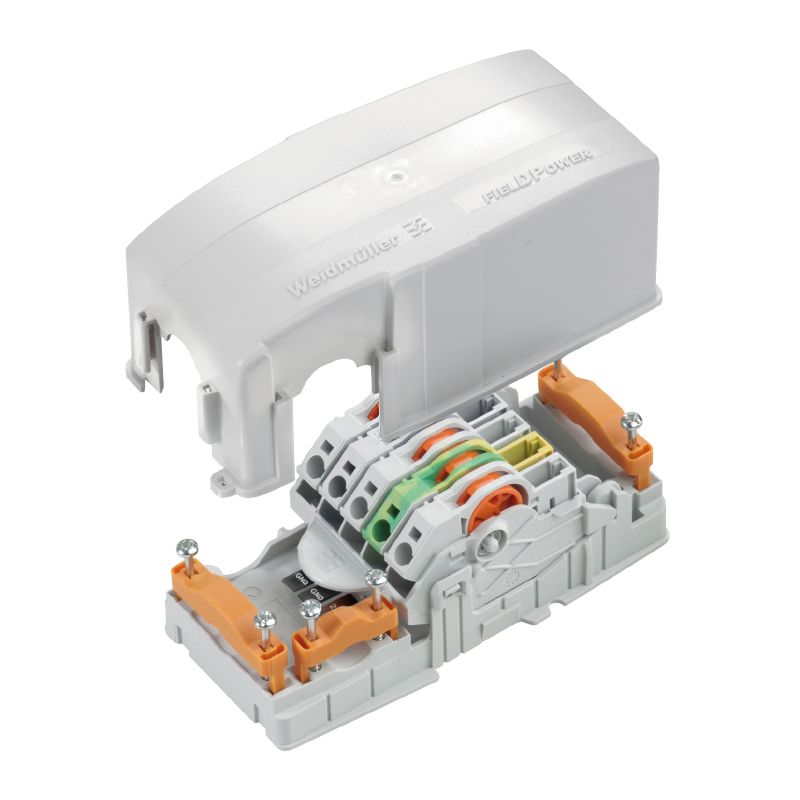

Introducing the FieldPower Box, AC, with an IP20 rating Crafted from durable polycarbonate, this box utilizes an innovative insulation displacement connection (IDC) with a convenient PUSH IN mechanism, making it ideal for effective distribution tasks.
Features and Benefits:
•Compliant with RoHS without exemption.
•Designed for a variety of conductor connection cross-sections and methods.
•Can be coded for specific applications.
•Suitable for screw mounting.

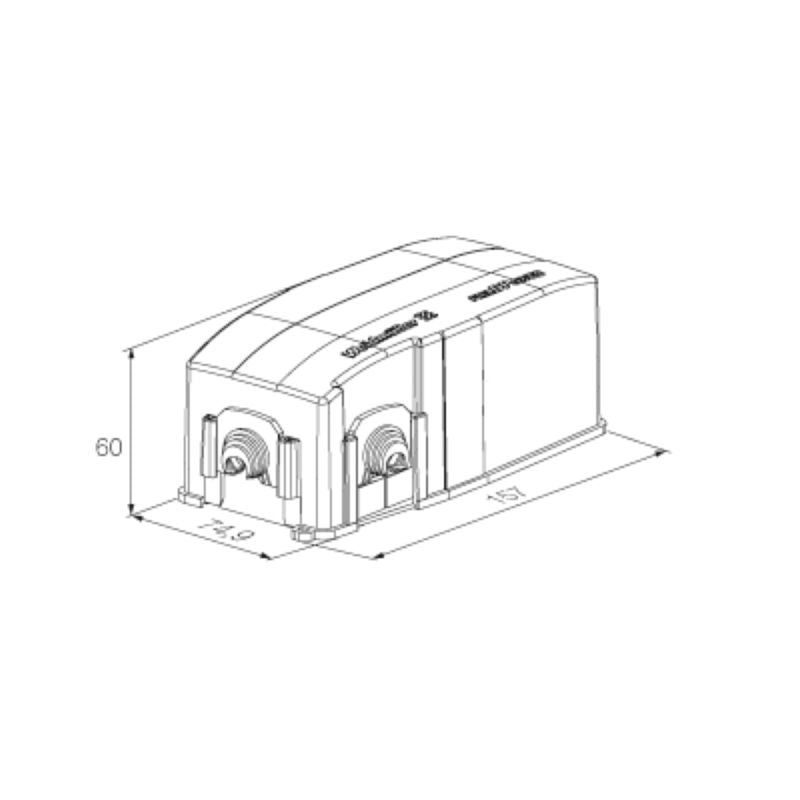

Specifications:
| Depth | 59 mm |
| Height | 159 mm |
| Width | 75 mm |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Protection degree | IP20 |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Conductor connection cross-section, solid, max | 6 mm² |
| Conductor connection cross-section, stranded, max | 6 mm² |
| Blade size of operating tool | 0.6 x 3.5 mm |
| Insulating material | Polycarbonate |
| Basic material | Polycarbonate |
