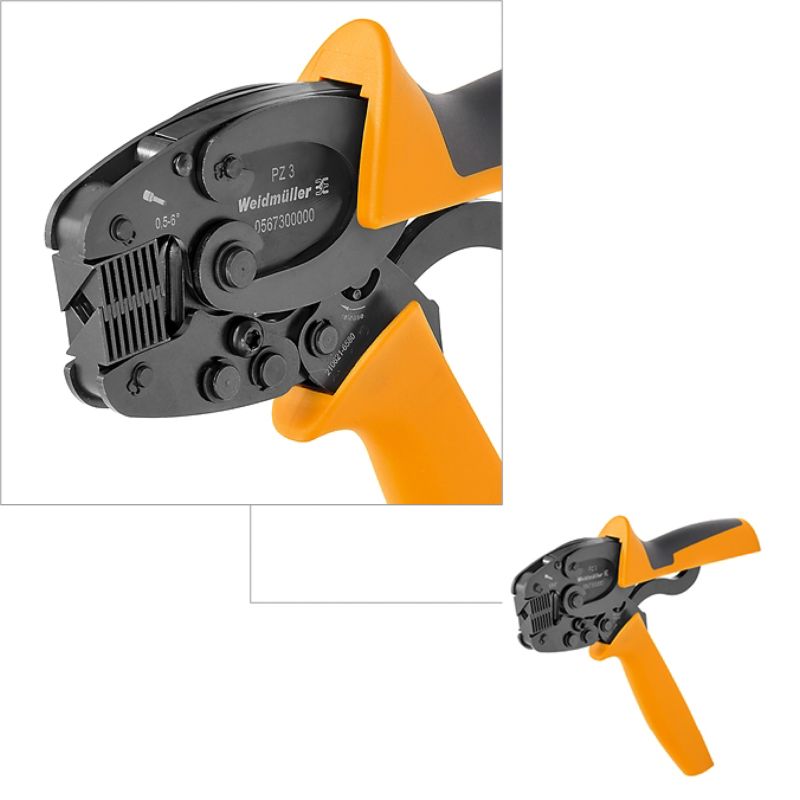

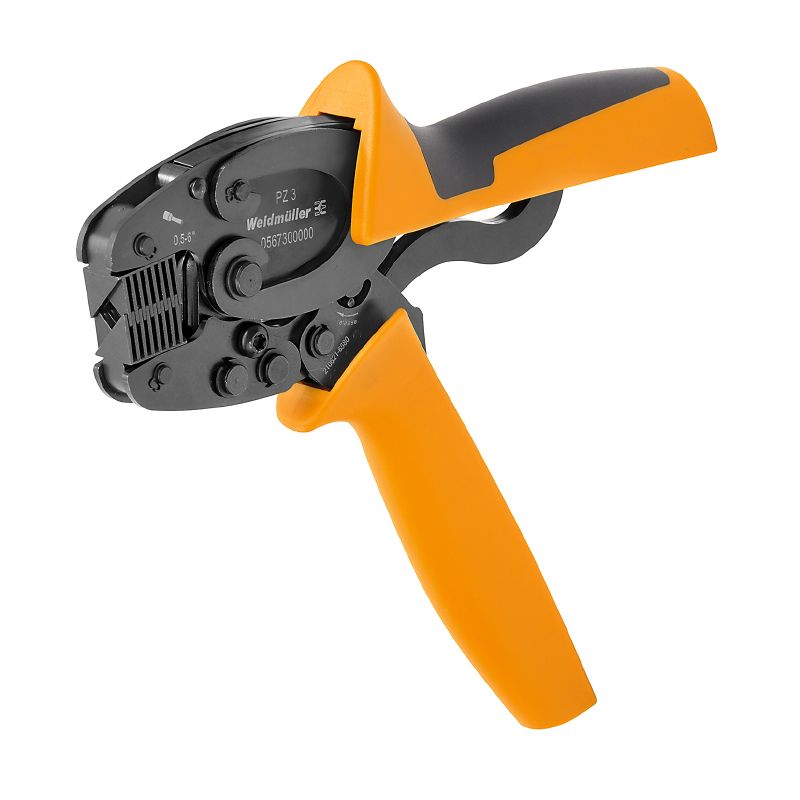

0567300000 - Mechanical Crimping Tool for 0.5mm² to 6mm² Ferrules

0567300000 - Mechanical Crimping Tool for 0.5mm² to 6mm² Ferrules

SKU: SKU: 0567300000

Variant:
  • 0567300000 - Mechanical Crimping Tool for 0.5mm² to 6mm² Ferrules
Regular price Now $302.11
Regular price BEFORE   $0.00 Sale price Now $302.11
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our mechanical crimping tool, expertly crafted for wire-end ferrules This sturdy tool is perfect for wire conductors with cross-sections ranging from 05 mm² to 6 mm² It features a square crimp profile and operates using a mechanical mechanism, ensuring reliable performance without the need for interchangeable inserts Whether you're a professional or a DIY enthusiast, this tool delivers efficiency and precision every time.

Features and Benefits:

    •Not affected by RoHS compliance.

    •Holds wire end ferrules with or without plastic collars.

    •Designed for wire-end ferrules specifically.

Specifications:

 Conductor cross-section, max. AWG AWG 10
 Conductor cross-section, min. AWG AWG 21
 Crimping range, max. 6 mm²
 Crimping range, min. 0.5 mm²
 Drive mechanical
 Wire end ferrules cross-section, max. 6 mm²
 Wire end ferrules cross-section, min. 0.5 mm²
 GTIN (EAN) 4008190052423
 Width 200 mm
 Width (inches) 7.874 inch
 Net weight 427.8 g
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
