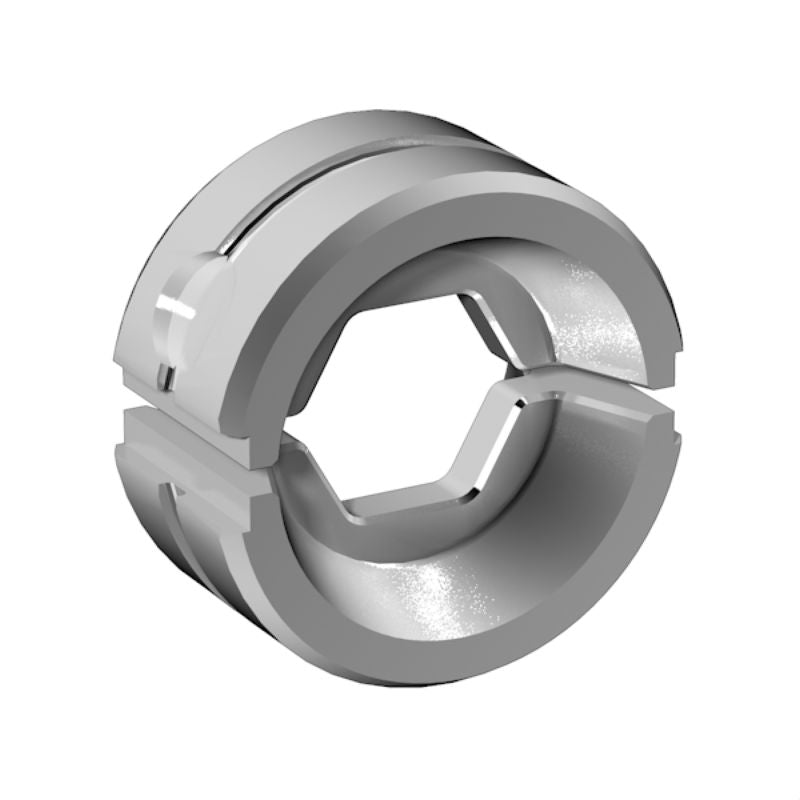

2505160000 - Hex Crimp Tool Insert for 10 mm² Cross-Section

2505160000 - Hex Crimp Tool Insert for 10 mm² Cross-Section

SKU: SKU: 2505160000 Download PDF

Variant:
  • 2505160000 - Hex Crimp Tool Insert for 10 mm² Cross-Section
Regular price Now $195.80
Regular price BEFORE   $0.00 Sale price Now $195.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ES EPG/HPG 60 HEX 10 crimping tool insert, expertly crafted for hexagonal crimps with a maximum capacity of 10 mm² This reliable tool adheres to RoHS standards, ensuring it’s free from any restricted substances above 01 weight percent in compliance with REACH regulations With a crimping width of 7 mm, it accommodates conductor cross-sections starting from 8 AWG Identified by the number 6, this insert is a vital asset for efficient crimping tasks.

Features and Benefits:

    •Crimping tool insert that ensures reliable hexagonal connections.

    •Compliant with RoHS standards.

    •No SVHC above 0.1 wt% according to REACH.

    •Crimping width of 7 mm suitable for various applications.

Specifications:

 Depth (mm) 22
 Height (mm) 42
 Width (mm) 42
 Net weight (g) 150
 Crimp range (max) 10 mm²
 Type of contact DIN 46235 cable lug
 Crimping type/profile Hexagonal crimp
 Crimp cross-section copper 10
 Conductor cross-section, max. AWG 8
 Conductor cross-section, min. AWG 8
 Identification number 6
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
