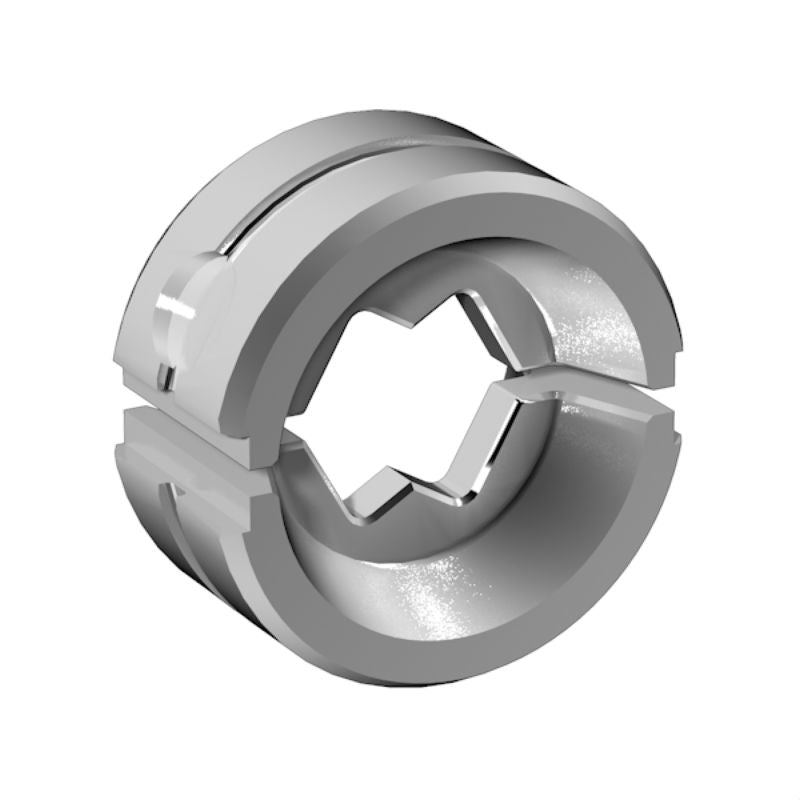

2469380000 - 42mm Crimping Tool Insert for 6mm² Cable Lugs

2469380000 - 42mm Crimping Tool Insert for 6mm² Cable Lugs

SKU: SKU: 2469380000 Download PDF

Variant:
  • 2469380000 - 42mm Crimping Tool Insert for 6mm² Cable Lugs
Regular price Now $195.80
Regular price BEFORE   $0.00 Sale price Now $195.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized crimping tool insert tailored for 6mm² cable lugs, utilizing the WM crimping technique This insert features precise dimensions, measuring 42 mm in height, 42 mm in width, and 22 mm in depth Fully compliant with RoHS standards, it guarantees no SVHC present above 01 wt% It accommodates a conductor cross-section of 10 AWG for both minimum and maximum requirements, making it a versatile choice.

Additionally, it is categorized under multiple ETIM and ECLASS classifications for enhanced specification accuracy, ensuring you have the right tool for the job.

Features and Benefits:

    •Compliant with RoHS regulations.

    •No SVHC present above 0.1 wt%.

    •Suitable for crimping 6 mm² cross-section.

    •Designed for Euro series cable lugs.

Specifications:

 Depth (mm) 22
 Height (mm) 42
 Width (mm) 42
 Net weight (g) 150
 Crimp cross-section copper 6
 Crimping width (mm) 7
 Conductor cross-section, max. AWG 10
 Conductor cross-section, min. AWG 10
 Crimping range, max. (mm²) 6
 Type of contact Euro series cable lug
 Crimping type/profile WM crimp
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
