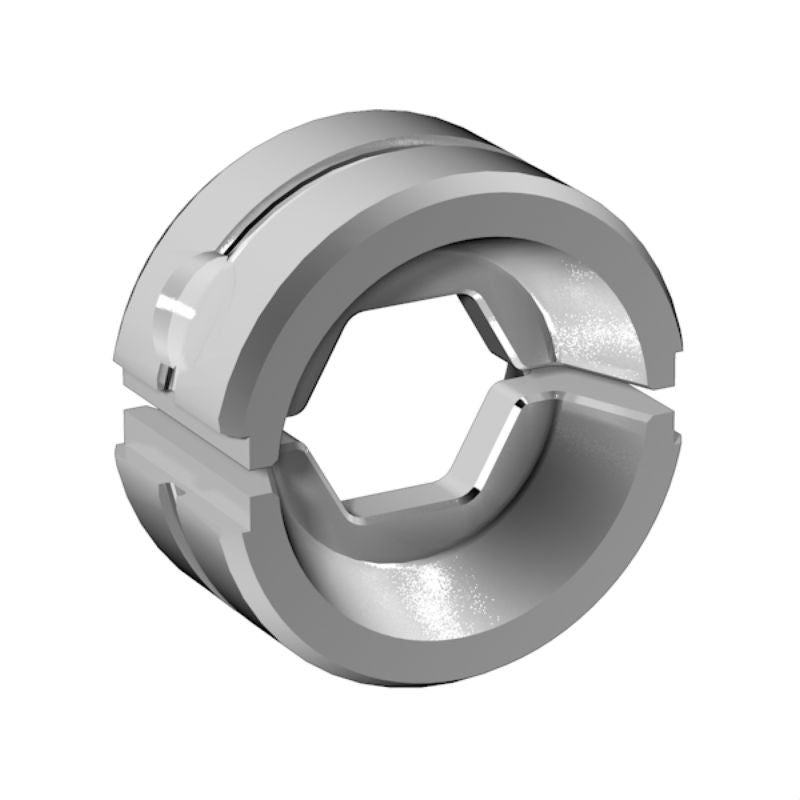

2505210000 - Compact Crimping Tool Insert for 70mm² Aluminum/Copper Hex Crimps
2505210000 - Compact Crimping Tool Insert for 70mm² Aluminum/Copper Hex Crimps
SKU: SKU: 2505210000 Download PDF
- 2505210000 - Compact Crimping Tool Insert for 70mm² Aluminum/Copper Hex Crimps
- 2505210000 - Compact Crimping Tool Insert for 70mm² Aluminum/Copper Hex Crimps
Couldn't load pickup availability
Description:
Introducing the specialized crimping tool insert, crafted for hexagonal crimping applications with a maximum cross-section capacity of 70mm² Built with durability in mind, this tool effectively handles crimping tasks for both aluminum and copper wires Its compact design boasts dimensions of 22 mm in depth, 42 mm in height, and 42 mm in width, allowing for easy handling and precise use Perfect for professionals requiring reliable performance in electrical work.
Features and Benefits:
•Crimping tool insert designed for 70mm² hexagonal crimp.
•Compliant with RoHS without exemption.
•Effective for crimping both aluminum and copper conductors.
•Compact dimensions for ease of handling.
Specifications:
| Crimp cross-section aluminium | 50 |
| Crimp cross-section copper | 70 |
| Crimping width | 5 mm |
| Identification number | 16 |
| Conductor cross-section, max. AWG | 2/0 |
| Conductor cross-section, min. AWG | 2/0 |
| Type of contact | DIN 46235 cable lug, DIN 46267 Part 1 cable lug |
| Cable lug cross section nominal | 70 mm² |
| Crimping type/profile | Hexagonal crimp |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ETIM 10.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
