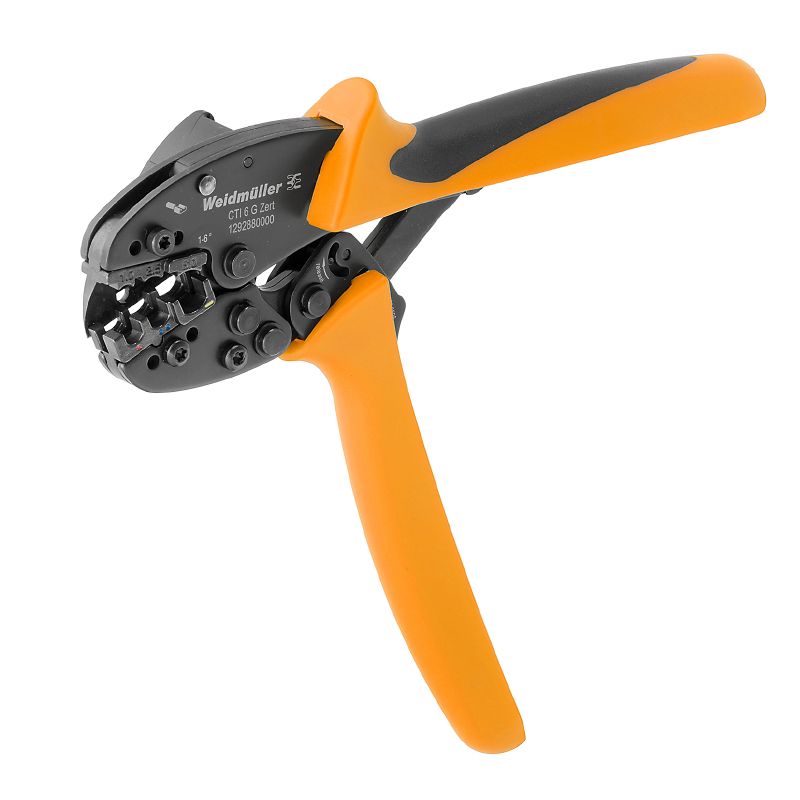

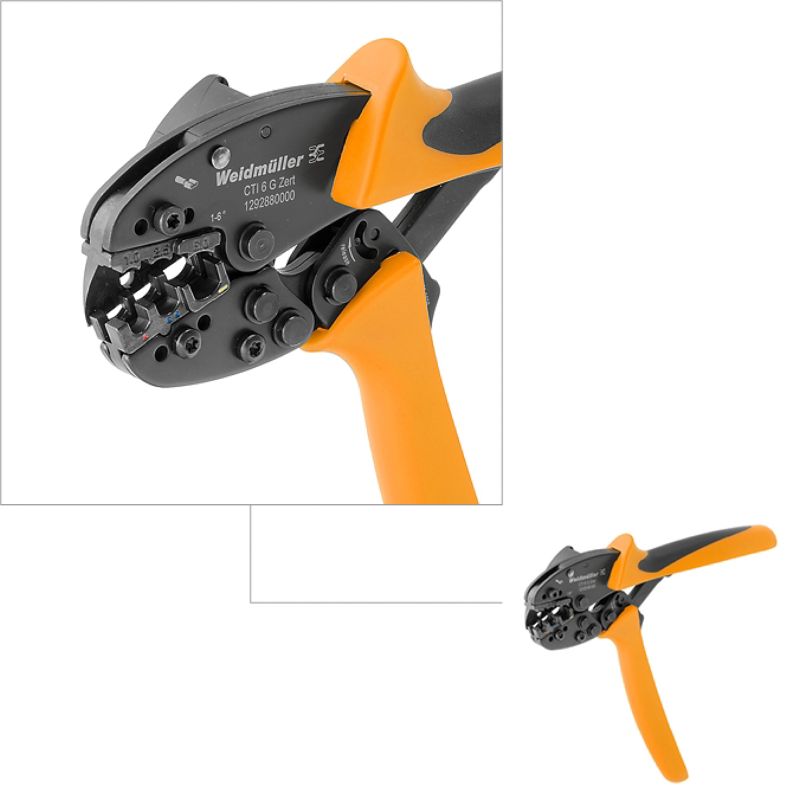

1292880000 - 0.5-6 mm² Crimping Tool for Insulated Connectors

1292880000 - 0.5-6 mm² Crimping Tool for Insulated Connectors

SKU: SKU: 1292880000   Download PDF

Select a Variant:
  • 1292880000 - 0.5-6 mm² Crimping Tool for Insulated Connectors
Qty:
Regular price Now $325.45   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $325.45 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

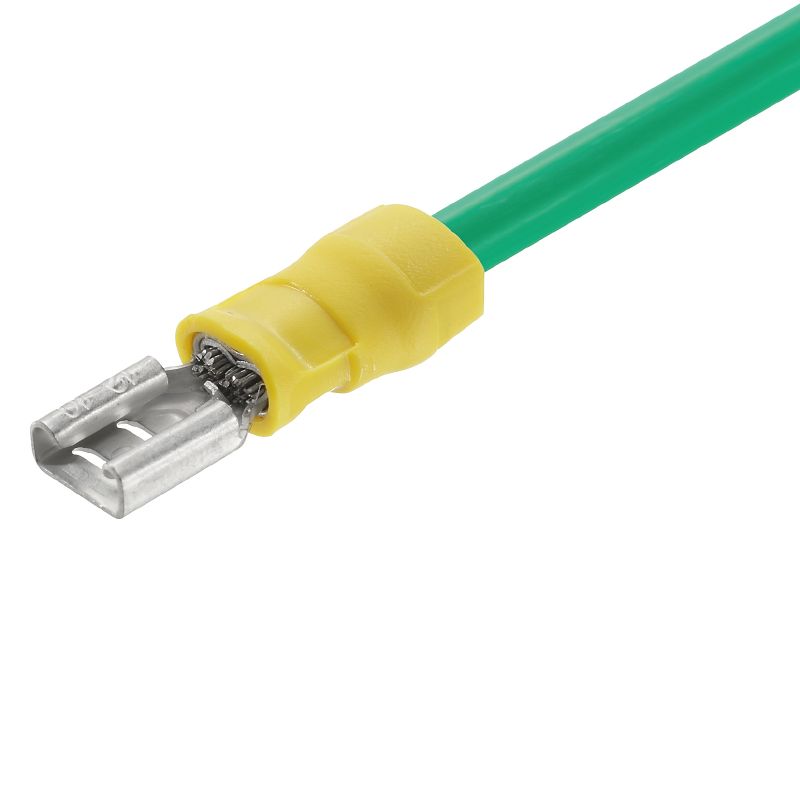

Introducing this versatile crimping tool, ideal for working with insulated connectors ranging from 05 to 6 mm² This mechanical tool features a design that enables both oval and parallel crimping, offering flexibility for various applications With no interchangeable inserts, it's straightforward and reliable for all your crimping requirements.

Features and Benefits:

    •Not suitable for solid conductors.

    •Insulation on the contact is pressed conically.

Specifications:

 Description of article Crimping tool for insulated connectors, 0.5-6 mm²
 Crimping range, max. 6 mm²
 Crimping range, min. 0.5 mm²
 Conductor cross-section, max. AWG 10
 Conductor cross-section, min. AWG 21
 Crimping type/profile Oval crimping, Parallel crimp
 Wire end ferrules cross-section, max. 6 mm²
 Crimping station characteristics [{'Crimping station number': '1', 'Conductor cross-section, min.': '0.5 mm²', 'Conductor cross-section, max.': '1.5 mm²', 'Conductor cross-section AWG, min.': '20', 'Conductor cross-section AWG, max.': '16', 'Colour of crimping station': 'Red'}, {'Crimping station number': '2', 'Conductor cross-section, min.': '1.5 mm²', 'Conductor cross-section, max.': '2.5 mm²', 'Conductor cross-section AWG, min.': '16', 'Conductor cross-section AWG, max.': '14', 'Colour of crimping station': 'Blue'}, {'Crimping station number': '3', 'Conductor cross-section, min.': '4 mm²', 'Conductor cross-section, max.': '6 mm²', 'Conductor cross-section AWG, min.': '12', 'Conductor cross-section AWG, max.': '10', 'Colour of crimping station': 'Yellow'}]
 RoHS Compliance Status Not affected
 REACH SVHC Lead 7439-92-1
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ECLASS 9.0 21-04-38-11
