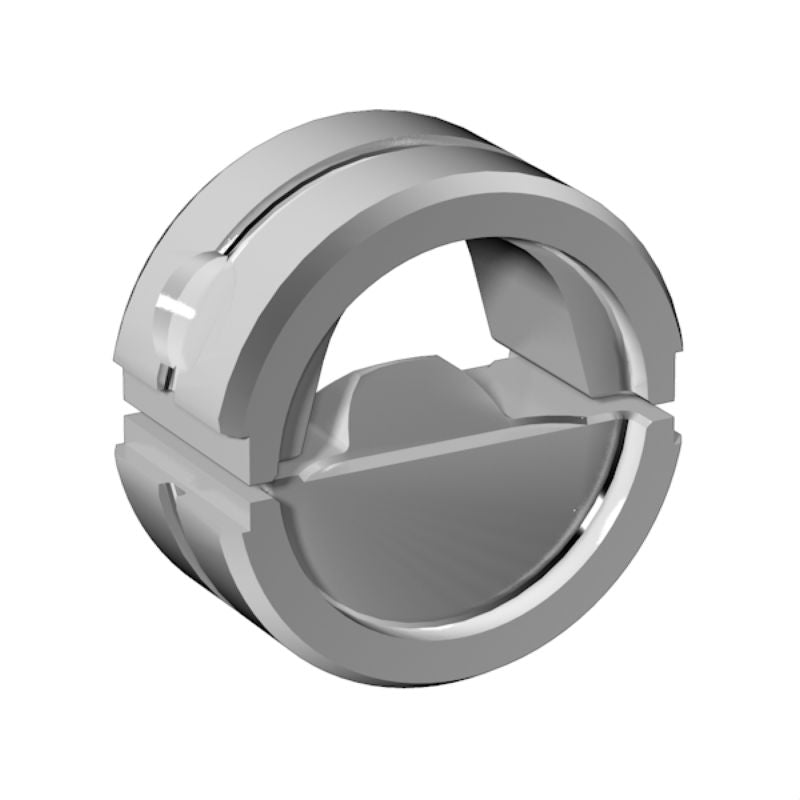

2505340000 - 70mm² Crimping Tool Insert, RoHS Compliant, 153g

2505340000 - 70mm² Crimping Tool Insert, RoHS Compliant, 153g

SKU: SKU: 2505340000 Download PDF

Variant:
  • 2505340000 - 70mm² Crimping Tool Insert, RoHS Compliant, 153g
Regular price Now $285.99
Regular price BEFORE   $0.00 Sale price Now $285.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a precision crimping tool insert specifically engineered for indent crimping, boasting a robust capacity of 70mm² Fully RoHS compliant, this product contains no substances of very high concern (SVHC) exceeding 01 wt% It is adept at handling conductor cross-sections up to 2/0 AWG, with a crimping capability reaching 70 mm² The dimensions of the insert measure 22mm in depth, 42mm in height, and 42mm in width, with a lightweight build at just 153g.

Ideal for your crimping needs, this tool combines quality and compliance for effective performance.

Features and Benefits:

    •Indent crimping design for secure connections.

    •Compliant with RoHS regulations.

    •Designed for DIN 46234 cable lugs.

Specifications:

 Depth: 22 mm
 Height: 42 mm
 Width: 42 mm
 Net weight: 153 g
 Crimp cross-section copper: 70
 Crimping width: 12 mm
 Conductor cross-section, max. AWG: 2/0
 Conductor cross-section, min. AWG: 2/0
 Crimping range, max.: 70 mm²
 Type of contact: DIN 46234 cable lug, DIN 46341 Part 1 cable lug, DIN 46230 cable lug
 Crimping type/profile: Indent crimp
 ETIM classification 6.0: EC001282
 ETIM classification 7.0: EC001282
 ETIM classification 8.0: EC001282
 ETIM classification 9.0: EC001282
 ETIM classification 10.0: EC001282
 ECLASS 9.0: 21-04-90-90
 ECLASS 9.1: 21-01-90-90
 ECLASS 10.0: 21-04-90-90
 ECLASS 11.0: 21-04-90-90
 ECLASS 12.0: 21-04-90-90
 ECLASS 13.0: 21-04-90-90
 ECLASS 14.0: 21-04-90-90
 ECLASS 15.0: 21-04-90-90
