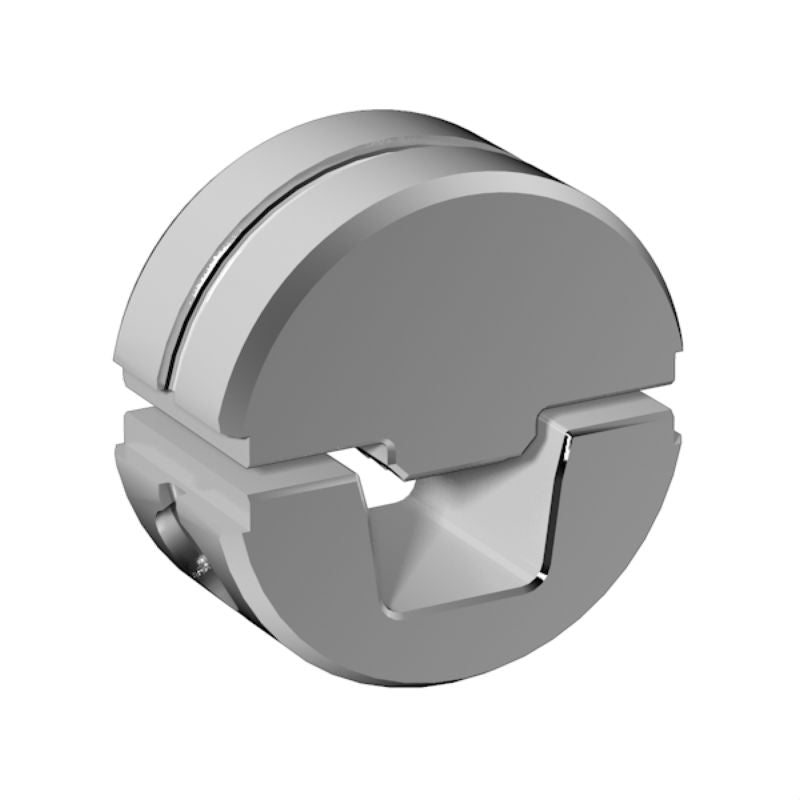

2577850000 - Compact Crimping Tool Insert for 70mm² Trapezoidal Connections

2577850000 - Compact Crimping Tool Insert for 70mm² Trapezoidal Connections

SKU: SKU: 2577850000 Download PDF

Variant:
  • 2577850000 - Compact Crimping Tool Insert for 70mm² Trapezoidal Connections
Regular price Now $244.72
Regular price BEFORE   $0.00 Sale price Now $244.72
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized crimping tool insert crafted for trapezoidal crimp connections, capable of handling wire sizes up to 70mm² This tool is specifically designed for use with wire-end ferrules and accommodates conductors as large as 2/0 AWG Its compact design measures 22mm in depth, 42mm in height, and 42mm in width, all while weighing just 25g Additionally, this crimping tool insert meets RoHS standards, ensuring it does not contain any substances of very high concern (SVHC) above the threshold of 0.

1 wt%.

Features and Benefits:

    •Crimping type/profile is trapezoidal.

    •Can crimp wire-end ferrules with or without plastic collars.

    •Weight is 25g.

    •Compliant with RoHS.

Specifications:

 Order No. 2577850000
 Crimp cross-section copper 70
 Crimping width 22 mm
 Crimping range, max. 70 mm²
 Conductor cross-section, max. AWG 2/0
 Conductor cross-section, min. AWG 2/0
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
