1502690000 - Hex Crimp Connector 95mm² for Copper & Aluminium Wires
1502690000 - Hex Crimp Connector 95mm² for Copper & Aluminium Wires
SKU: SKU: 1502690000 Download PDF
- 1502690000 - Hex Crimp Connector 95mm² for Copper & Aluminium Wires
- 1502690000 - Hex Crimp Connector 95mm² for Copper & Aluminium Wires
Couldn't load pickup availability
Description:

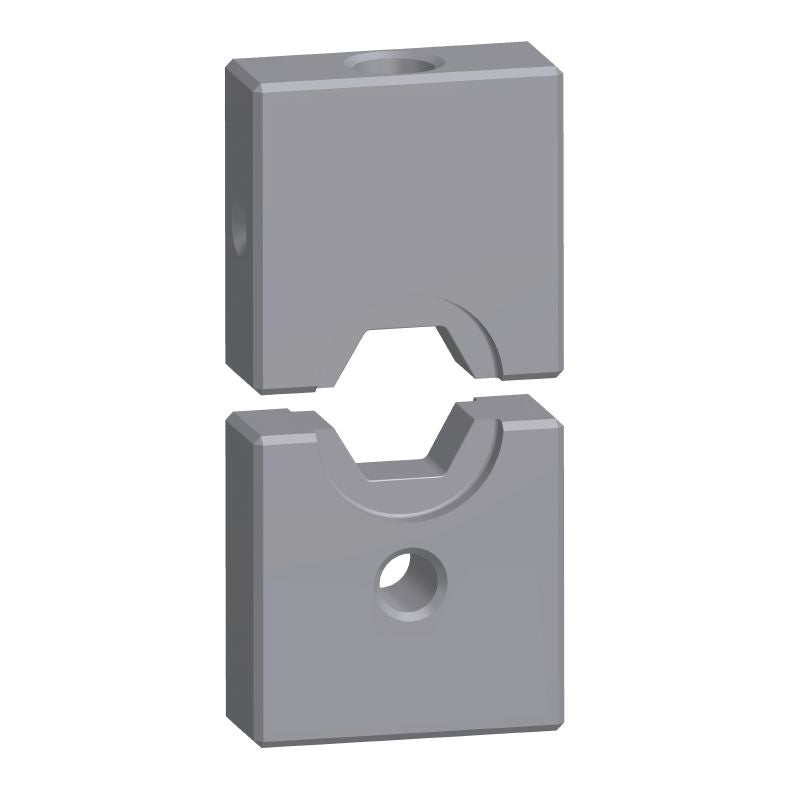

Introducing the ES APG 80 HEX 95, a durable hexagonal crimp connector specifically crafted for connecting aluminium and copper wires, featuring a 95mm² cross-section With a crimping width of 10mm, this connector is designed to meet RoHS standards without any exemptions It can accommodate conductor sizes ranging from 3 AWG to 0 AWG, ensuring versatility in various applications Its classification in multiple ETIM and ECLASS categories affirms its compatibility across different uses, making it a reliable choice for your wiring needs.
Features and Benefits:
•Hexagonal crimping type.
•Crimp cross-section for aluminium is 70mm².
•Crimp cross-section for copper is 95mm².
•Identification number of 18.
•Compliant with RoHS.
Specifications:
| Crimping width: | 10 mm |
| Conductor cross-section, max. AWG: | 3/0 |
| Conductor cross-section, min. AWG: | 3/0 |
| Crimping range, max.: | 95 mm² |
| ETIM 6.0: | EC001282 |
| ETIM 7.0: | EC001282 |
| ETIM 8.0: | EC001282 |
| ETIM 9.0: | EC001282 |
| ETIM 10.0: | EC001282 |
| ECLASS 9.0: | 21-04-90-90 |
| ECLASS 9.1: | 21-01-90-90 |
| ECLASS 10.0: | 21-04-90-90 |
| ECLASS 11.0: | 21-04-90-90 |
| ECLASS 12.0: | 21-04-90-90 |
| ECLASS 13.0: | 21-04-90-90 |
| ECLASS 14.0: | 21-04-90-90 |
| ECLASS 15.0: | 21-04-90-90 |
