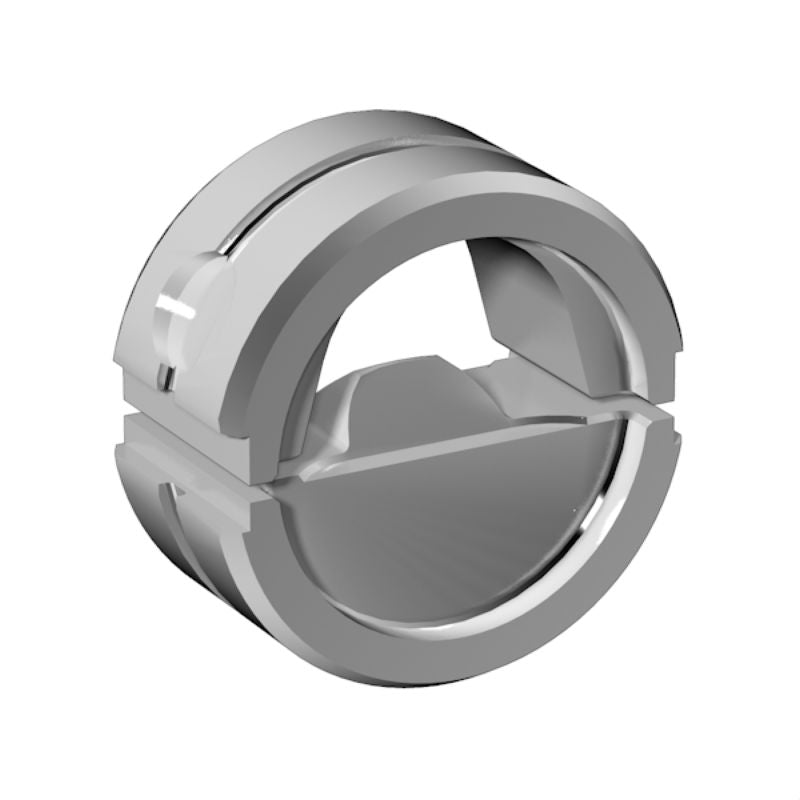

2505290000 - RoHS Compliant 10mm² Crimping Tool Insert for DIN Standards

2505290000 - RoHS Compliant 10mm² Crimping Tool Insert for DIN Standards

SKU: SKU: 2505290000 Download PDF

Variant:
  • 2505290000 - RoHS Compliant 10mm² Crimping Tool Insert for DIN Standards
Regular price Now $285.99
Regular price BEFORE   $0.00 Sale price Now $285.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ES EPG 60/HPG DIN 10 crimping tool insert, specifically crafted for indent crimping tasks with a cross-section capacity of 10mm² This tool meets rigorous environmental standards, being RoHS compliant and free from SVHC substances exceeding 01 wt% It allows for efficient crimping across various contact types in line with DIN regulations, making it a reliable choice for your crimping needs.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Crimping range maximum of 10 mm².

    •Compatible with various DIN cable lugs.

    •Detailed dimensions for precise application.

Specifications:

 Depth (mm) 22
 Height (mm) 42
 Width (mm) 42
 Net weight (g) 116.16
 Crimping width (mm) 7
 Conductor cross-section, max. AWG 8
 Conductor cross-section, min. AWG 8
 Crimping type/profile Indent crimp
 Crimp cross-section copper 10
 Type of contact DIN 46234 cable lug, DIN 46341 Part 1 cable lug, DIN 46230 cable lug
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
