2505190000 - 35mm² Crimping Tool Insert for Aluminium & Copper
2505190000 - 35mm² Crimping Tool Insert for Aluminium & Copper
SKU: SKU: 2505190000 Download PDF
- 2505190000 - 35mm² Crimping Tool Insert for Aluminium & Copper
- 2505190000 - 35mm² Crimping Tool Insert for Aluminium & Copper
Couldn't load pickup availability
Description:

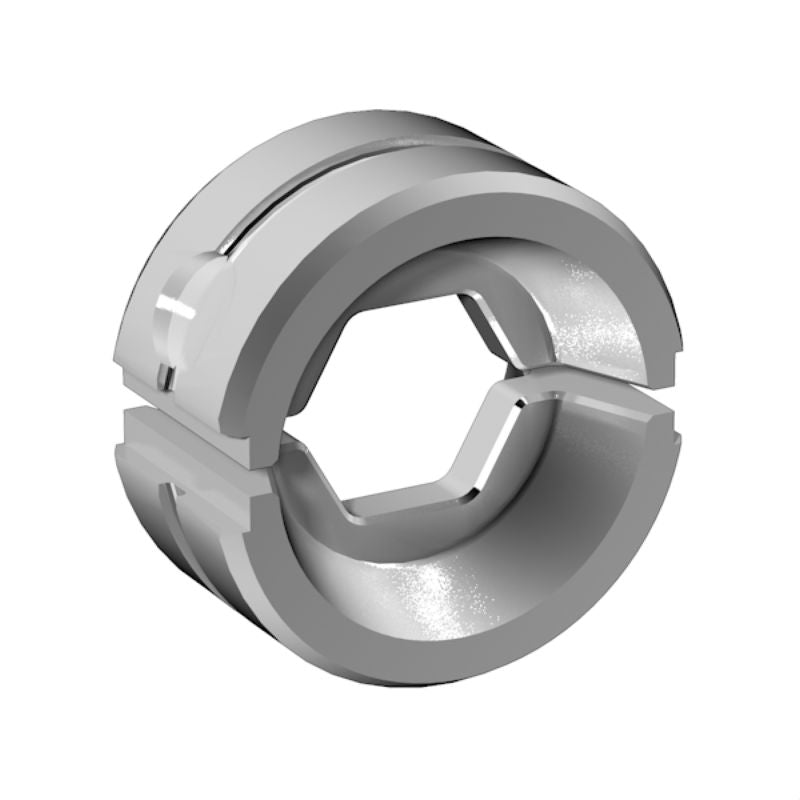

Introducing the specialized crimping tool insert, tailored for precise hexagonal crimping up to 35mm² This insert is perfectly suited for both aluminum conductors with cross-sections of 16 and 25mm², as well as copper at 35mm² It can accommodate a maximum crimping size of 35mm², providing versatility for various wiring tasks Designed in compliance with RoHS regulations, it contains no SVHC substances exceeding 0.
1 wt% The compact tool dimensions are 22 mm in depth, 42 mm in height, and 42 mm in width, and it weighs a manageable 140 grams, ensuring ease of use and portability.
Features and Benefits:
•RoHS compliant without exemption.
•Suitability for crimping both aluminium and copper conductors.
•Hexagonal crimp type for effective crimping.
Specifications:
| Crimp cross-section aluminium | 16+25 |
| Crimp cross-section copper | 35 |
| Crimping width | 5 mm |
| Identification number | 12 |
| Conductor cross-section, max. AWG | 2 |
| Conductor cross-section, min. AWG | 2 |
| Crimping range, max. | 35 mm² |
| Type of contact | DIN 46235 cable lug, DIN 46267 Part 1 cable lug |
| Cable lug cross section nominal | 35 mm² |
| Crimping type/profile | Hexagonal crimp |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ETIM 10.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
