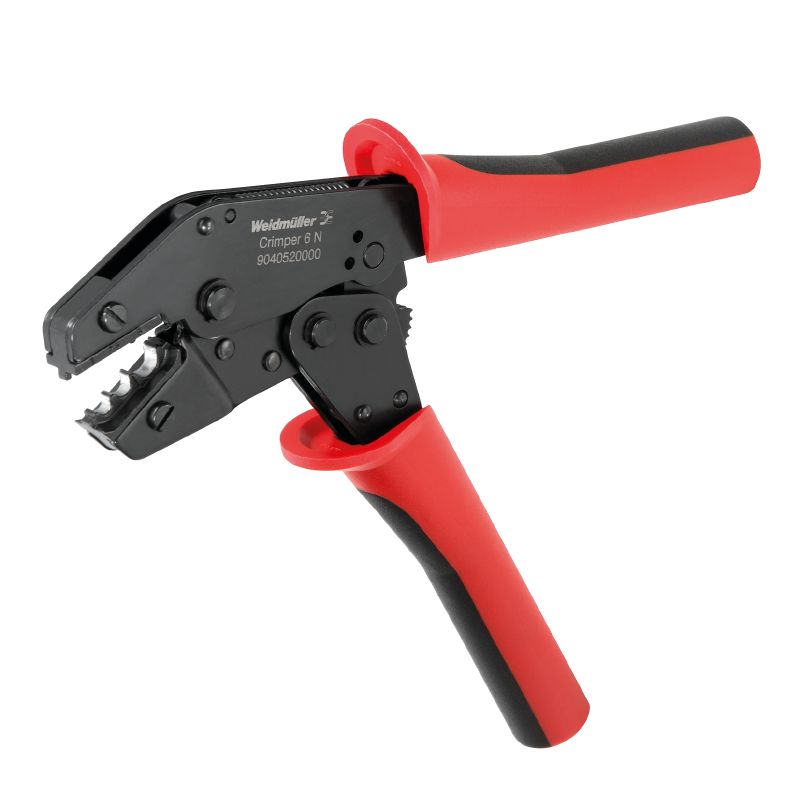

9040520000 - Crimping Tool for 0.25-6 mm² Non-Insulated Connectors

9040520000 - Crimping Tool for 0.25-6 mm² Non-Insulated Connectors

SKU: SKU: 9040520000 Download PDF

Variant:
  • 9040520000 - Crimping Tool for 0.25-6 mm² Non-Insulated Connectors
Regular price Now $114.80
Regular price BEFORE   $0.00 Sale price Now $114.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Effortlessly crimp non-insulated connectors with this specialized crimping tool, suitable for conductor cross-sections between 025 mm² to 6 mm² Its solid mechanical design eliminates the need for interchangeable inserts, making it straightforward and efficient Capable of crimping from a minimum of 05 mm² up to a maximum of 6 mm², this tool uses a trapezoidal crimp style for secure connections with wire end ferrules of the same maximum size.

Perfect for tackling a variety of electrical tasks with ease.

Features and Benefits:

    •Mechanical design without interchangeable inserts.

    •Trapezoidal crimp type for reliable connections.

    •Handles non-insulated connectors effectively.

Specifications:

 Depth 30 mm
 Height 78 mm
 Width 200 mm
 Net weight 378.8 g
 Conductor cross-section, max. AWG AWG 10
 Conductor cross-section, min. AWG AWG 24
 Crimping range, max. 6 mm²
 Crimping range, min. 0.5 mm²
 Type of contact Uninsulated connection
 Wire end ferrules cross-section, max. 6 mm²
 RoHS Compliance Status Not affected
 REACH SVHC Lead 7439-92-1
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
