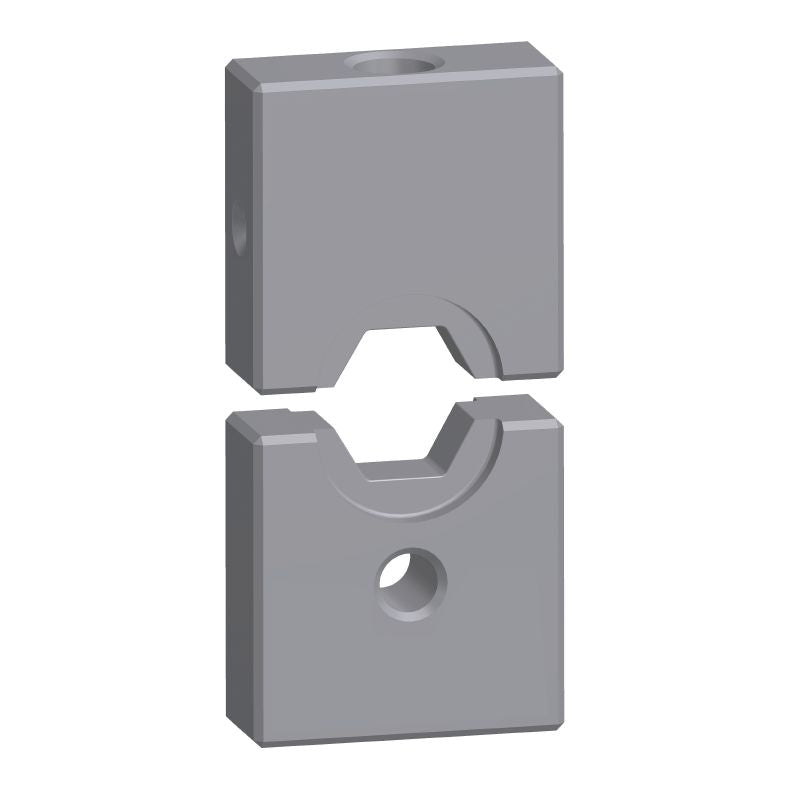

1502670000 - 12mm Hexagonal Crimp Connector for 35mm² Aluminum & 50mm² Copper
1502670000 - 12mm Hexagonal Crimp Connector for 35mm² Aluminum & 50mm² Copper
SKU: SKU: 1502670000 Download PDF
- 1502670000 - 12mm Hexagonal Crimp Connector for 35mm² Aluminum & 50mm² Copper
- 1502670000 - 12mm Hexagonal Crimp Connector for 35mm² Aluminum & 50mm² Copper
Couldn't load pickup availability
Description:
Introducing the ES APG 80 HEX 50, a meticulously designed hexagonal crimp connector that promises reliable performance in various applications It accommodates a crimp cross-section suitable for aluminum wires up to 35mm² and copper wires up to 50mm² With a crimping width of 12mm, this tool ensures efficient operation Additionally, it adheres to RoHS standards without any exemptions, containing no harmful substances exceeding 0.
1 weight percent Perfect for professionals seeking safety and reliability.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC above 0.1 wt%.
•Hexagonal crimp type for improved connection.
•Cables that fit within the specified crimping range.
Specifications:
| Crimp cross-section aluminium | 35 |
| Crimp cross-section copper | 50 |
| Crimping width | 12 mm |
| Identification number | 14 |
| Conductor cross-section, max. AWG | 1 |
| Conductor cross-section, min. AWG | 1 |
| Crimping range, max. | 50 mm² |
| Cable lug cross section nominal | 50 mm² |
| Crimping type/profile | Hexagonal crimp |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ETIM 10.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
