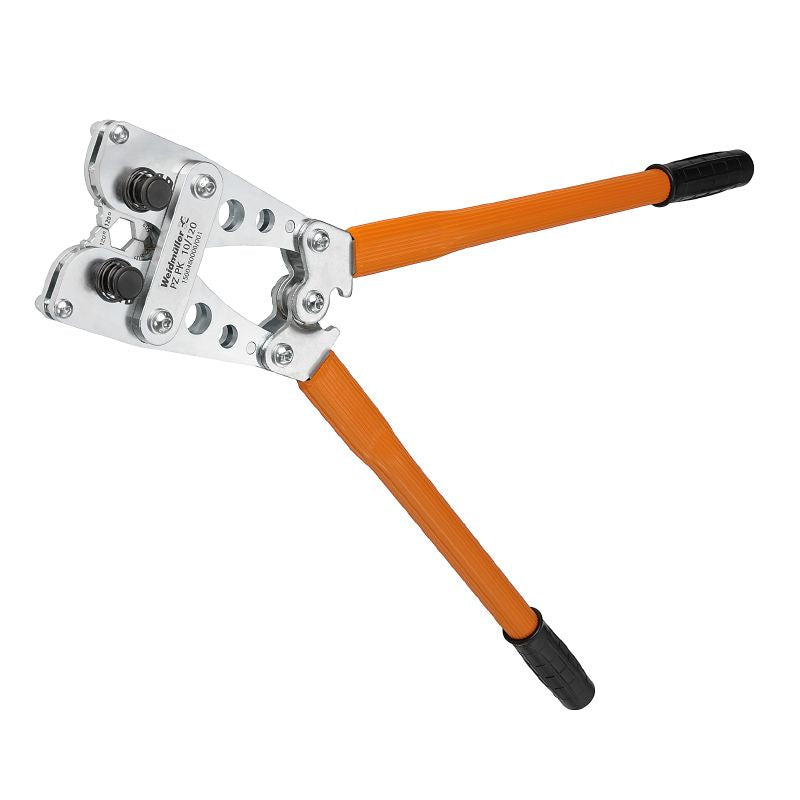

1500480000 - Hexagonal Crimp Tool for 10-120mm² Aluminum Wires
1500480000 - Hexagonal Crimp Tool for 10-120mm² Aluminum Wires
SKU: SKU: 1500480000 Download PDF
- 1500480000 - Hexagonal Crimp Tool for 10-120mm² Aluminum Wires
- 1500480000 - Hexagonal Crimp Tool for 10-120mm² Aluminum Wires
Couldn't load pickup availability
Description:
Introducing the PZ PK 10/120, engineered for precision crimping of aluminum wire cross-sections ranging from 10mm² to 120mm² using an efficient hexagonal crimping technique Weighing in at 3,800 grams, this tool offers a crimping width of 5mm, ensuring effective and reliable results It meets RoHS compliance and includes an REACH SVHC for Lead detection, making it a responsible choice for your crimping needs.
Features and Benefits:
•Mechanical design without interchangeable inserts.
•Crimping range allows for maximum conductor size of 120mm².
•Crimping range supports minimum conductor size of 10mm².
•Hexagonal crimp ensures secure connections.
•Compliant with environmental regulations.
Specifications:
| Crimp inserts | Crimp cross-section aluminum: 10 … 70 mm² |
| Crimping type/profile | Hexagonal crimp |
| Wire end ferrules cross-section, max | 120 mm² |
| Wire end ferrules cross-section, min | 10 mm² |
| Depth | 660 mm |
| Depth (inches) | 25.984 inch |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ETIM 10.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
| ECLASS 15.0 | 21-04-38-11 |
