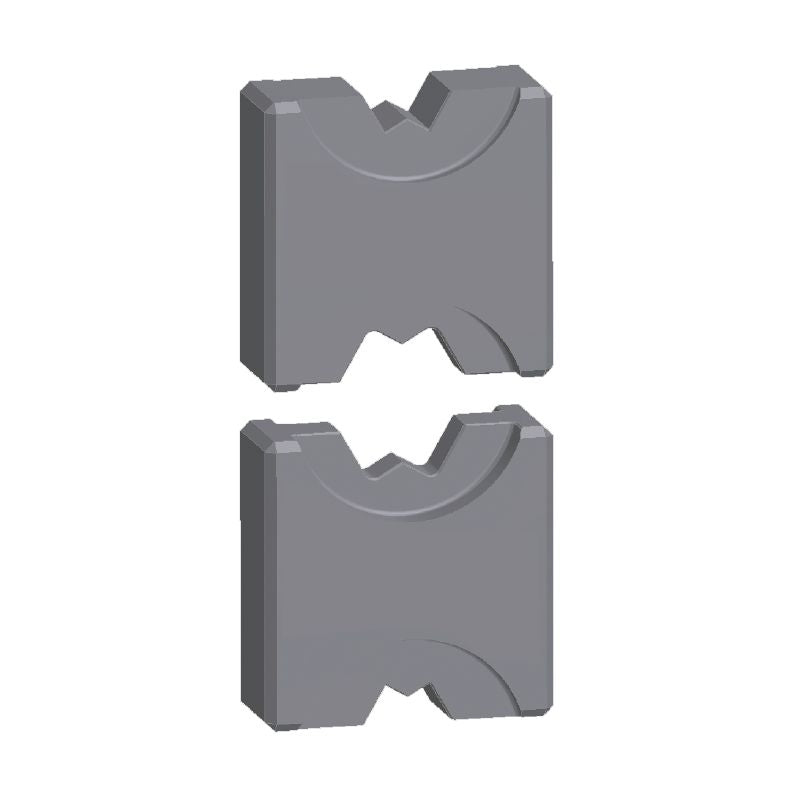

1500880000 - 50mm² WM Crimp for Versatile Applications

1500880000 - 50mm² WM Crimp for Versatile Applications

SKU: SKU: 1500880000 Download PDF

Variant:
  • 1500880000 - 50mm² WM Crimp for Versatile Applications
Regular price Now $201.91
Regular price BEFORE   $0.00 Sale price Now $201.91
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WM crimp, featuring a cross-section of 50mm², versatile for a wide range of applications This product is fully compliant with RoHS regulations without any exemptions and does not contain any REACH substances of very high concern in quantities exceeding 01 wt% It also provides specifications on crimping width and accommodates copper crimp cross-sections from 25 mm² to 50 mm², ensuring reliable performance for your needs.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •No REACH SVHC above 0.1 wt%.

Specifications:

 Depth: 12 mm
 Height: 60 mm
 Width: 30 mm
 Net weight: 140 g
 Crimp cross-section copper: 25/50
 Crimping width in mm: 12/10
 Conductor cross-section, max. AWG: 1
 Conductor cross-section, min. AWG: 4
 Crimping range, max: 50 mm²
 Crimping type/profile: WM crimp
 ETIM 6.0: EC001282
 ETIM 7.0: EC001282
 ETIM 8.0: EC001282
 ETIM 9.0: EC001282
 ETIM 10.0: EC001282
 ECLASS 9.0: 21-04-90-90
 ECLASS 9.1: 21-01-90-90
 ECLASS 10.0: 21-04-90-90
 ECLASS 11.0: 21-04-90-90
 ECLASS 12.0: 21-04-90-90
 ECLASS 13.0: 21-04-90-90
 ECLASS 14.0: 21-04-90-90
 ECLASS 15.0: 21-04-90-90
