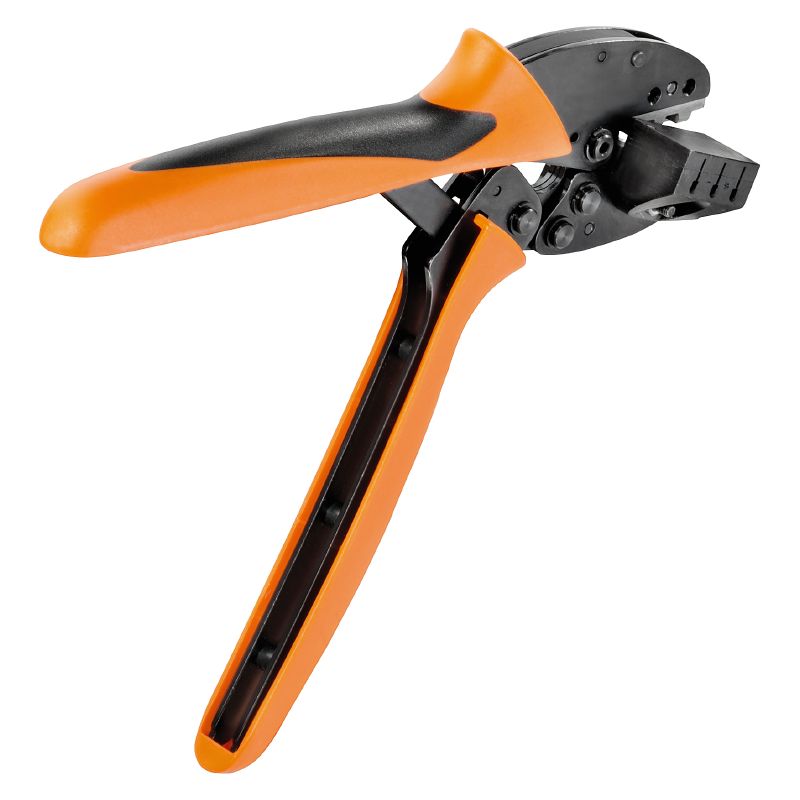

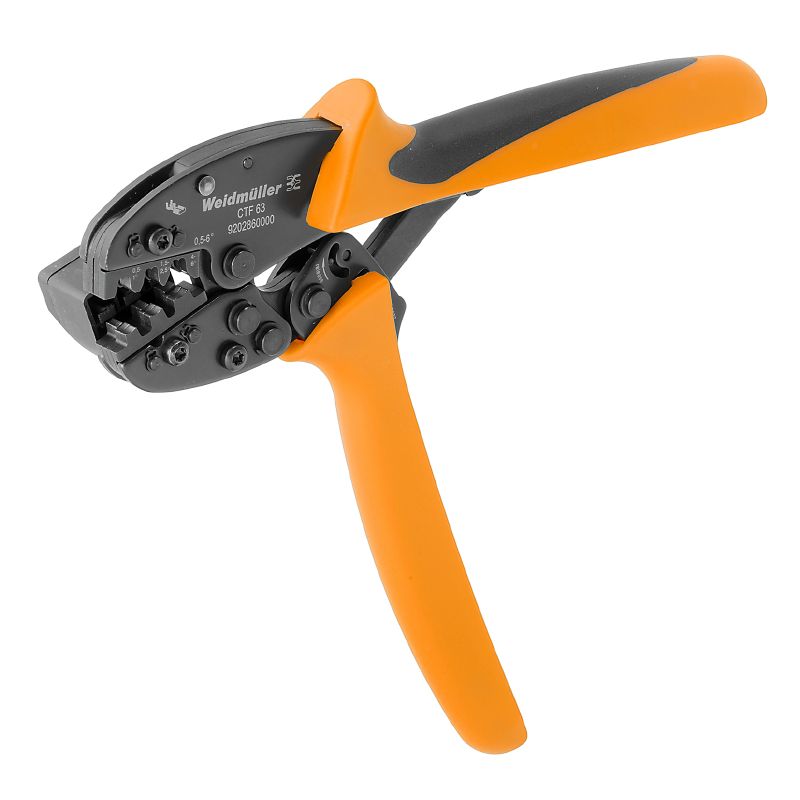

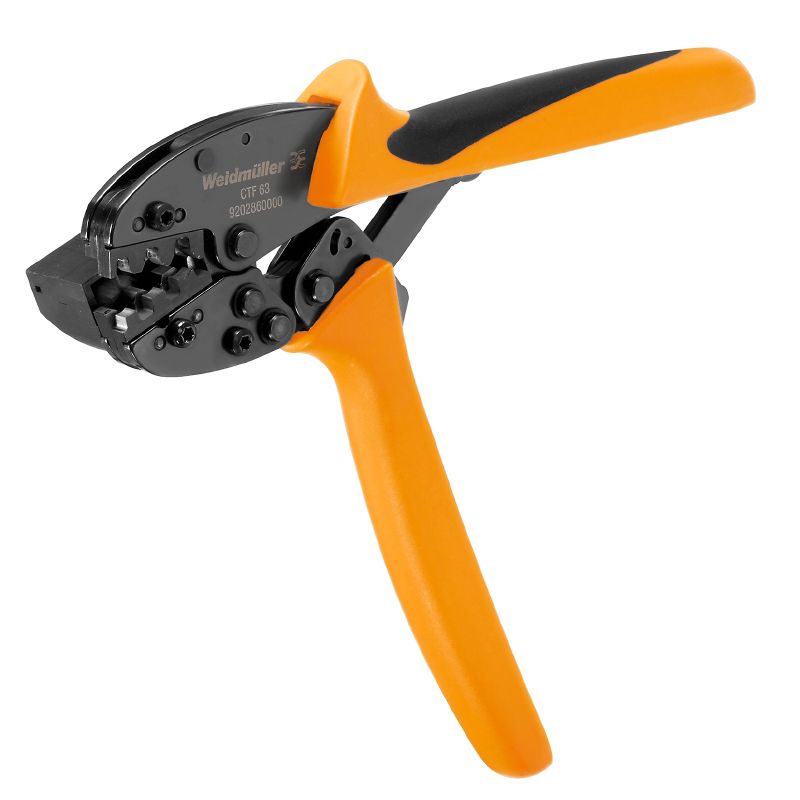

9202860000 - Mechanical Crimping Tool for 0.5-6mm² Contacts

9202860000 - Mechanical Crimping Tool for 0.5-6mm² Contacts

SKU: SKU: 9202860000 Download PDF

Variant:
  • 9202860000 - Mechanical Crimping Tool for 0.5-6mm² Contacts
Regular price Now $556.82
Regular price BEFORE   $0.00 Sale price Now $556.82
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CTF 63 crimping tool, expertly engineered for reliable contact pressing within a conductor cross-section of 05mm² to 6mm² This mechanical tool sports a B-Crimp profile and does not require any interchangeable inserts, making it user-friendly and efficient It is also compatible with flat-blade connectors and receptacles, specifically designed to fit connectors with a width of 63 mm Perfect for your crimping needs, this tool combines versatility with ease of use.

Features and Benefits:

    •Mechanical design without interchangeable inserts.

    •Suitability for crimping flat-blade connectors and receptacles.

    •User-friendly with a simple operation for crimping.

Specifications:

 Conductor cross-section, max. AWG AWG 10
 Conductor cross-section, min. AWG AWG 21
 Crimping range, max. 6 mm²
 Crimping range, min. 0.5 mm²
 Plug width 6.3 mm
 Crimping type/profile B-Crimp
 Wire end ferrules cross-section, max. 6 mm²
 Width 250 mm
 Net weight 674.2 g
 RoHS Compliance Status Not affected
 REACH SVHC Lead 7439-92-1
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
