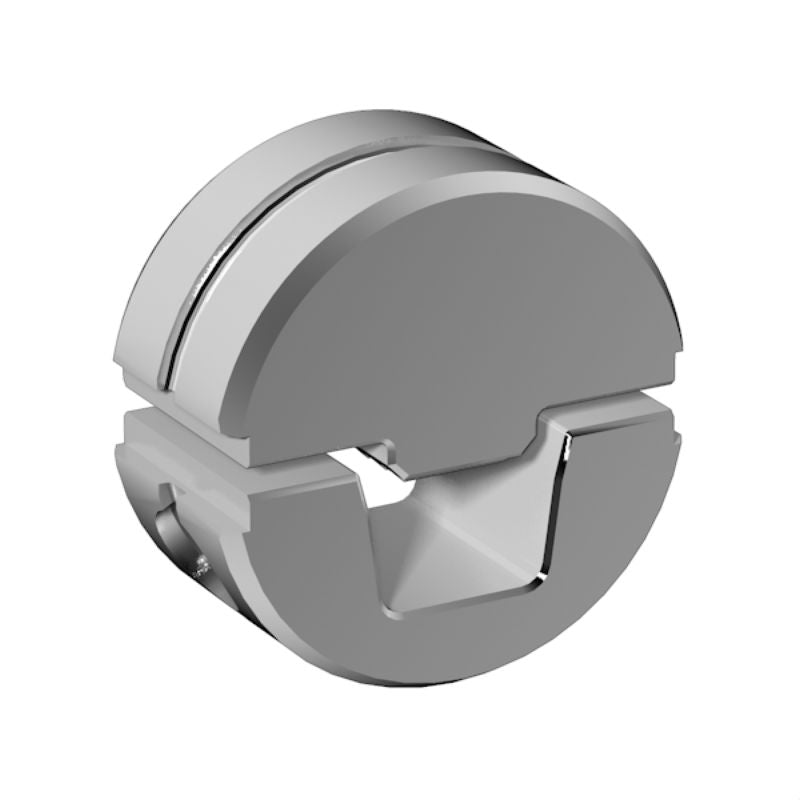

2577900000 - 150mm² Crimping Tool Insert, 22mm Depth, RoHS Compliant
2577900000 - 150mm² Crimping Tool Insert, 22mm Depth, RoHS Compliant
SKU: SKU: 2577900000 Download PDF
- 2577900000 - 150mm² Crimping Tool Insert, 22mm Depth, RoHS Compliant
- 2577900000 - 150mm² Crimping Tool Insert, 22mm Depth, RoHS Compliant
Couldn't load pickup availability
Description:
Introducing an essential crimping tool insert, perfect for trapezoidal crimping applications with a cross-sectional area of 150mm² Measuring 22mm in depth, 42mm in height, and 42mm in width, this compact tool weighs just 25 grams It adheres to RoHS standards without any exemptions and is free of substances of very high concern (SVHC) above 01 weight percent Experience reliability and compliance in your crimping tasks with this thoughtfully designed insert.
Features and Benefits:
•Crimping width of 22mm.
•Max crimping range of 150mm².
•Suitable for wire-end ferrules with/without plastic collars.
Specifications:
| Crimp cross-section copper | 150 |
| Conductor cross-section, max. AWG | 5/0 |
| Conductor cross-section, min. AWG | 5/0 |
| Crimping type/profile | Trapezoidal crimp |
| Depth | 22 mm |
| Height | 42 mm |
| Width | 42 mm |
| GTIN (EAN) | 4050118590661 |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ETIM 10.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
